Quick Details
-
Model Number:
-
LA-240
-
Model:
-

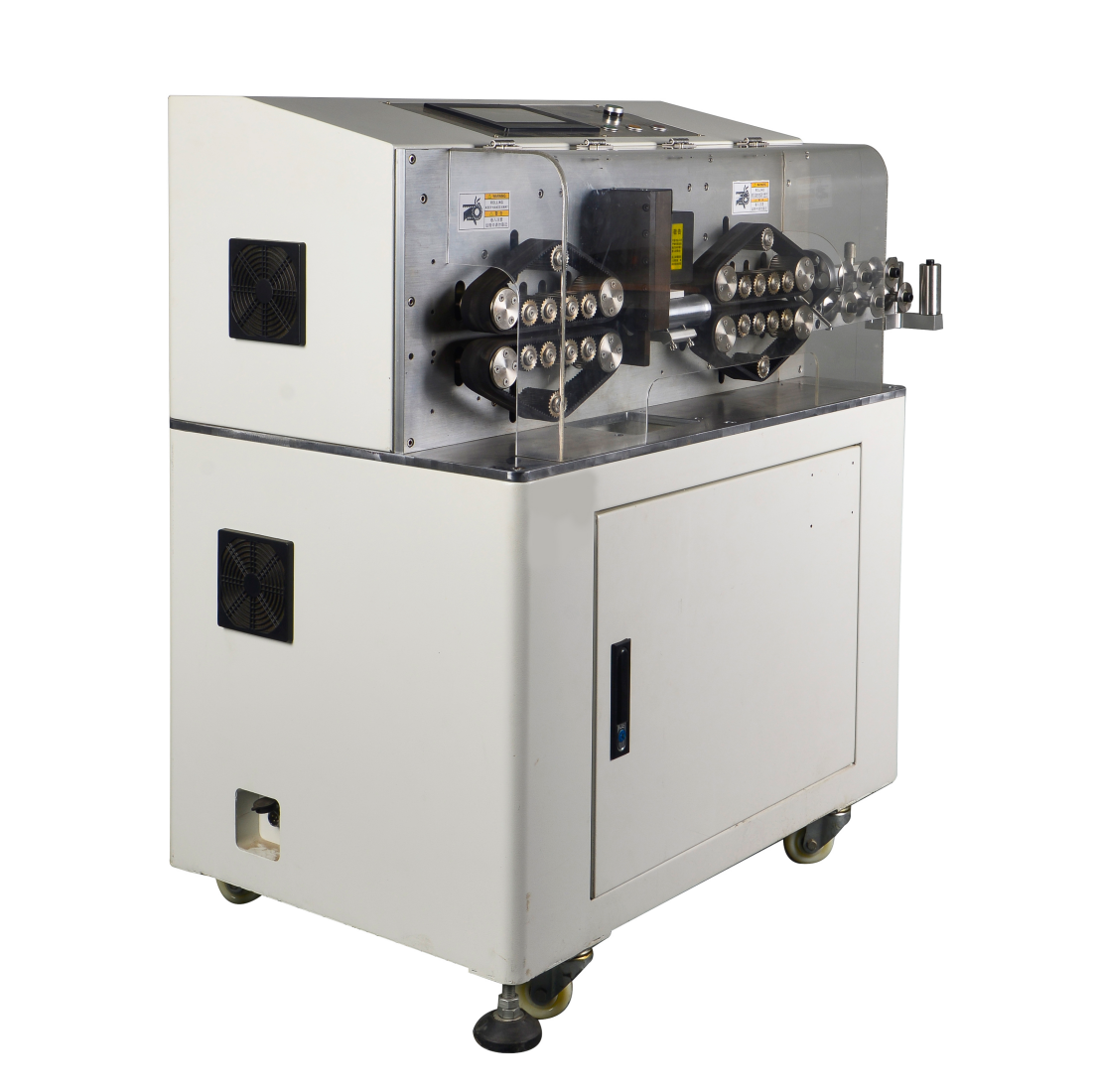

LA-240 tlarge square thick wire cutting stripping machine
-
Cutting length:
-
100MM-99999.9MM
-
Front end stripping length:
-
0.1-300MM
-
Rear end stripping length:
-
0.1-300MM
-
Conduit diameter:
-
Inner diameter 47mm,35mm,25mm,18mm,9mm
-
Same Wire Diameter:
-
6 -240 mm square cable wires and other harnesses.
-
Cutting tolerance:
-
<0.2%
-
stripping speed (PCS/H):
-
600PCS~1500pcs (Calculated within 200mm length.)
-
Blade material:
-
tungsten steel /White Steel
-
Speed:
-
1--10
Quick Details
-
Usage:
-
cable wire cutting peeling machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Link Asia
-
Model Number:
-
LA-240
-
Model:
-
LA-240 tlarge square thick wire cutting stripping machine
-
Cutting length:
-
100MM-99999.9MM
-
Front end stripping length:
-
0.1-300MM
-
Rear end stripping length:
-
0.1-300MM
-
Conduit diameter:
-
Inner diameter 47mm,35mm,25mm,18mm,9mm
-
Same Wire Diameter:
-
6 -240 mm square cable wires and other harnesses.
-
Cutting tolerance:
-
<0.2%
-
stripping speed (PCS/H):
-
600PCS~1500pcs (Calculated within 200mm length.)
-
Blade material:
-
tungsten steel /White Steel
-
Speed:
-
1--10
Details Images
Products Description
Features:
The 8 wheels to drives together,Use servo motor for drives ,guarantee operation of efficient better and quickest , On the basis of the original cable stripping machine more than 2 times more power. The production is common stripping machine of 2-3 times , labor-saving worker.Our company research and development is adopt speed high performance microprocessor, with advanced of Combination of motion control technology , The product is suitable for large power cable,power cable、sheathed linesx soft and hard cable to process . Process later of wiring harness .length is accordance, appearance perfect .Stripping is best effect .This machine is mainly for the power industry, electric control cabinet, battery box cable .can make the whole coil of wire according to the required length.stripping head is chopped peeled .thus greatly improving the efficiency of. Maximum line tangent peeling to 240.
|
Model
|
LA-150
|
LA-240
|
|
Working power
|
AC 220V 50/60HZ
|
AC 220V 50/60HZ
|
|
Cutting length
|
30MM-99999.9MM
|
100MM-99999.9MM
|
|
Front end stripping length
|
0.1-300MM
|
0.1-300MM
|
|
Rear end stripping length
|
0.1-150MM
|
0.1-300MM
|
|
Conduit diameter
|
Inner diameter 30mm、24mm、19mm、12mm、9mm
|
Inner diameter 47mm、35mm、25mm、18mm、9mm
|
|
Wire Diameter
|
6-150 mm square cable wires and other harnesses.
|
6 -240 mm square cable wires and other harnesses.
|
|
Cutting tolerance
|
＜2%
|
＜2%
|
|
stripping speed （PCS/H）
|
600PCS~2000pcs( Calculated within 200mm length.)
|
600PCS~1500pcs (Calculated within 200mm length.)
|
|
Blade material
|
tungsten steel /White Steel
|
tungsten steel /White Steel
|
|
Speed
|
1——10
|
1——10
|
|
Driving way
|
8-wheel simultaneous drive, silent servo motor, 0.1MM per step forward.
|
8-wheel simultaneous drive, silent servo motor, 0.1MM per step forward.
|
|
Dimensions
|
760x470x480mm
|
960x570x580mm
|
