Quick Details
-
Warranty:
-
Contact us
-
Place of Origin:
-
Japan
-
Brand Name:
-
shindaiwa
-
Model Number:
-
p5-18
-
Speed:
-
Contact us
-
Starting system:
-
Contact us
-
Type:
-
Pls contact us
-
Weight:
-
375KG-450KG
-
Cooling System Type:
-
Pls contact us
-
Certification:
-
Contact us
Quick Details
-
Rated Voltage:
-
Three-phase 200/220
-
Rated Current:
-
Pls contact us
-
Frequency:
-
50/60
-
Warranty:
-
Contact us
-
Place of Origin:
-
Japan
-
Brand Name:
-
shindaiwa
-
Model Number:
-
p5-18
-
Speed:
-
Contact us
-
Starting system:
-
Contact us
-
Type:
-
Pls contact us
-
Weight:
-
375KG-450KG
-
Cooling System Type:
-
Pls contact us
-
Certification:
-
Contact us
Products Description

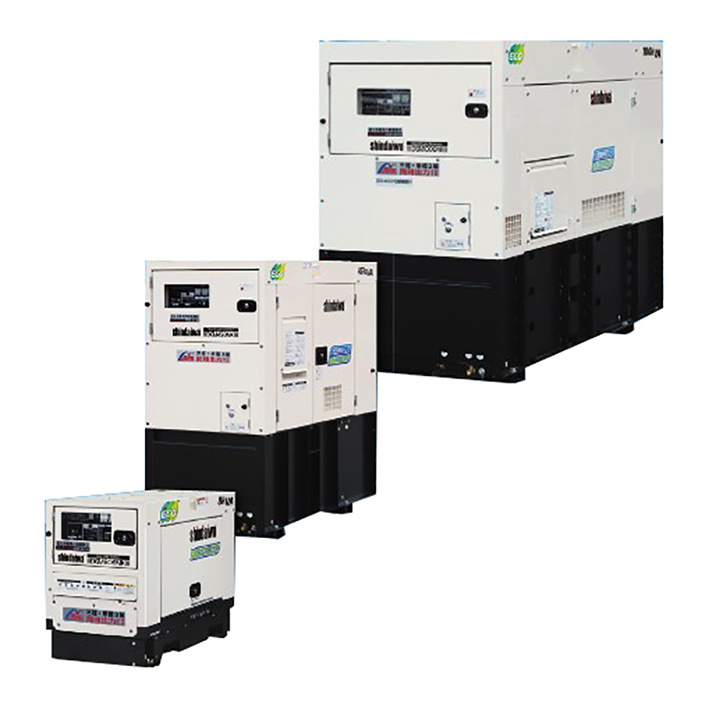

Model DGM80BMK
2-pole multi-generator
Lightweight and compact design for easy installation and transportation. There is also a significant advantage in terms of the initial introduction cost.
[Environmentally friendly] Ultra-low noise, low fuel consumption, oil guard
Equipped with an engine that complies with Japan's Tier 3 emission regulations
Both single-phase three-wire and three-phase four-wire systems can be used as long as the rated current is not exceeded.
The dry mass of the main body excludes fuel and engine oil.
Output performance, continuous operation time, noise level, etc. may vary depending on settings and operating conditions.
2-pole multi-generator
Lightweight and compact design for easy installation and transportation. There is also a significant advantage in terms of the initial introduction cost.
[Environmentally friendly] Ultra-low noise, low fuel consumption, oil guard
Equipped with an engine that complies with Japan's Tier 3 emission regulations
Both single-phase three-wire and three-phase four-wire systems can be used as long as the rated current is not exceeded.
The dry mass of the main body excludes fuel and engine oil.
Output performance, continuous operation time, noise level, etc. may vary depending on settings and operating conditions.
|
Specifications
|
DGM80BMK Multi-generator [Standard specifications]
|
|
Size(Length*Width*Height)(mm)
|
1095*640*895
|
|
Main Unit Dry Weight(kg)
|
335
|
|
Maintenance Weight(kg)
|
375
|
|
Generator Rated Voltage(V)
|
Three-phase 200/220 Single-phase 3-wire 100/110, 200/220
|
|
Generator Frequency(Hz)
|
50/60
|
|
Generator Rated Power Output(kVA)
|
Three-phase 4-wire 7/8, Single-phase 3-wire 4.5/5
|
|
Generator Rated Current(A)
|
Three-phase 4-wire 20.2/21,
Single-phase 3-wire 22.5×2/22.7×2, 22.5/22.7
|
|
Power Factor
|
0.8(three-phase)/1.0(single-phase)
|
|
Engine brand and model
|
Kubota Z482
|
|
Engine Output(kW/min-1)
|
6.8/3000(50Hz), 8.0/3600(60Hz)
|
|
Fuel
|
Diesel Fuel
|
|
Fuel Tank Capacity (L)
|
36
|
|
Noise Leve{dB(A)/7m}[LwA sound power level dB]
|
61(50Hz), 63[LwA89](60Hz)
|
|
Single-phase output (outlet output) voltage (V)
|
100(50Hz), 110(60Hz)
|
|
Single-phase output (outlet output) output (kVA)
|
1.5×4(50Hz) 1.65×4(60Hz)
|
|
excitation system
|
Brushless
|
|
Pole Number
|
2
|
|
Fuel Consumption(L/h)
|
50% load: 1.4/1.7,
75% load: 1.7/2.1
|
multi generator
4-pole Lightweight and compact design for easy installation and transportation. There is also a significant advantage in terms of the initial introduction cost.
[Environmentally friendly] Ultra-low noise, low fuel consumption, oil guard
Equipped with an engine that complies with Japan's Tier 3 emission regulations
Both single-phase three-wire and three-phase four-wire systems can be used as long as the rated current is not exceeded.
The dry mass of the main body excludes fuel and engine oil.
Output performance, continuous operation time, noise level, etc. may vary depending on settings and operating conditions.
|
Specifications
|
DGM130MK Multi-generator[Standard specifications]
|
|
Size(Length*Width*Height)(mm)
|
1390*704*1012
|
|
Main Unit Dry Weight(kg)
|
570
|
|
Maintenance Weight(kg)
|
645
|
|
Generator Rated Voltage(V)
|
Three-phase 200/220 Single-phase 3-wire 100/110, 200/220
|
|
Generator Frequency(Hz)
|
50/60
|
|
Generator Rated Power Output(kVA)
|
Three-phase 4-wire 11/13, Single-phase 3-wire 6.5/7.5
|
|
Generator Rated Current(A)
|
Three-phase 4-wire 31.8/34.1, Single-phase 3-wire 32.5/34.1
|
|
Power Factor
|
0.8(three-phase)/1.0(single-phase)
|
|
Engine brand and model
|
Kubota D1503
|
|
Engine Output(kW/min-1)
|
11.5/1500(50Hz), 14.5/1800(60Hz)
|
|
Fuel
|
Diesel Fuel
|
|
Fuel Tank Capacity (L)
|
62
|
|
Noise Leve{dB(A)/7m}[LwA sound power level dB]
|
55(50Hz), 58[LwA84](60Hz)
|
|
Single-phase output (outlet output) voltage (V)
|
100(50Hz), 110(60Hz)
|
|
Single-phase output (outlet output) output (kVA)
|
1.5×4(50Hz)1.65×4(60Hz)
|
|
excitation system
|
Brushless
|
|
Pole Number
|
4
|
|
Fuel Consumption(L/h)
|
50% load: 1.9/2.2,
75% load: 2.4/2.8
|
2-pole multi-generator
Lightweight and compact design for easy installation and transportation. There is also a significant advantage in terms of the initial introduction cost.
[Environmentally friendly] Ultra-low noise, low fuel consumption, oil guard
Equipped with an engine that complies with Japan's Tier 3 emission regulations
Both single-phase three-wire and three-phase four-wire systems can be used as long as the rated current is not exceeded.
The dry mass of the main body excludes fuel and engine oil.
Output performance, continuous operation time, noise level, etc. may vary depending on settings and operating conditions.
|
Specifications
|
DGM150MK Multi-generator[Standard specifications]
|
|
Size(Length*Width*Height)(mm)
|
1310*640*895
|
|
Main Unit Dry Weight(kg)
|
405
|
|
Maintenance Weight(kg)
|
450
|
|
Generator Rated Voltage(V)
|
Three-phase 200/220 Single-phase 3-wire 100/110, 200/220
|
|
Generator Frequency(Hz)
|
50/60
|
|
Generator Rated Power Output(kVA)
|
Three-phase 4-wire 12.5/15, Single-phase 3-wire 7.5/9
|
|
Generator Rated Current(A)
|
Three-phase 4-wire 36.1/39.4, Single-phase 3-wire 37.5/40.9
|
|
Power Factor
|
0.8(three-phase)/1.0(single-phase)
|
|
Engine brand and model
|
Kubota D902
|
|
Engine Output(kW/min-1)
|
13.1/3000(50Hz), 15.4/3600(60Hz)
|
|
Fuel
|
Diesel Fuel
|
|
Fuel Tank Capacity (L)
|
36.4
|
|
Noise Leve{dB(A)/7m}[LwA sound power level dB]
|
64(50Hz), 65[LwA92](60Hz)
|
|
Single-phase output (outlet output) voltage (V)
|
100(50Hz), 110(60Hz)
|
|
Single-phase output (outlet output) output (kVA)
|
1.5×2(50Hz)1.65×2(60Hz)
|
|
excitation system
|
Brushless
|
|
Pole Number
|
2
|
|
Fuel Consumption(L/h)
|
50% load: 2.4/3.1,
75% load: 3.0/3.9
|
