Quick Details
-
Dimension(Long * Breadth * High):
-
4252*2680*2775
-
Name:
-
hydraulic Bulldozer
-
Rated Power:
-
59kw
-
Operating Weight:
-
8000kg
-
Total size:
-
4252*2680*2775
-
Engine model:
-
QSB3.3
-
blade capacity:
-
2
-
Ground pressure:
-
0.04
-
Blade type:
-
U BLADE
-
track shoe width:
-
460mm
Quick Details
-
Machine Weight:
-
8440
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Dimension(Long * Breadth * High):
-
4252*2680*2775
-
Name:
-
hydraulic Bulldozer
-
Rated Power:
-
59kw
-
Operating Weight:
-
8000kg
-
Total size:
-
4252*2680*2775
-
Engine model:
-
QSB3.3
-
blade capacity:
-
2
-
Ground pressure:
-
0.04
-
Blade type:
-
U BLADE
-
track shoe width:
-
460mm

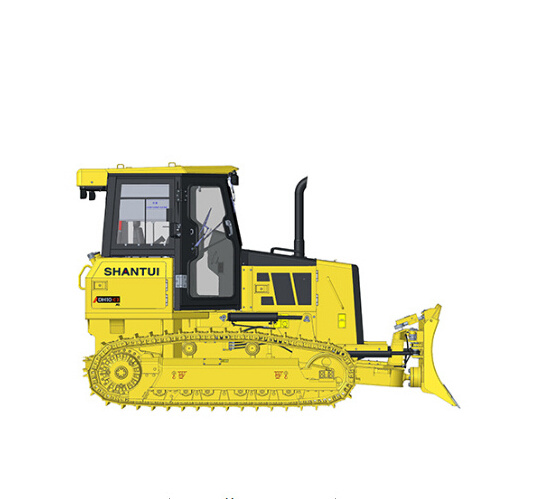

China brand shantui DH08 mini hydraulic bulldozer smart bulldozer
DH08 /SD08YS full-hydraulic crawler bulldozer integrates the technologies of proprietary intellectual property rights, including the comprehensive static pressure drive control, low emission engine control, intelligent thermal management, and automatic malfunction analysis, to realize high efficiency and intelligentization of the machine. This machine filled the domestic blank, reached the international advanced level, and passed the EU CE and North America certifications.
Technical Features
The air-air inter-cooled, electronically controlled, and turbocharged diesel engine features outstanding power performance, economy, and durability, with the emission conforming to EPA Tier 3/StageIIIA standard.
The built-in radiator features high heat exchange efficiency, in which the thin core thickness improves the ventilation efficiency of fan, reduces the wind resistance, and guarantees the normal running of machine under high temperature environment.
The dual-circuit electronically controlled static pressure drive system automatically adjusts the power output and traveling speed to adapt to the load variation. The tracks on two sides are driven independently to ensure full power output during steering and realize reverse rotation of tracks on two sides. It features completely “continuously variable” speed change to provide best speed for different working condition.
Performance Parameters
| ength × width × height (mm) (excluding ripper) |
4252×2680×2775(Including traction frame) 4252×3150×2775(Including traction frame) |
Operating weight(t) (excluding ripper) | 8.02 8.44 |
| Engine model | QSB3.3 | Net power/rated speed (kW/rpm) | 59/2200 |
| Ground pressure(Mpa) | 0.04 0.03 | Blade type | U-blade |
| Blade capacity(m 3 ) | 1.93 2.04 |
We also can supply other types, standard type, wetland type, coal type, sanitation type, mechnical type:
If you want to know more details, please contact me as following:
