Quick Details
-
Brand Name:
-
OEM
-
1000Base-TX Port:
-
16-Port RJ-45 auto-MDI / MDI-X
-
1000Base-FX Port:
-
2G SFP Slot
-
Installation:
-
DIN rail
-
Maximum Frame Size:
-
10240bytes
-
Enclosure:
-
IP40 aluminum housing
-
Surge protection:
-
±4KV
-
Certification:
-
CE FCC Rohs compliance
-
Flow Control:
-
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
FOWAY4518PFSM-YH
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
1000Base-TX Port:
-
16-Port RJ-45 auto-MDI / MDI-X
-
1000Base-FX Port:
-
2G SFP Slot
-
Installation:
-
DIN rail
-
Maximum Frame Size:
-
10240bytes
-
Enclosure:
-
IP40 aluminum housing
-
Surge protection:
-
±4KV
-
Certification:
-
CE FCC Rohs compliance
-
Flow Control:
-
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
FOWAY4518PFSM-YH

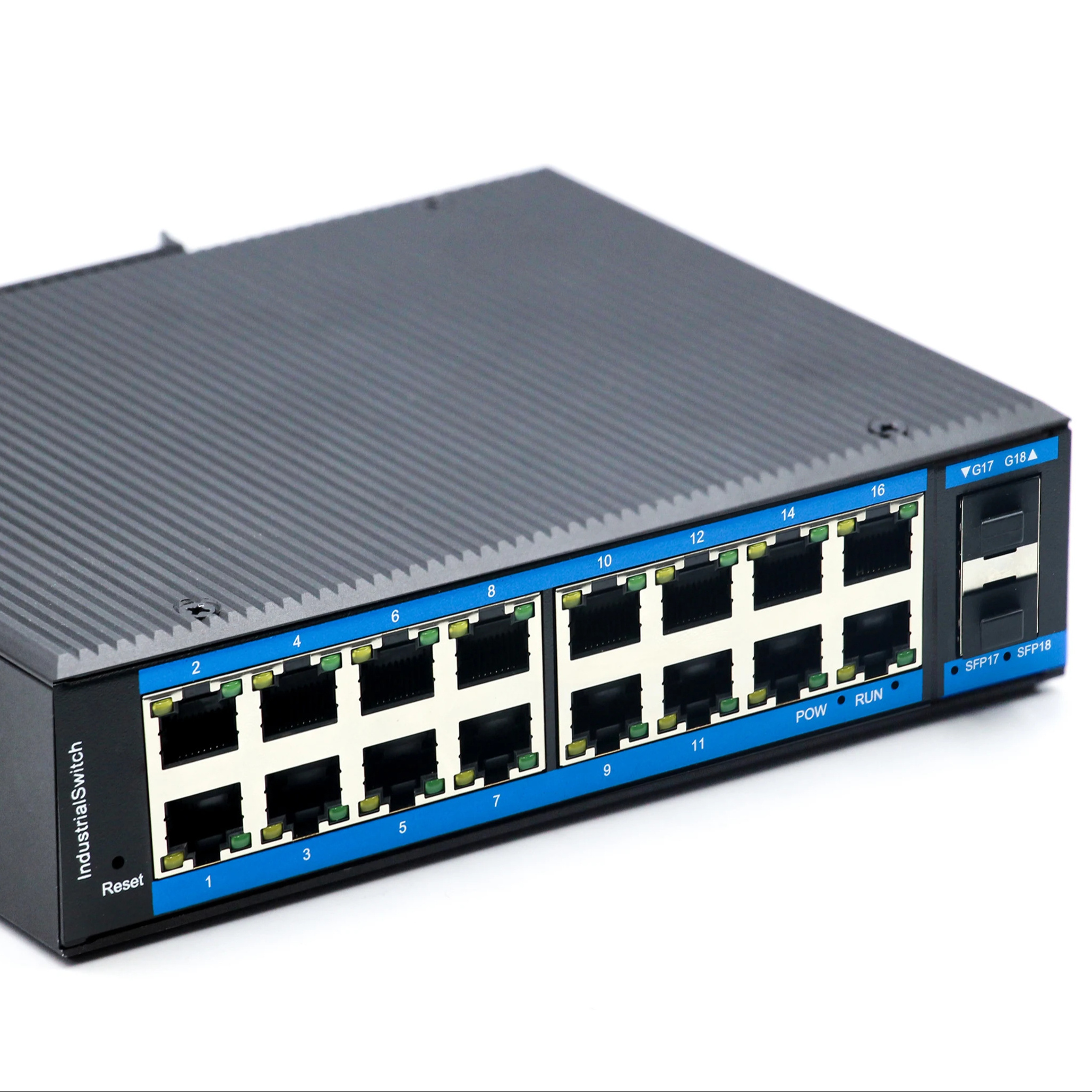

16-Port 10/100/1000BASE-TX +4G SFP M anaged Industrial PoE Switch
Overview
Slim Type with more Practicability and Convenience
FOWAY4518PFSM-YH is an har dened 18 -port Industrial PoE Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000BASE-TX RJ45 PoE + 2 G SFP delivered in an IP 4 0 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 ℃ to 80 ℃ .
The FOWAY4518PFSM-YH provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The FOWAY4518PFSM-YH is packaged in a compact IP 4 0 case with DIN rail installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 48V DC to 57 V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Technical S pecifications
|
Model No. |
FOWAY4518PFSM-YH |
|
10/100/1000Base-TX Port |
16-Port RJ-45 auto-MDI / MDI-X |
|
PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
|
PoE ports:1-16 port support PoE (max.) |
|
|
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
|
PoE port Auto detect af/at devices |
|
|
Output Voltage: DC48V |
|
|
Power Pin Assignment:1/2+;3/6- |
|
|
Power Type: End-span( Mid-span optional) |
|
|
10 0 0 Base-FX Port |
2 G SFP Slot |
|
Performance Specification |
Bandwidth: 56Gbps
MAC Address Table: 8K |
|
Installation |
DIN rail |
|
Maximum Frame Size |
10240bytes packet size |
|
Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
|
Enclosure |
IP 4 0 Aluminum housing |
|
LED Indicator |
Power : Red F iber: Link 2(Green) Ethernet: Yellow |
|
Power Input |
48 to 57 V DC redundant power |
|
Power Consumption |
< 10watts |
|
Surge protection |
± 4KV |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±1 2 kV (air) IEC61000-4-3 (RS): 10V/m (80 ~1000 MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
|
Certification |
CE FCC Rohs compliance |
|
M TBF |
> 3 00,000hours |
|
Dimensions (W x D x H) |
175.6 x 135 x 45.5 mm |
|
Weight |
Product Weight: 1 . 18KG Packing Weight: 1.3KG |
|
Working Environment
|
Working temperature: -40 ~ 80 ℃ ; Storage temperature: -40 ~ 80 ℃ Relative Humidity: 5%~95 %( no condensation) |
|
Warranty |
1-year replacement with new item; 3-years for main parts. |
