- Product Details
- {{item.text}}
Quick Details
-
lamp Life:
-
3,000h
-
lamp power:
-
1500W
-
lamp length:
-
500mm
-
lamp voltage:
-
230v
-
lamp diameter:
-
11mm
-
lamp species:
-
infrared heating lamp
-
Infrared Lamp:
-
Heating Lamp
-
Heating Lamp:
-
infrared ceramic lamps
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
xinguang
-
Model Number:
-
LYQ-IR1211
-
lamp Life:
-
3,000h
-
lamp power:
-
1500W
-
lamp length:
-
500mm
-
lamp voltage:
-
230v
-
lamp diameter:
-
11mm
-
lamp species:
-
infrared heating lamp
-
Infrared Lamp:
-
Heating Lamp
-
Heating Lamp:
-
infrared ceramic lamps

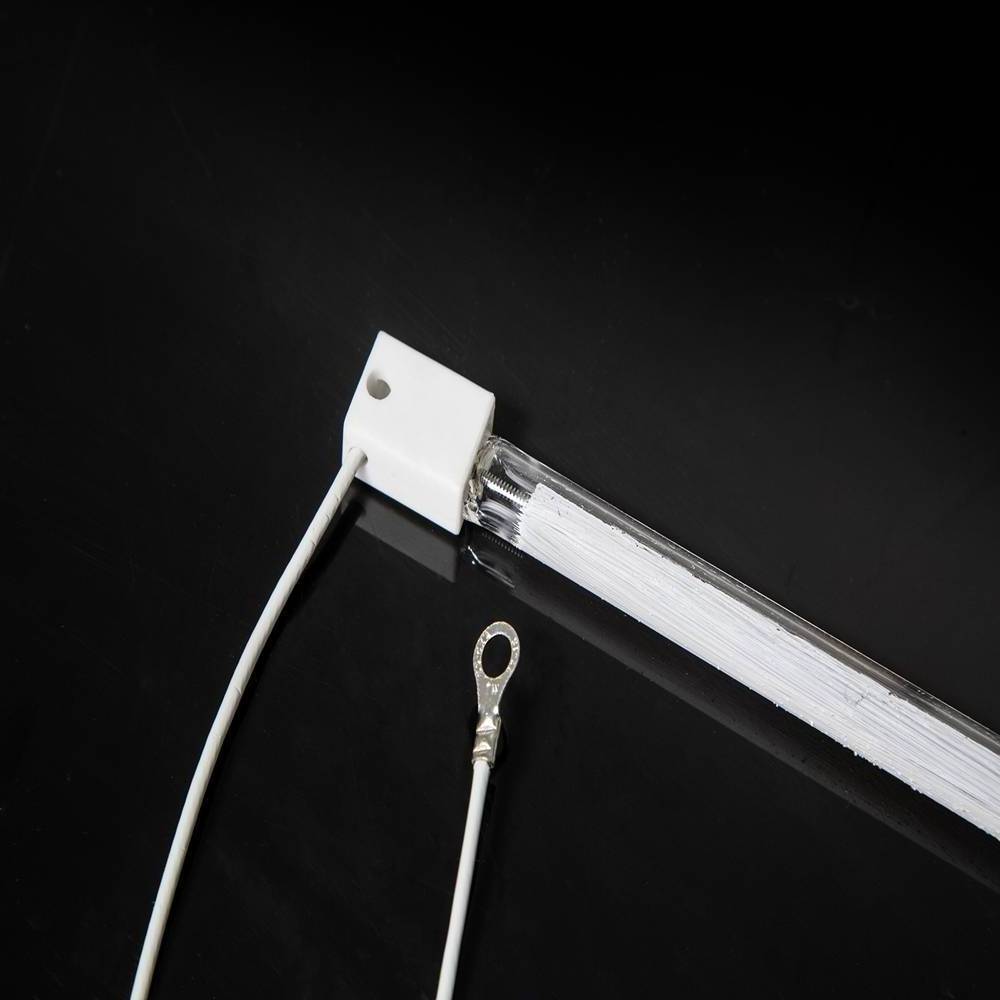

white reflector infrared lamp 230V1500W infrared heating lamp for paint drying
1. Infrared (IR) lamps
Infrared lamp tube, in which the tungsten wire will turn electrical energy into infrared radiation, the wavelength of which is between 780mm and 1mm, is produced on the principle of thermal radiation. The wave is a powerful radiation of thermodynamic objects, so it is also known as thermal radiation, which accelerates the drying of the printing ink. Infrared IR-A (780nm-1400nm) is typically used. Infrared lamps are usually divided into near infrared light and far infrared light.
A. Far infrared lamps are made of Milky quartz or ceramic tube. The characteristic is fast heating up, uniform heating, good penetration, small thermal inertia. It just needs 1-3 minutes to reach the component temperature, and the high power radiation conversion efficiency reaches 60%-75%. It will not crack in hot or cold condition, with the features of energy saving and long service life.
such as:
B. Near infrared lamps IR-A (780-1400nm,1400-3000nm), the characteristic of which is fast heating up, high efficiency, and the convenient control in the heating process, such lamp tubes are divided into single-pipe form, double pipe form and straight pipe form
such as:
|
Power |
Voltage |
Overall Length |
Tube Diameter |
Base |
|
800w |
220v |
680mm |
10mm |
ceramic or metal |
|
1kw |
220v |
220mm |
10mm |
ceramic or metal |
|
1.2KW |
220V |
730mm |
10mm |
ceramic or metal |
|
1.3kw |
220v |
1280mm |
10mm |
ceramic or metal |
|
1.4kw |
220v |
1200mm |
10mm |
ceramic or metal |
|
1.5kw |
220v/380v |
800mm |
10mm |
ceramic or metal |
|
1.6kw |
220v/380v |
700mm |
10mm |
ceramic or metal |
|
2kw |
220v/380v |
970mm |
10mm |
ceramic or metal |
|
2.5kw |
220v/380v |
1345mm |
10mm |
ceramic or metal |
|
3kw |
220v/380v |
830mm |
10mm |
ceramic or metal |
|
4.2kw |
220v/380v |
1220mm |
10mm |
ceramic or metal |
|
5kw |
220v/380v |
910mm |
10mm |
ceramic or metal |
|
Life time |
1500H |
|
|
|
Packaging Detail: standard export carton;pallets;also according to customers requst.
Delivery Detail: within 7 workdays after receiving the payment
