Quick Details
-
Mounting Type:
-
Easy to install
-
Description:
-
Ultrasonic Sensor, ultrasonic transducer
-
Model Number:
-
LH-STQ30-01A
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
lianhui
-
Theory:
-
Ultrasonic
-
Product name:
-
Ultrasonic Transducer
-
Transducer frequency:
-
30kHz±3%
-
Bandwidth:
-
>10%
-
Emission sound source level:
-
>142dB re 1μpa/V
-
Receiving sensitivity:
-
>-195dB re 1V/μpa
-
Electrostatic capacitance:
-
17.8nF±20%
-
Impedance:
-
130Ω±30%
-
Maximum Operating voltage::
-
<300V
-
Ambient temperature:
-
0℃ - 40℃
Quick Details
-
Usage:
-
hydrophone,long distance communication
-
Series:
-
Water Transducer, Water Transducer
-
Features:
-
long range
-
Mounting Type:
-
Easy to install
-
Description:
-
Ultrasonic Sensor, ultrasonic transducer
-
Model Number:
-
LH-STQ30-01A
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
lianhui
-
Theory:
-
Ultrasonic
-
Product name:
-
Ultrasonic Transducer
-
Transducer frequency:
-
30kHz±3%
-
Bandwidth:
-
>10%
-
Emission sound source level:
-
>142dB re 1μpa/V
-
Receiving sensitivity:
-
>-195dB re 1V/μpa
-
Electrostatic capacitance:
-
17.8nF±20%
-
Impedance:
-
130Ω±30%
-
Maximum Operating voltage::
-
<300V
-
Ambient temperature:
-
0℃ - 40℃

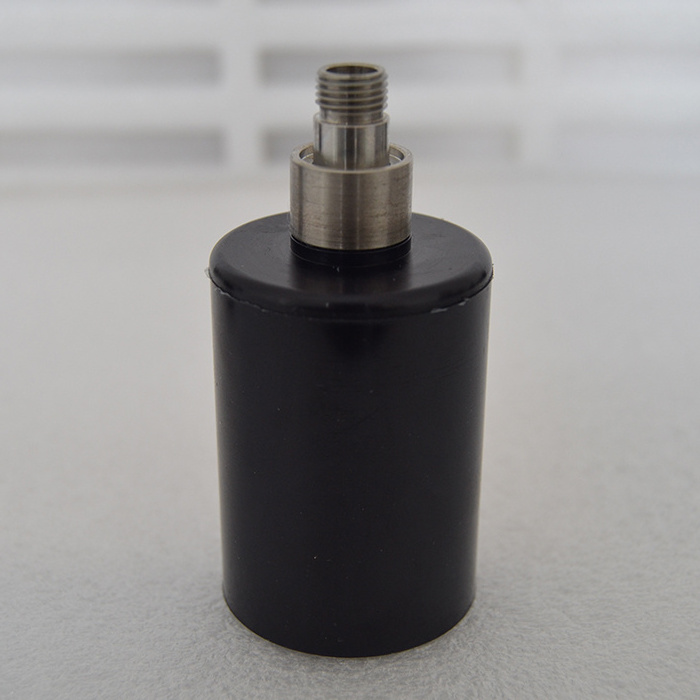

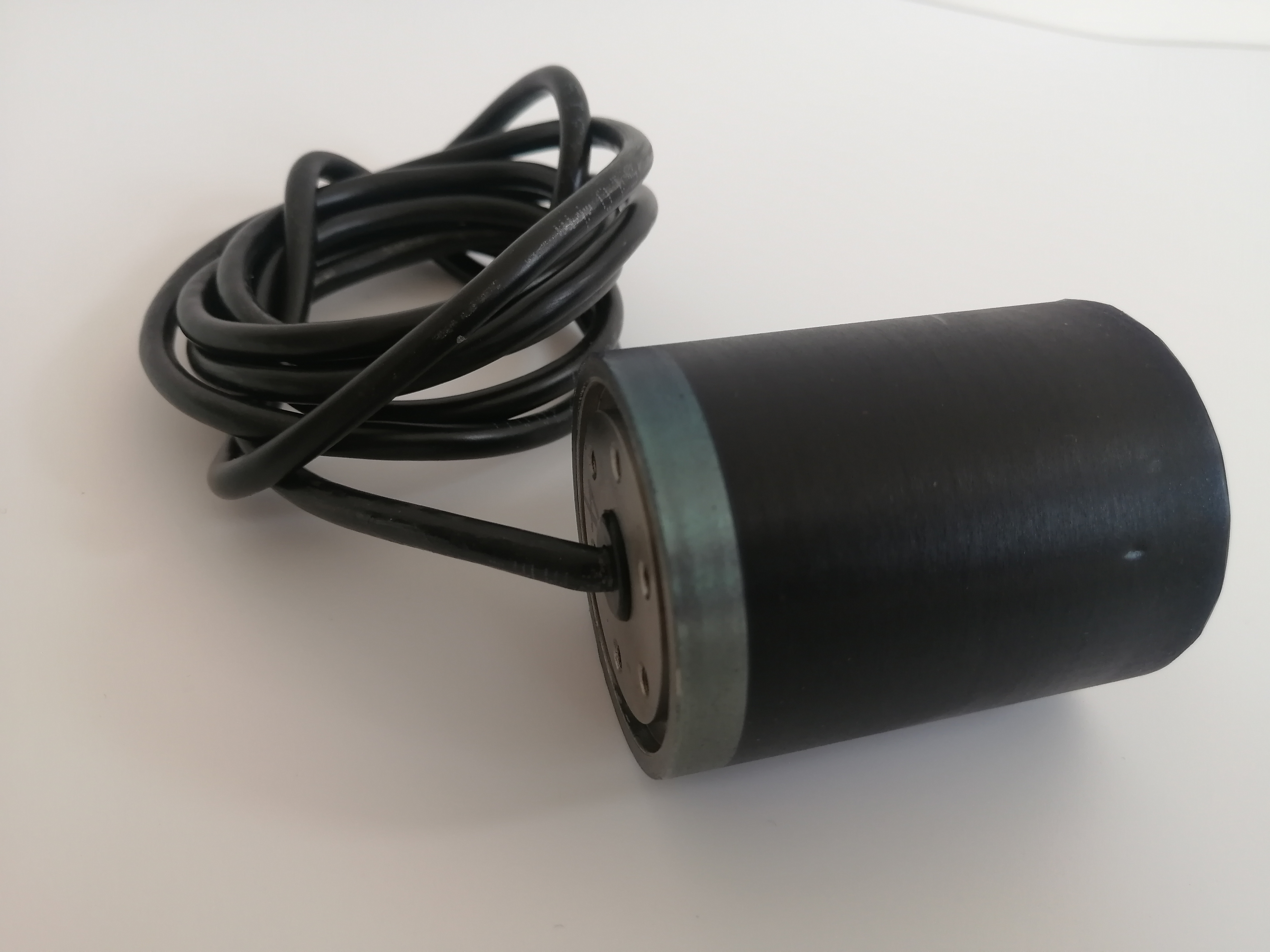

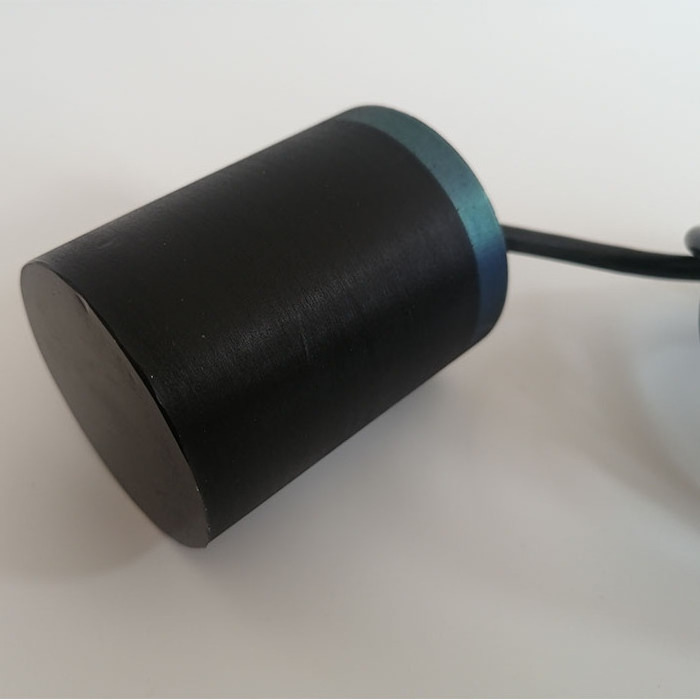

Product Description
Specification
|
Transducer frequency
|
30kHz±3%
|
|
Bandwidth
|
>10%
|
|
Emission sound source level
|
>142dB re 1μpa/V
|
|
Receiving sensitivity
|
>-195dB re 1V/μpa
|
|
Beam Angle
|
360°（level）
45°（level） |
|
Electrostatic capacitance
|
17.8nF±20%
|
|
Impedance
|
130Ω±30%
|
|
Maximum Operating voltage:
|
＜300V
|
|
Ambient temperature
|
0℃ - 40℃
|
|
Storage temperature
|
-30℃ - 70℃
|
|
IP Rating
|
IP68
|
|
Housing Material
|
Stainless steel
|
|
Acoustic window material
|
Polyurethane
|
|
Cable specification
|
Single-core Teflon wire 0.2mmX2
Red - positive; White - negative |
|
Signal interface
|
Weld
|
|
Installs Way
|
Threaded connection
|
|
Note
|
Construction and size of transducer is customizable。
|
