Alloy steel material, closed tightly, non-slip fixed.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
IDEAL
-
Voltage:
-
380V 220V three phase
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
1200*650*1100mm
-
Weight:
-
500, 500KG
-
Product name:
-
thread rolling machine
-
After-sales Service Provided:
-
Overseas third-party support available
-
Model:
-
HGS50 PRO
-
Capacity:
-
16-40mm
-
Motor power:
-
7.5KW
-
Input voltage:
-
380V/220V three phase
-
Shaft speed:
-
62r/min
-
Max length:
-
150cm
-
Size:
-
1200*650*1100mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
steel carbon wire
-
Production Capacity:
-
500/month
-
Brand Name:
-
IDEAL
-
Voltage:
-
380V 220V three phase
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
1200*650*1100mm
-
Weight:
-
500, 500KG
-
Product name:
-
thread rolling machine
-
After-sales Service Provided:
-
Overseas third-party support available
-
Model:
-
HGS50 PRO
-
Capacity:
-
16-40mm
-
Motor power:
-
7.5KW
-
Input voltage:
-
380V/220V three phase
-
Shaft speed:
-
62r/min
-
Max length:
-
150cm
-
Size:
-
1200*650*1100mm

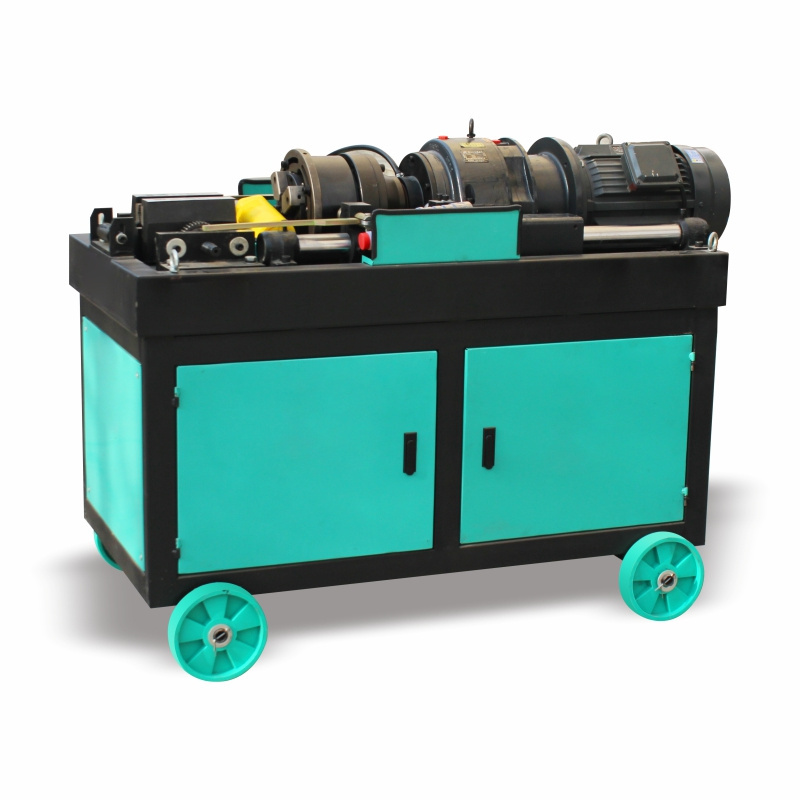

High Quality Thread Rolling Machinery Small Thread Rolling Machine
The
rebar thread rolling machine
is mainly applied to peel rebar rib first, then roll parallel thread on rebar end. It is also applied to roll threads on a round steel bar, anchor rod, or other equivalent materials. After that, you can screw into the coupler or nut accordingly.
Products Description
|
Model
|
HGS50
|
|
Processing diameter
|
14-40mm
|
|
Motor power
|
7.5kw
|
|
Input voltage
|
380VAC/220VAC three phase
|
|
Shaft speed
|
62r/min
|
|
Maximum machining length
|
150cm
|
|
Weight
|
500kgs
|
|
Rib-peeling knife size
|
12x25x40mm
|
Product Overview
Details Images
Rebar stripping and thread rolling are integrated, convenient and fast, sharp and wear-resistant.
High-strength imported pure steel anti-skid clip, better stability.
Copper motor
Thickened copper wire is preferred, for high-temperature resistance, low loss, and high output power. Thickened steel sheet, more wear-resistant and durable, increase service life The aluminum alloy material is preferred, the heat dissipation is fast, and it can work continuously for 18 hours.
Current overload protection, brand electrical appliances are more worry-free.
Before the machine is used, it is necessary to use a test rod to adjust the diameter of the steel bar to be processed.
Product packaging
1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
