Quick Details
-
Place of Origin:
-
Shanghai China
-
Brand Name:
-
Plutools
-
Model Number:
-
PLT-210P750D-24HS
-
Torque:
-
2.7Nm
-
Traction motor:
-
brushed DC
-
Gear ratio:
-
24.69
-
Max load:
-
660kg
-
Max speed:
-
1.18m/S
-
Max turning radius:
-
212mm
-
Mounting height:
-
279mm
-
Steering motor power:
-
200W
-
Steering motor rated speed:
-
3200rpm
-
steering rated current:
-
11.9A
-
Wheel diameter:
-
210mm
Quick Details
-
Speed(RPM):
-
2650Rpm
-
Continuous Current(A):
-
22A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Shanghai China
-
Brand Name:
-
Plutools
-
Model Number:
-
PLT-210P750D-24HS
-
Torque:
-
2.7Nm
-
Traction motor:
-
brushed DC
-
Gear ratio:
-
24.69
-
Max load:
-
660kg
-
Max speed:
-
1.18m/S
-
Max turning radius:
-
212mm
-
Mounting height:
-
279mm
-
Steering motor power:
-
200W
-
Steering motor rated speed:
-
3200rpm
-
steering rated current:
-
11.9A
-
Wheel diameter:
-
210mm

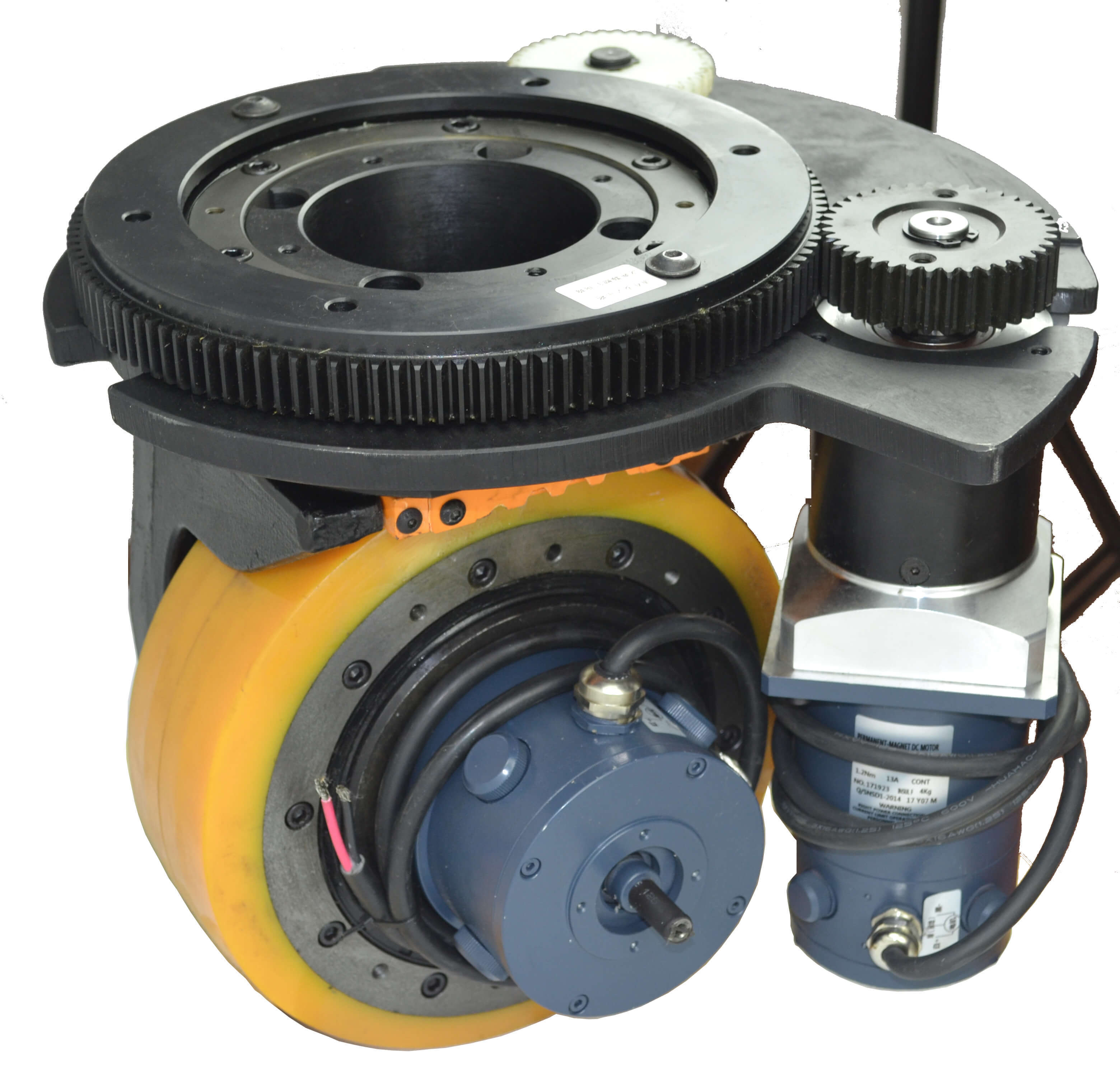

| OEM DC Brushed 24V 750W Steering Electric Wheel Hub Motor AGV Walk Drive Assembly |
| Model Name | PLT-210P750D-24HS | PLT-210P750D-48HS |
| Traction motor type | Brushed DC | Brushed DC |
| Rated Power(S2-60 minutes)(W) | 750 | 750 |
| Battery voltage | 24 | 48 |
| Traction motor rated speed(RPM) | 2650 | 2650 |
| Traction rated current(A) | 45 | 22 |
| Traction motor torque(Nm) | 2.7 | 2.7 |
| Traction gear ratio | 24.69 | 24.69 |
| Traction gear torque(Nm) | 53 | 53 |
| Wheel diameter(mm) | 210 | 210 |
| Wheel width(mm) | 76 | 76 |
| Mounting height(mm) | 240 | 240 |
| Max.turning radius(mm) | - | - |
| Max.load(kg) | 660 | 660 |
| Max.speed(m/s) | 1.18 | 1.18 |
| steering motor | / | steering motor |
| Steering motor type | / | Brushed DC |
| Steering Power(W) | / | 200 |
| Steering rated current(A) | / | 11.9 |
| Steering gear ratio | / | 53 |
| Steering motor torque(Nm) | / | 0.6 |
| Steering gear torque(Nm) | / | 28.1 |
| Steering motor rated speed(RPM) | / | 3200 |
-Differential drive wheel with loads 150kg
-Vertical drive wheels with payloads from 800kg up to 3000kg
-Horizontal drive wheels with payloads from 150kg up to 1800kg
-The drive wheel is designed for internal use on battery-operated vehicles ( forklift trucks, self –propelled vehicles, AGV’S guided or guide wire)
-It can rotate 360 degrees, but generally are mounted mechanical stops or electromechanical switch to reduce the degrees of rotation.
-The drive gear is lubricated with grease, using grinded gear to minimize noise.
-Produced with low noise gear box, minimal envelope radius, and compact design.
