Quick Details
-
Model Number:
-
KSLP/KSLO/KSLT/KSL
-
Output Frequency:
-
50Hz/60Hz
-
Product Name:
-
12v ultra thin led dimmable driver
-
Output:
-
12V 24V 36V 48V 30W-100W
-
Application:
-
Street Light, Tunnel Light, Wall Lamp,Spot Light
-
IP Rate:
-
IP65, IP67
-
Certification:
-
UL cUL CE Class 2 Class P ENEC Gs TYPE HL...
-
Material:
-
Aluminium Case
-
Warranty:
-
5 Years
-
Output Mode:
-
Pwm Output
-
Efficiency:
-
≥ 89%
-
Dimming Type:
-
Traic/ Phase-cut,0-10V,1-10V,10V PWM, Resistance (5 in 1)
Quick Details
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KSPOWER
-
Model Number:
-
KSLP/KSLO/KSLT/KSL
-
Output Frequency:
-
50Hz/60Hz
-
Product Name:
-
12v ultra thin led dimmable driver
-
Output:
-
12V 24V 36V 48V 30W-100W
-
Application:
-
Street Light, Tunnel Light, Wall Lamp,Spot Light
-
IP Rate:
-
IP65, IP67
-
Certification:
-
UL cUL CE Class 2 Class P ENEC Gs TYPE HL...
-
Material:
-
Aluminium Case
-
Warranty:
-
5 Years
-
Output Mode:
-
Pwm Output
-
Efficiency:
-
≥ 89%
-
Dimming Type:
-
Traic/ Phase-cut,0-10V,1-10V,10V PWM, Resistance (5 in 1)
Products Description

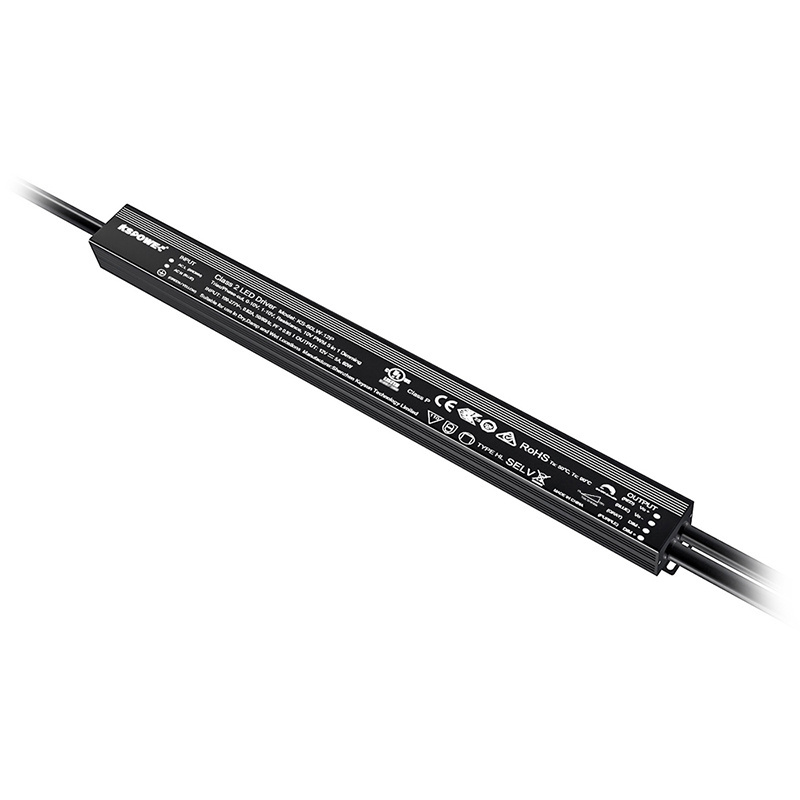

30w 40w 60w 80w 96w 100w LED Power Supply lighting transformer 12v 24v 36v 48v dc triac ultra silm led driver for led light
|
Input Voltage
|
100~277V AC 47~63Hz
|
|
|
|
|||
|
Power Factor
|
PF≧0 .98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, 80% with load
|
|
|
|
|||
|
NO.
|
KSLP
|
|
|
|
|||
|
Output Voltage
|
12V/24V/36V/48V
|
|
|
|
|||
|
Rated Current
|
0.62A-8.33A
|
|
|
|
|||
|
Rated Power
|
30W-100W
|
|
|
|
|||
|
Ripple & Noise (max.)
|
200mVp-p/ 250mVp-p
|
|
|
|
|||
|
Certificate
|
UL/cUL Class2 FCC CE GS ENEC ROHS CLASS P etc.
|
|
|
|
|||
Features:
* Height to 24.5 mm
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: 10V PWM, TRIAC, 0/1-10V or MLV / ELV Resistor Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65, IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: 10V PWM, TRIAC, 0/1-10V or MLV / ELV Resistor Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65, IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Show Details
Dimming Connect Drawing
Applications
The ultra slim class 2 led driver use low profile metal aluminum case with junction box makes the led dimming driver power solutions for LED strips, LED sign and landscape lighting.
