Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China, Guangdong
-
Product name:
-
Medium Heavy duty-01 series-Red TPE double bearing
-
Size:
-
3/4/5 inch
-
Tread width:
-
38 mm
-
Wheel material:
-
Red TPE tread+Black PP core
-
Rack material:
-
Pressed steel (Galvanized/Black Lacquer)
-
Size of Plate:
-
100*80 mm
-
Overall height:
-
113 mm/138 mm/163 mm
-
Load Capacity:
-
100 kg/130 kg/150 kg
-
Installation:
-
Install with nut, axle and bush, with double bearing and plastic cover
Quick Details
-
Material:
-
Polypropylene, Steel, Thermoplastic Elastomer
-
Type:
-
Plate Casters, Stem Casters, Side-Mount Casters
-
Model Number:
-
HD01-TPE-DB
-
Warranty:
-
1 year
-
Place of Origin:
-
China, Guangdong
-
Product name:
-
Medium Heavy duty-01 series-Red TPE double bearing
-
Size:
-
3/4/5 inch
-
Tread width:
-
38 mm
-
Wheel material:
-
Red TPE tread+Black PP core
-
Rack material:
-
Pressed steel (Galvanized/Black Lacquer)
-
Size of Plate:
-
100*80 mm
-
Overall height:
-
113 mm/138 mm/163 mm
-
Load Capacity:
-
100 kg/130 kg/150 kg
-
Installation:
-
Install with nut, axle and bush, with double bearing and plastic cover
Company Introduction
Products Description

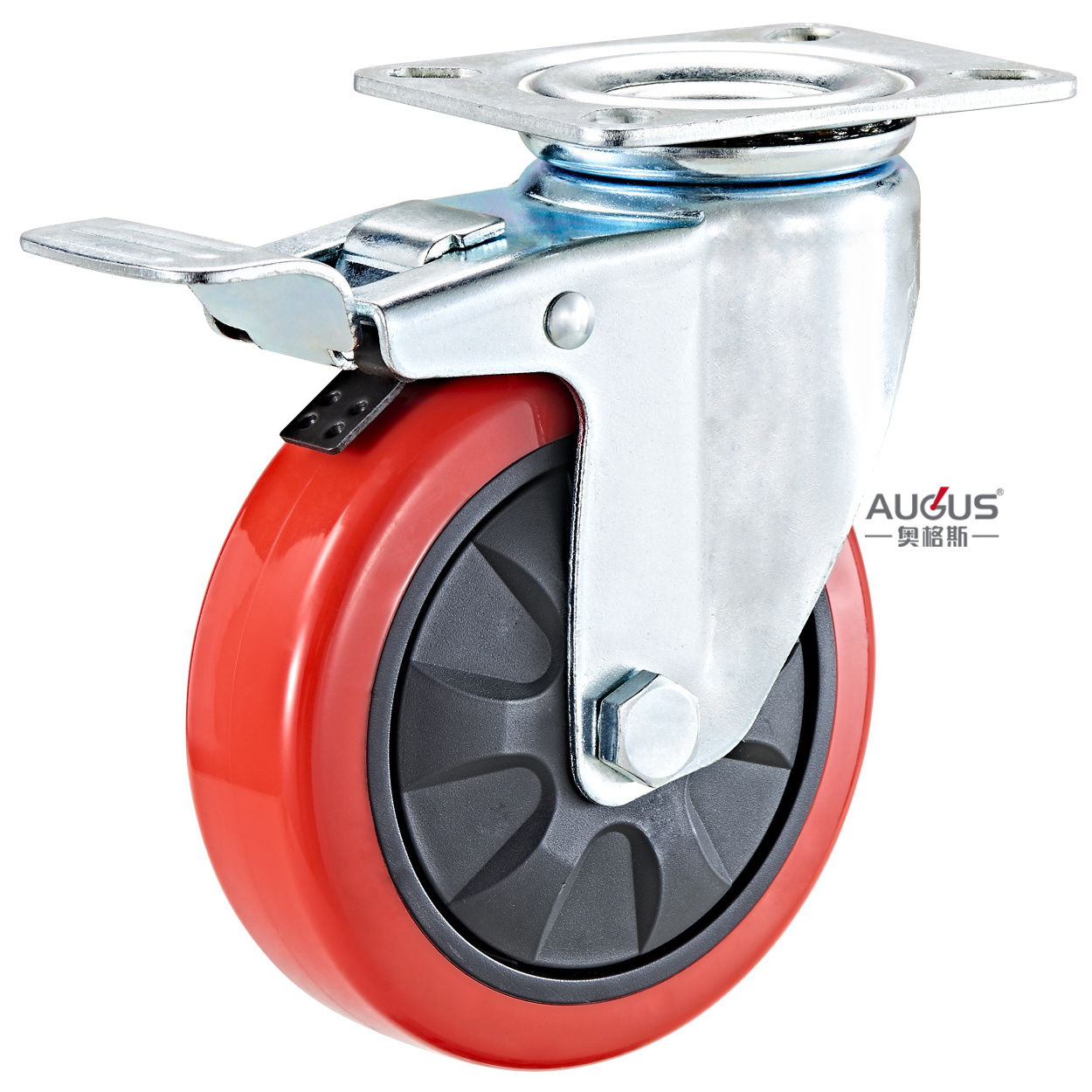

Heavy duty 01 series-Red TPE double bearing
Description: Fix, Swivel, Stem
Brake mode: Total brake, Side brake
Housing is made of Pressed steel, blue zinc plated, black lacquered.
Install with nut, axle and bush, the wheel tread is made of TPE ( Thermoplastic Elastomer ), the wheel center is made of PP (Polypropylene), with double bearing and plastic cover
Brake mode: Total brake, Side brake
Housing is made of Pressed steel, blue zinc plated, black lacquered.
Install with nut, axle and bush, the wheel tread is made of TPE ( Thermoplastic Elastomer ), the wheel center is made of PP (Polypropylene), with double bearing and plastic cover
Product Paramenters
|
Details
|
3 Inch
|
4 Inch
|
5 Inch
|
|
Wheel Diameter (mm)
|
75
|
100
|
125
|
|
Tread Width (mm)
|
38
|
38
|
38
|
|
Overall Height (mm)
|
113
|
138
|
163
|
|
Offset (mm)
|
32
|
35
|
38
|
|
Load Capacity (kgs)
|
100
|
130
|
150
|
|
Size of Plate (mm)
|
100x80
|
100x80
|
100x80
|
|
Hole Centre Distance (mm)
|
76x56
|
76x56
|
76x56
|
|
Stem Size (mm)
|
M16x30
|
M16x30
|
M16x30
|
