Quick Details
-
Production Capacity:
-
20%
-
Power:
-
148kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
shantui
-
Dimension(L*W*H):
-
7800 9000 3800mm
-
maximum spreading width (m):
-
9
-
Hopper capacity (t):
-
14
-
Engine Model:
-
BF6M1013EC
-
Auxiliary vibration travel (mm):
-
0,5,10
-
Gross weight/maximum operating weight:
-
23/28t
-
Maximum spreading thickness (mm):
-
350
-
Gradeability (%):
-
20
-
Power (kW)/speed (rpm):
-
148/2300
-
Main vibration travel (mm):
-
5
-
Vibration frequency (Hz):
-
0~50
-
Certification:
-
iso
Quick Details
-
Max. Paving Thickness:
-
9m
-
Weight:
-
23t
-
Engine Brand:
-
BF6M1013EC
-
Production Capacity:
-
20%
-
Power:
-
148kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
shantui
-
Dimension(L*W*H):
-
7800 9000 3800mm
-
maximum spreading width (m):
-
9
-
Hopper capacity (t):
-
14
-
Engine Model:
-
BF6M1013EC
-
Auxiliary vibration travel (mm):
-
0,5,10
-
Gross weight/maximum operating weight:
-
23/28t
-
Maximum spreading thickness (mm):
-
350
-
Gradeability (%):
-
20
-
Power (kW)/speed (rpm):
-
148/2300
-
Main vibration travel (mm):
-
5
-
Vibration frequency (Hz):
-
0~50
-
Certification:
-
iso
Product Features:
Based on the imported EPEC controller, a new generation of Shantui paver intelligent operation management system is developed. The paving speed is automatically controlled at a constant speed, the driving paving speed can be freely switched, and it has an automatic fault diagnosis function to monitor the vehicle; Adopt microcomputer high-precision intelligent leveling system, equipped with electronic leveling for horizontal and vertical slopes, with high leveling accuracy and strong anti-interference performance; Adopting high-brightness color LCD display and ergonomic imported joystick, with high reliability and controllability; The control panel is clearly arranged. All the component switches are arranged according to the functional logic, which is easy to operate and has a good human-computer interaction interface.
Four sets of left and right conveying and distributing systems with full hydraulic transmission are adopted. The material level adopts ultrasonic sensor control technology to ensure full proportion uniform feeding; Large diameter and large pitch spiral material distribution structure, strong material distribution capacity, low speed material distribution and small segregation; The left and right spiral feeders can be driven separately, and the height of the feeder from the ground is infinitely adjustable to meet the paving needs of different thicknesses.
Specification:
| MODEL: | SRP90S plus | SRP95M plus |
| Base Paving Width (m) | 3-5.7 | 2.5 |
| Maximum Paving Width (m) | 9 | 9.5 |
| Maximum Paving Thickness (mm) | 350 | 350 |
| Paving Speed (m/min) | 0-18 | 0-18 |
| Travel Speed (km/h) | 0-2.4 | 0-2.4 |
| Hopper Capacity (t) | 15 | 15 |
| Theoretical Productivity (th) | 850 | 850 |
| Camber Adjustment(%) | -1 - +3 | -1 - +3 |
| Climbing Ability (%) | 20 | 20 |
| Vertical Flatness (mm/3m) | <2 | <2 |
| Horizontal Slope Error (%) | ±0.02 | 0.02 |
| Density Distribution Error (%) | <5 | <5 |
| Heating Method | Gas heating | Gas heating |
| Lubrication Method | Centralized Lubrication | |
| Diesel Engine | BF6M1013EC |
BF6M1013EC/ Shangchai SC8D190G2B1 |
| Power 0utput | 148 | 148/140 |
| RPM | 2300 | 2300 |
| Screed | AVS9030D | DVM9525Q |
| Vibration Speed (r/min) | 0-1470 | 0-1470 |
| Vibration Distance (mm) | 4 | 3 ,5,7.9 |
| Secondary Vibration Distance (mm) | - | 0,3,6,9,12 . |
| Vibration Frequency (Hz) | 0-50 | 0-50 |
| Machine Weight (t) | 24 | 22 |
| Maximum Operating Weight (t) | 29 | 30 |
| External Dimensions LxWxH(mm) | 7800x9000x3800 | 7300x9500x3800 |
| Transport Dimensions LxWxH(mm) | 7800x3000x3360 | 7300x3000x3360 |

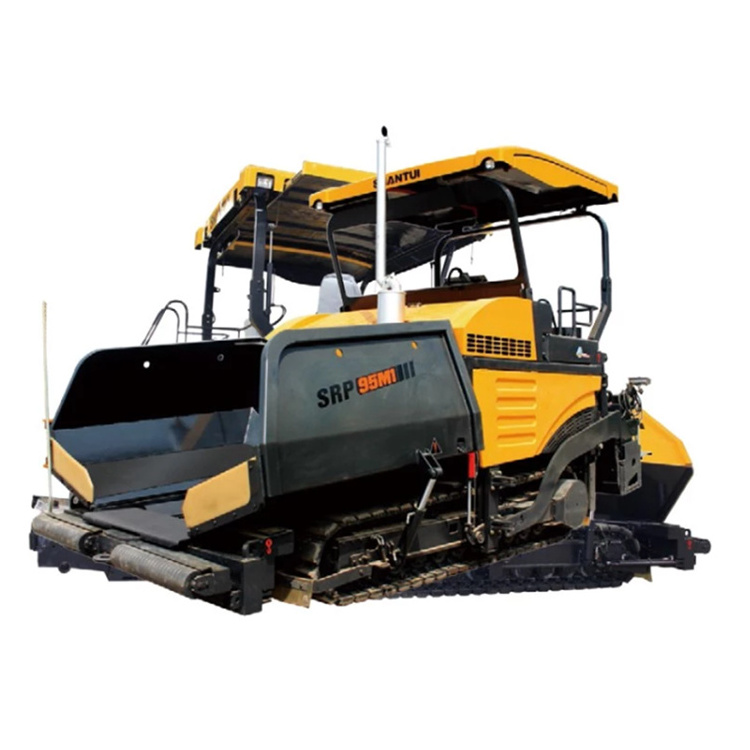

Photos:
,
