Quick Details
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
CHYF
-
Model Number:
-
JN15-12/31.5(ES1-10/31.5), JN15-12/31.5(ES1-10/31.5)
-
rated voltage:
-
12KV
-
rated short time withstand current:
-
31.5KA
-
rated short circuit withstand time:
-
4
-
rated short circuit making current:
-
80KA
-
central distance between poles:
-
80
-
Mechanism life:
-
2000
-
Whether the smart:
-
No
-
MOQ:
-
3
Quick Details
-
Number of Pole:
-
3
-
Rated Current:
-
630A
-
Rated Voltage:
-
12
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
CHYF
-
Model Number:
-
JN15-12/31.5(ES1-10/31.5), JN15-12/31.5(ES1-10/31.5)
-
rated voltage:
-
12KV
-
rated short time withstand current:
-
31.5KA
-
rated short circuit withstand time:
-
4
-
rated short circuit making current:
-
80KA
-
central distance between poles:
-
80
-
Mechanism life:
-
2000
-
Whether the smart:
-
No
-
MOQ:
-
3

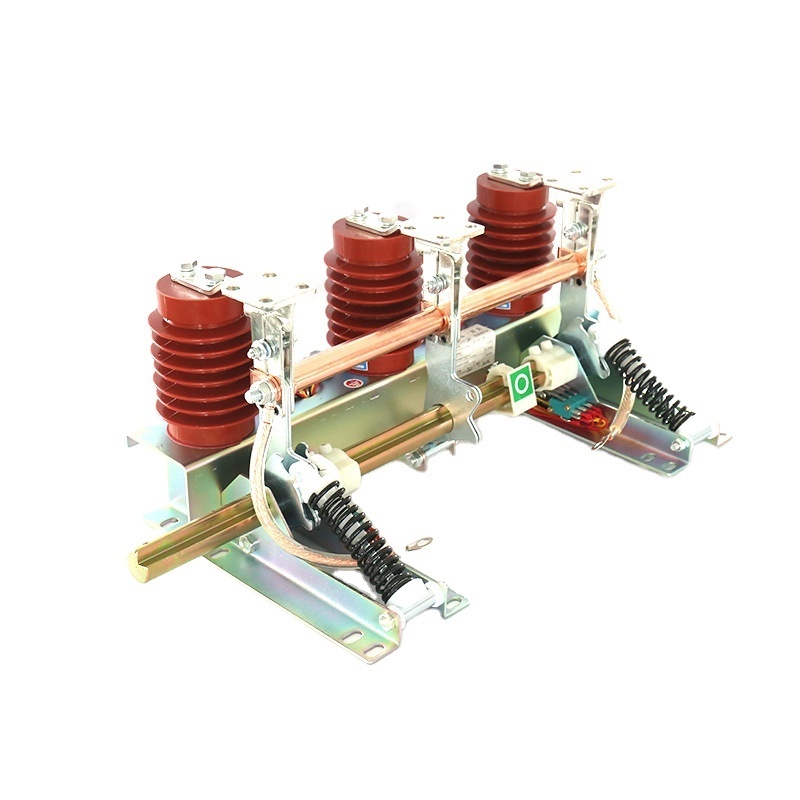

high voltage earthing switch for switchgear details listed as below:
|
Electric strength
|
More than 2000v
|
|
Insulation resistance
|
More than 10M
|
|
Usful time
|
More than 5000hours
|
|
Rating power
|
50~500W±10%
|
|
Operation voltage
|
AC380V,220V,DC220V,DC110
|
|
Specification
|
E
|
F
|
G
|
H
|
D
|
C
|
|
JN15-12/31.5-165
|
165
|
75
|
160
|
565
|
426
|
|
|
JN15-12/31.5-180
|
180
|
75
|
160
|
595
|
456
|
|
|
JN15-12/31.5-200
|
200
|
75
|
160
|
635
|
496
|
|
|
JN15-12/31.5-210
|
210
|
75
|
160
|
655
|
516
|
|
|
JN15-12/31.5-220
|
220
|
75
|
160
|
675
|
536
|
|
|
JN15-12/31.5 230
|
230
|
75
|
160
|
695
|
556
|
96
|
|
JN15-12/31.5-250
|
250
|
75
|
160
|
735
|
596
|
96
|
|
JN15-12/31.5-275
|
275
|
75
|
185
|
810
|
646
|
96
|
|
Item
|
|
Item
|
data
|
|
|
Rated voltoge
|
|
KV
|
12
|
|
|
Rated short time withstand current
|
|
KA
|
31.5
|
|
|
Rated short circuit withstand fime
|
|
S
|
4
|
|
|
Rated short circuit making current
|
|
KA
|
80
|
|
|
Rated peak withstand current
|
|
KA
|
80
|
|
|
Rated insulation leve
|
1 min power frequency withstand voltoge
|
KV
|
42
|
|
|
|
Lightning impulse withstand voltage
|
|
75
|
|
|
Mechanism life
|
|
time
|
2000
|
|
More information and more size ,pls inquiry us directly .OEM is available
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: Can I get a sample before the bulk order?
Q:Do your company have a website?
A:Please check :www.cnyufeng.cn
Q: How to solve the quality problems after sales?
A: We are factory with more than 20 years experience in this field.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are
acceptable.
acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days.if the goods are not in stock, it is according to quantity
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days.if the goods are not in stock, it is according to quantity
Q:Do your company have a website?
A:Please check :www.cnyufeng.cn
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is your terms of payment?
A: Payment=5000 USD, 30% T/T in advance ,balance before shippment.
A: Payment=5000 USD, 30% T/T in advance ,balance before shippment.
