Quick Details
-
Production Capacity:
-
10-50bags/min
-
Weight (KG):
-
450
-
Voltage:
-
220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
L1300*W920*H13900mm
-
Warranty of core components:
-
1~2 Year
-
Product name:
-
YB-420F
-
Packing speed:
-
10-50bags/min
-
packing range:
-
2000ml
-
Packing accuracy:
-
≥99%
-
Film width:
-
≤420mm
-
making bag size:
-
L:60-300mm W:80-200mm
-
Thickness of film roll:
-
0.04-0.09mm
-
Pulling film type:
-
Double belt pull film
-
Air consumption:
-
0.8Mpa,0.5m³/min
-
Main machine power:
-
2.5kw
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Cartons, Bags, Film
-
Packaging Material:
-
Plastic, Paper, Wood
-
Production Capacity:
-
10-50bags/min
-
Weight (KG):
-
450
-
Voltage:
-
220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB
-
Dimension(L*W*H):
-
L1300*W920*H13900mm
-
Warranty of core components:
-
1~2 Year
-
Product name:
-
YB-420F
-
Packing speed:
-
10-50bags/min
-
packing range:
-
2000ml
-
Packing accuracy:
-
≥99%
-
Film width:
-
≤420mm
-
making bag size:
-
L:60-300mm W:80-200mm
-
Thickness of film roll:
-
0.04-0.09mm
-
Pulling film type:
-
Double belt pull film
-
Air consumption:
-
0.8Mpa,0.5m³/min
-
Main machine power:
-
2.5kw

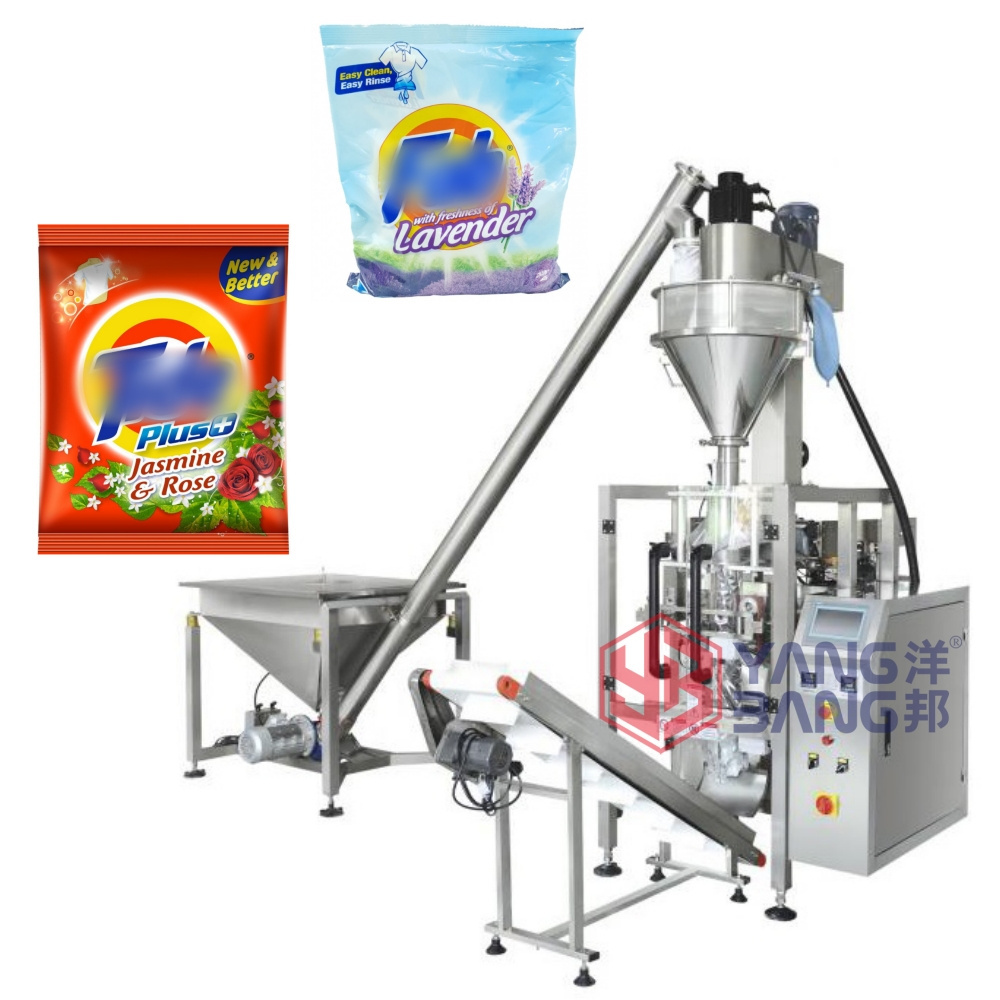

YB-420F Automatic 1kg Detergent Powder Sealing Packing Machine Soap Powder /Washing Powder Filling Sealing Machine
Product Paramenters
|
Model
|
|
YB-420F
|
|
|
|||
|
Packing speed
|
|
10-50bags/min
|
|
|
|||
|
Packing range
|
|
2000ml
|
|
|
|||
|
Film width
|
|
≤420mm
|
|
|
|||
|
Making bag size
|
|
L:60-300mm W:80-200mm(pillow seal)
|
|
|
|||
|
Packing accuracy
|
|
≥99%
|
|
|
|||
|
Air consumption
|
|
0.8Mpa, 0.5m³/min
|
|
|
|||
|
Power
|
|
2.5Kw
|
|
|
|||
|
Power supply
|
|
1Ph 220V 50/60Hz
|
|
|
|||
|
Seal type
|
|
Gusset bag,block bottom bag,pillow seal
|
|
|
|||
|
Net weight
|
|
450kg
|
|
|
|||
|
Machine dimension
|
|
L1300*W920*H1390mm
|
|
|
|||
Usages and Features
Usages

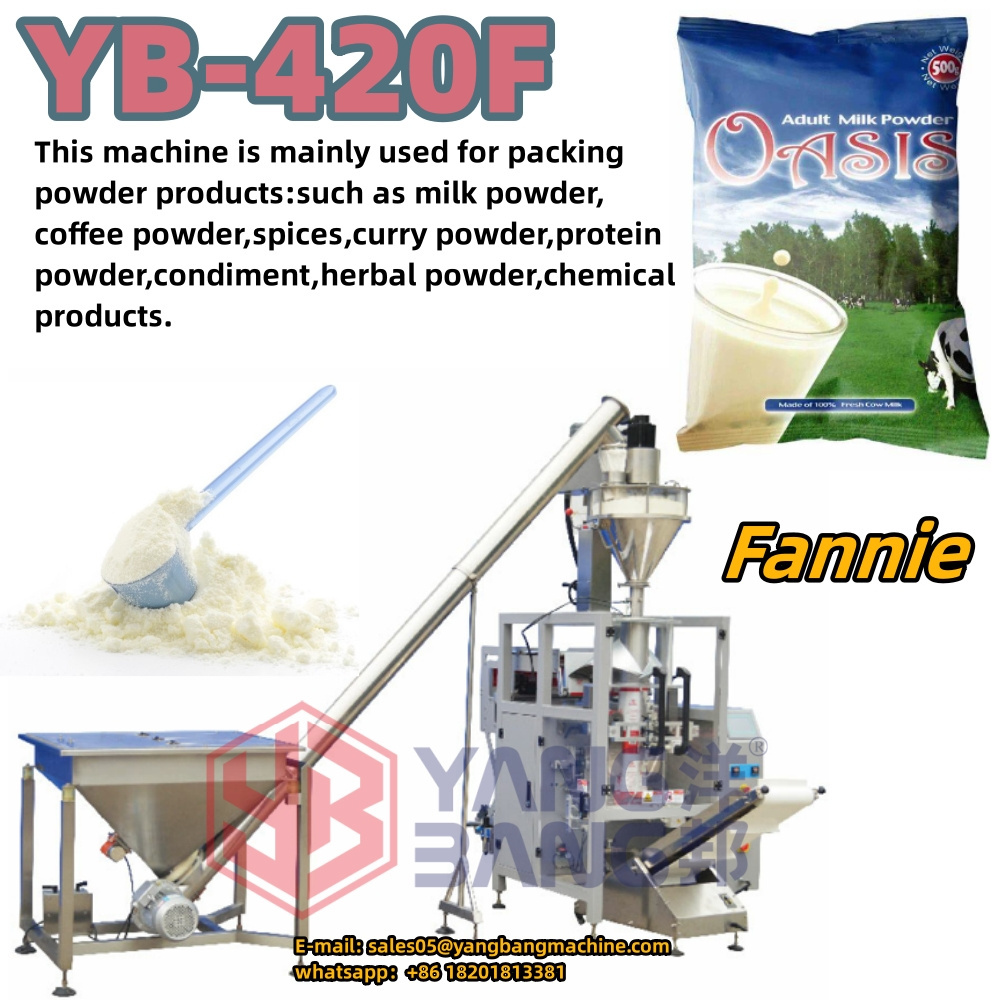

This machine is mainly used for packing powder products:such as milk powder,coffee powder,spices,curry powder,protein powder,condiment,herbal powder,chemical powder products.
Features

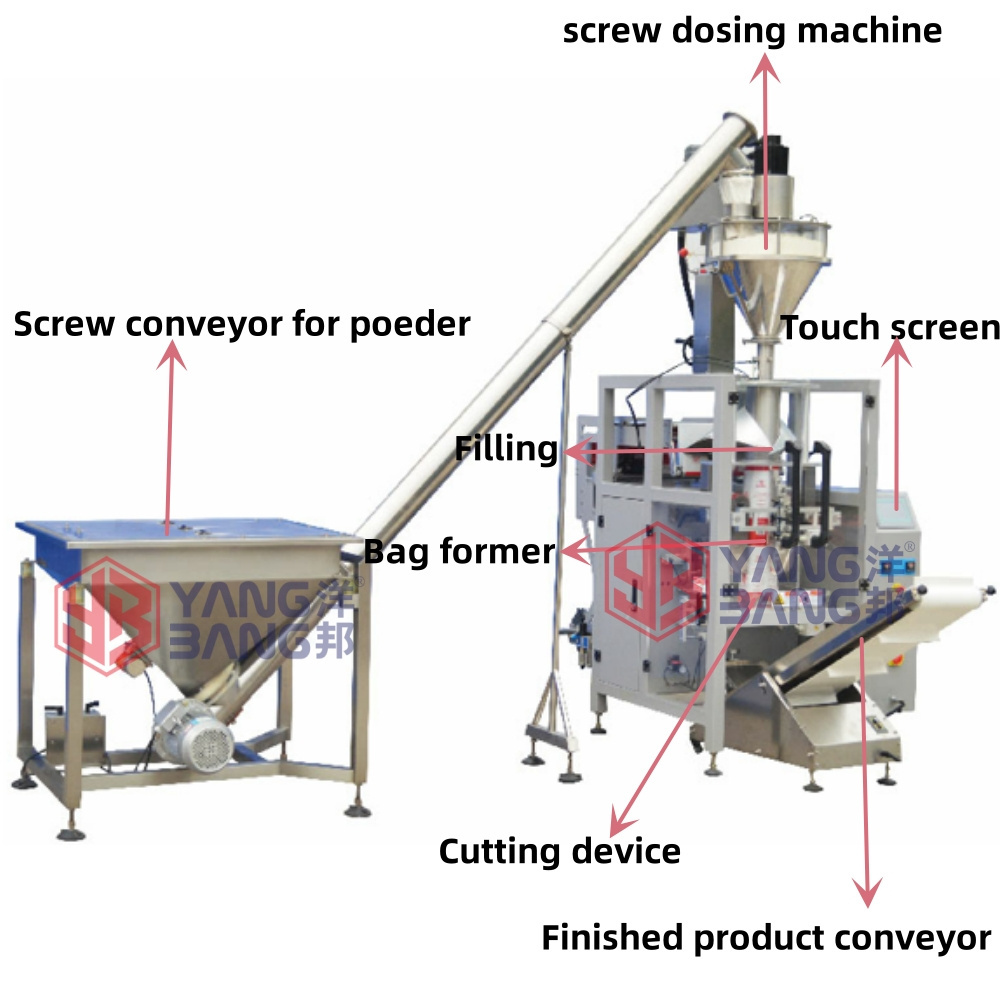

1.Work:material lifting→auger filler measuring→coding
→bag making
→filling
→sealing
→counting
→conveying finished products.
2.PLC servo and pneumatic control system,large touch screen forms the core of drive control system,high reliability and intellectualized degree,and equipped with safety protection.
3.Touch screen can store a variety of different product packaging process parameters,when replacing product,it can be used at any time without resetting.
4.Equipped with fault display system,when the fault occurs,be clear at glance,in order to be promotely ruled out.
5.This machine body is carbon steel.
Details Images
The machine can automatically complete the packaging process of milk powder, which can complete the packaging task more quickly, reduce the labor cost and time cost, and greatly improve the production efficiency
Product packaging
The packaging machine is made of stainless steel material, easy to clean and disinfect, and can effectively prevent the breeding of bacteria and other contaminants. This can improve the hygiene standards of products and ensure the safety and quality of materials.
