Quick Details
-
Voltage:
-
380V 3 phase 50 Hz(Support customization)
-
Dimension(L*W*H):
-
5800*2100*2000
-
Year:
-
New
-
Weight (KG):
-
8000
-
Power (kW):
-
8
-
Machine name:
-

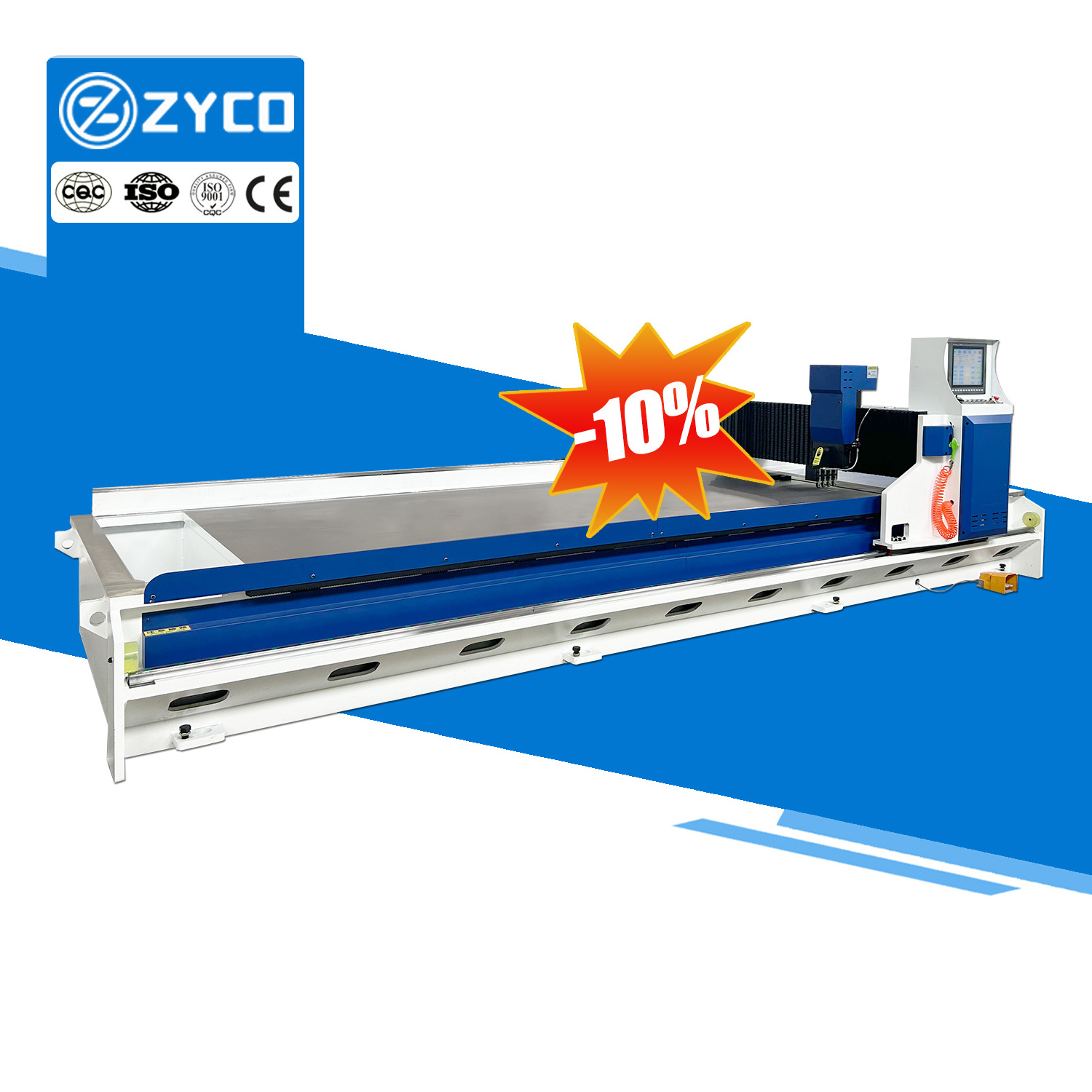

ZC Horizontal Grooving Machine
-
Hydraulic system:
-
HUST, China Taiwan
-
Hydraulic cylinder:
-
Taifeng, China Shandong
-
Servo motor and Driver:
-
HUST, China Taiwan
-
Electrical components:
-
Schneider, France
-
Ball screw and linear guide:
-
HIWIN, China Taiwan
-
Plane bearing:
-
LS, South Korea
-
Towline cable:
-
IGUS, Germany
-
Alloy cutting head:
-
KORLOY/TaegUTec, South Korea
-
White steel knife:
-
ASSAB 17, Sweden
Quick Details
-
Place of Origin:
-
Nanjing, China
-
Brand Name:
-
ZYCO
-
Marketing Type:
-
Hot Product
-
Voltage:
-
380V 3 phase 50 Hz(Support customization)
-
Dimension(L*W*H):
-
5800*2100*2000
-
Year:
-
New
-
Weight (KG):
-
8000
-
Power (kW):
-
8
-
Machine name:
-
ZC Horizontal Grooving Machine
-
Hydraulic system:
-
HUST, China Taiwan
-
Hydraulic cylinder:
-
Taifeng, China Shandong
-
Servo motor and Driver:
-
HUST, China Taiwan
-
Electrical components:
-
Schneider, France
-
Ball screw and linear guide:
-
HIWIN, China Taiwan
-
Plane bearing:
-
LS, South Korea
-
Towline cable:
-
IGUS, Germany
-
Alloy cutting head:
-
KORLOY/TaegUTec, South Korea
-
White steel knife:
-
ASSAB 17, Sweden
Products Description
Details Images
Technical parameter
|
Model
|
Max. groove thickness(mm)
|
Min. groove thickness
(mm) |
Groove speed
(m/min) |
Knife L-R resolution
(mm) |
Knife U-D resolution
(mm) |
Position accrracy
(mm) |
Penumatic pressure
(MPA) |
Dimension
(LxWxH) (mm) |
|
1220x2500
|
6
|
0.5
|
65
|
±0.001
|
±0.001
|
±0.01
|
6-8
|
4650x2300x1680
|
|
1220x3200
|
6
|
0.5
|
65
|
±0.001
|
±0.001
|
±0.01
|
6-8
|
5500x2300x1680
|
|
1220x4000
|
6
|
0.5
|
65
|
±0.001
|
±0.001
|
±0.01
|
6-8
|
6000x2300x1680
|
|
1220x5000
|
6
|
0.5
|
65
|
±0.001
|
±0.001
|
±0.01
|
6-8
|
7500x2300x1680
|
|
1220x6000
|
6
|
0.5
|
65
|
±0.001
|
±0.001
|
±0.01
|
6-8
|
8500x2300x1680
|
|
1500x4000
|
6
|
0.5
|
45
|
±0.001
|
±0.001
|
±0.01
|
6-8
|
6000x2550x1700
|
|
1500x6000
|
6
|
0.5
|
45
|
±0.001
|
±0.001
|
±0.01
|
6-8
|
8500x2550x1700
|
