Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6239*2268*3760mm
-
Machine Weight:
-
7800 kg
-
Bucket capacity:
-
1.1m3
-
Product name:
-
4x4 backhoe loader
-
Operate weight:
-
7800kgs
-
Wheelbase:
-
2250mm
-
Dumping distance:
-
1050mm
-
Max. Dumping Height:
-
2742mm
-
Front Bucket Capacity:
-
1.1m³
-
Front Bucket Load:
-
2500kg
-
Tread Width:
-
1640mm
-
Max. Digging Depth:
-
4503mm
-
Back Bucket Capacity:
-
0.25m³
Quick Details
-
Engine Brand:
-
WEICHAI
-
Power:
-
55 kw, 67kw
-
Brand Name:
-
Chengda
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6239*2268*3760mm
-
Machine Weight:
-
7800 kg
-
Bucket capacity:
-
1.1m3
-
Product name:
-
4x4 backhoe loader
-
Operate weight:
-
7800kgs
-
Wheelbase:
-
2250mm
-
Dumping distance:
-
1050mm
-
Max. Dumping Height:
-
2742mm
-
Front Bucket Capacity:
-
1.1m³
-
Front Bucket Load:
-
2500kg
-
Tread Width:
-
1640mm
-
Max. Digging Depth:
-
4503mm
-
Back Bucket Capacity:
-
0.25m³

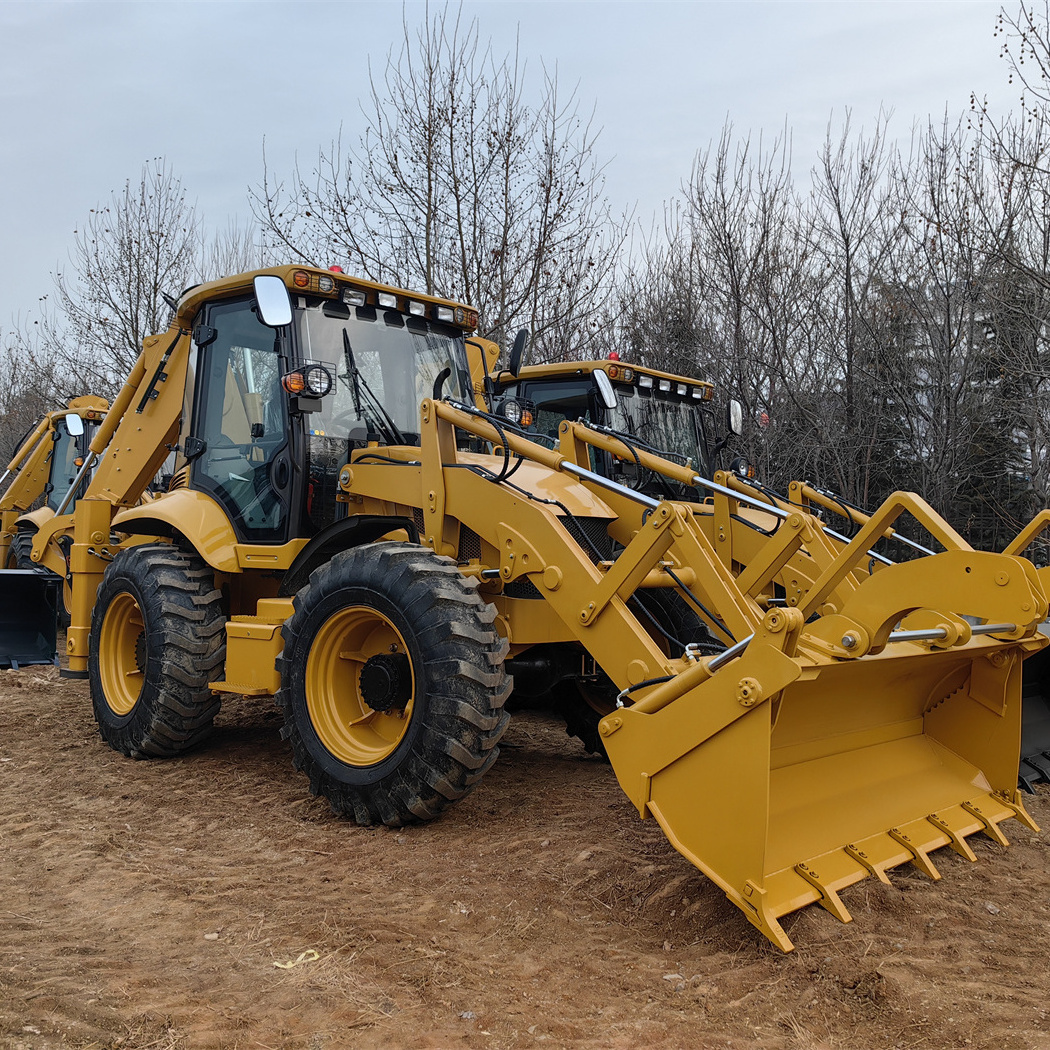

4x4 compact tractor with loader and backhoe 1.1m3 Small Price large backhoe loader
Our company sells all kinds of construction machinery, such as excavators, bulldozers, loaders, backhoe loader,road rollers,
graders, forklifts, etc. We sell different brands of different models, you are welcome to inquire at any time.
Products Description
Backhoe loader is the collection mining, loading, which integrates multi-functional small engineering machinery products, widely used in municipal, highway, agriculture, environmental sanitation, rental and leasing industry, through the configuration of different tools can achieve mining, loading, crushing, drilling, cleaning, snow removal, milling planer, trenching and so on the many kinds of job content, is the ideal model to realize multi-usage.
Product Paramenters
|
Main Specifications
|
|
|
Overall Dimension
|
6239x2268x3760mm
|
|
Operate weight
|
7800kgs
|
|
Wheelbase
|
2250mm
|
|
Dumping distance
|
1050mm
|
|
Max. Dumping Height
|
2742mm
|
|
Dumping Distance of Bucket
|
1062mm
|
|
Front Bucket Capacity
|
1.1m³
|
|
Front Bucket Load
|
2500kg
|
|
Tread Width
|
1640mm
|
|
Mini Ground Clearance
|
300mm
|
|
Departure Angle
|
19°
|
|
Max. Digging Depth
|
4503mm
|
|
Back Bucket Capacity
|
0.25m³
|
|
Back Bucket Load
|
100kg
|
|
Breakout Force
|
38kN
|
|
Max.Traction Force
|
39KN
|
|
Rotary Angel of Bucket
|
190°
|
|
Hub Reduction Type
|
One-stage Hub Reduction
|
|
Engine
|
|
|
Model
|
YTR4108G60-1
|
|
Rated Power
|
55kw
|
|
Pattern
|
Straight, Direct Injection, Four-stroke, Direct-spraying Combustion Chambe
|
|
Cylinder Number-Inner Diameter-Stroke
|
4-108×120
|
|
Rated Rotational Speed
|
2400r/min
|
|
Min. Fuel Consumption
|
≤216g/km.h
|
|
Max. Torque
|
≥261.7N.M/1800r/min
|
|
Displacement
|
4.4L
|
|
Transmisson System
|
|
|
Type
|
Counter Shaft Power-shift
|
|
Clutch Pilot Oil Pressure
|
1373Kpa—1569 Kpa
|
|
Gear Number
|
Two Advance Gears, Two Reverse Gears
|
|
Max. Speed
|
22Km/h
|
|
Steering System
|
|
|
Steering Gear Model
|
BZZ5-250
|
|
Steering Angle
|
±36°
|
|
Min. Turning Radius
|
5018mm
|
|
System Pressure
|
12Mpa
|
|
Torque Converter
|
|
|
Model
|
YJ280
|
|
Type
|
Single-stage, Single-phase Three-element
|
|
Peak Efficiency
|
84.40%
|
|
Inlet Pressure
|
0.4Mpa—0.55 Mpa
|
|
Outer Pressure
|
1.2Mpa—1.5 Mpa
|
|
Cooling Type
|
Oil Cold Pressure Circulation
|
|
Drive Axle
|
|
|
Manufacturer
|
Feicheng Axle Plant
|
|
Main Drive Type
|
Double-stage Reduction Type
|
|
Hub Reduction Type
|
One-stage Hub Reduction
|
|
Rated Axle Load
|
7.5t
|
|
Braking System
|
|
|
Parking Brake
|
Operating Force to Exert Brake,Manual Operating Force to Relieve Brake
|
|
Service Brake
|
Air-over-oil Caliper Disc Brake, External, Self-regulation,Self-balancing
|
|
Tyre Size
|
|
|
Specification
|
16/70-20
|
|
Air Pressure of Front Tyre
|
0.22 Mpa
|
|
Air Pressure of Rear Tyre
|
0.22 Mpa
|
|
Hydraulic System
|
|
|
Breakout Force of Bucket
|
46.5KN
|
|
Breakout Force of Bucket Rod
|
31KN
|
|
Lifting Time of Bucket
|
5.4S
|
|
Fall Time of Bucket
|
3.1S
|
|
Dumping Time of Bucket
|
2.0S
|
Product packaging
1.Adopt container transportation, and take reinforcement measures to prevent the machine from being damaged, so that customers receive the machine in good condition.
2.We have close ties with the top ten shipping companies in the world and can provide you with the best shipping quotations and the most timely follow-up information.
