Quick Details
-
Model Number:
-
Relay Module 5v 3 Channel
-
Product name:
-
Relay Module 5v 3 Channel
-
Type:
-
PCB Power Relay
-
Condition:
-
100% Original
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Maharashtra, India
-
Brand Name:
-
ADIY
-
Model Number:
-
Relay Module 5v 3 Channel
-
Product name:
-
Relay Module 5v 3 Channel
-
Type:
-
PCB Power Relay
-
Condition:
-
100% Original
Product Description
Description

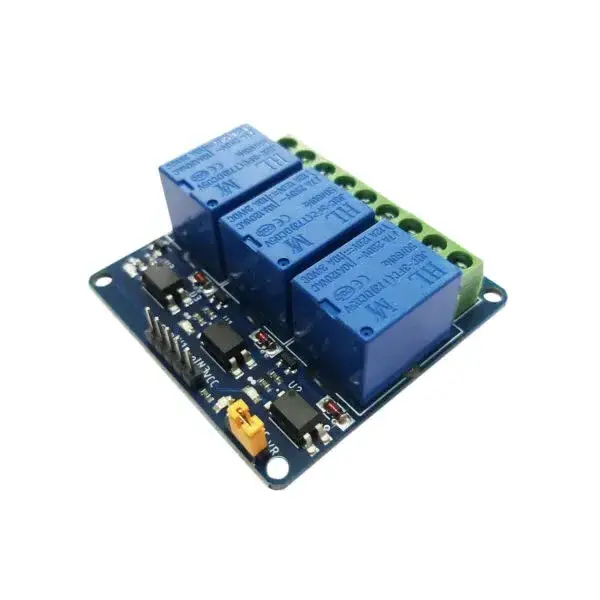

Relay Module 5v 3 Channel
Features: Relay Board 5V 3 Channel
Relay Module 5v 3 Channel
Features: Relay Board 5V 3 Channel
1. Photo coupling isolation, prevent interference from high voltage circuit
2. Onboard LEDs for indicating relays status
3. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
4. High-quality relays, loads up to 5A 250V AC or 5A 30V DC
5. Photo coupling isolation, prevent interference from high voltage circuit
6. Onboard LEDs for indicating relays status
7. Reverse polarity protection
Specifications: Relay Board 5V 3 Channel
• Power Supply Voltage: 5V
• Trigger Level: 3V-7V trigger
• Trigger Current: 5mA
• Control Voltage: AC 0-250V or DC 0-30V
• Control Current: 0-7A
• Dimensions: Length*Width*Height = 50*50*17 mm
2. Onboard LEDs for indicating relays status
3. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
4. High-quality relays, loads up to 5A 250V AC or 5A 30V DC
5. Photo coupling isolation, prevent interference from high voltage circuit
6. Onboard LEDs for indicating relays status
7. Reverse polarity protection
Specifications: Relay Board 5V 3 Channel
• Power Supply Voltage: 5V
• Trigger Level: 3V-7V trigger
• Trigger Current: 5mA
• Control Voltage: AC 0-250V or DC 0-30V
• Control Current: 0-7A
• Dimensions: Length*Width*Height = 50*50*17 mm
Pin Description:
* C=common: This is the common terminal. This terminal will be connected to either of the other 2 terminals (NO or NC) based on the state of the relay.
* NO=normally open: As the name indicates this is a normally open terminal, i.e. if the relay is not energized (not ON), this pin will be open. We can say that the switch is OFF by default and when the relay is energized it will become ON.
* NC=normally close: As the name indicates it is normally closed terminal, i.e. if the relay is not energized (not ON), this pin will be closed. We can say that the switch is ON by default and when the relay is energized it will become OFF.
How to work on 5V 3 Channel repay Module by ADIY
* This product is 3 channel self-locking and interlocking relay function. Keep the button on for 3 seconds when setting the
trigger level. It will automatically switchover self-locking and interlock functions.
* 3-channel self-locking function: Press the corresponding button, the corresponding relay on, press again, and relay off.
* 3-channel interlock function: Press the corresponding button, the corresponding relay is on, but other channels are off.
Applications : Relay Board 5V 3 Channel
• To control high voltage
• To control high current loads such as motor
• To control solenoid valves
• To control lamps and AC load
Using Method:3 Channel Relay Board 5v
This module is high-level trigger,on-board pin marked GND(RGND)5V is respectively relay 5V power negative and positive; CH1, CH2, CH3 is control port, high-level trigger; that is to say, after module power on, control port receives a high level, the relay will be connected Package Included: 1PCS*3 Channel Relay Module With Optocoupler Isolation Opto-isolated Compatible 3.3V 5V Signal High-voltage Relay
Package Includes:3 Channel Relay Board 5v
1 x ADIY 3 Channel Relay Module
* C=common: This is the common terminal. This terminal will be connected to either of the other 2 terminals (NO or NC) based on the state of the relay.
* NO=normally open: As the name indicates this is a normally open terminal, i.e. if the relay is not energized (not ON), this pin will be open. We can say that the switch is OFF by default and when the relay is energized it will become ON.
* NC=normally close: As the name indicates it is normally closed terminal, i.e. if the relay is not energized (not ON), this pin will be closed. We can say that the switch is ON by default and when the relay is energized it will become OFF.
How to work on 5V 3 Channel repay Module by ADIY
* This product is 3 channel self-locking and interlocking relay function. Keep the button on for 3 seconds when setting the
trigger level. It will automatically switchover self-locking and interlock functions.
* 3-channel self-locking function: Press the corresponding button, the corresponding relay on, press again, and relay off.
* 3-channel interlock function: Press the corresponding button, the corresponding relay is on, but other channels are off.
Applications : Relay Board 5V 3 Channel
• To control high voltage
• To control high current loads such as motor
• To control solenoid valves
• To control lamps and AC load
Using Method:3 Channel Relay Board 5v
This module is high-level trigger,on-board pin marked GND(RGND)5V is respectively relay 5V power negative and positive; CH1, CH2, CH3 is control port, high-level trigger; that is to say, after module power on, control port receives a high level, the relay will be connected Package Included: 1PCS*3 Channel Relay Module With Optocoupler Isolation Opto-isolated Compatible 3.3V 5V Signal High-voltage Relay
Package Includes:3 Channel Relay Board 5v
1 x ADIY 3 Channel Relay Module
|
Product Name
|
Relay Module 5v 3 Channel
|
|
Brand Name
|
ADIY
|
|
Theory
|
Solid State Relay
|
|
Usage
|
PROTECTIVE
|
|
Size
|
Miniature
|
|
Protect Feature
|
Epoxy
|
|
Contact Load
|
Low Power
|
