Quick Details
-
Voltage:
-
380/220/415
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
Building Material Shops, Home Use, Printing Shops
-
Weight (KG):
-
600 KG
-
Power (kW):
-
4.75kw
-
Max.Cutting Height at 90°(mm):
-
75mm
-
Max.Cutting Height at 45°(mm):
-
45mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Product name:
-
Sliding Table Panel Saw
-
Keyword:
-
Precision Wood Cutting Sliding Table Saw Machine
-
Function:
-
Wood Cuttiing
-
Application Wood:
-
Wooden board
-
Advantage:
-
Double Saw Blade Structure
-
Service:
-
24h Online Support
Quick Details
-
Place of Origin:
-
Chine
-
Brand Name:
-
XRB/OEM
-
Usage:
-
woodworking
-
Voltage:
-
380/220/415
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
Building Material Shops, Home Use, Printing Shops
-
Weight (KG):
-
600 KG
-
Power (kW):
-
4.75kw
-
Max.Cutting Height at 90°(mm):
-
75mm
-
Max.Cutting Height at 45°(mm):
-
45mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Product name:
-
Sliding Table Panel Saw
-
Keyword:
-
Precision Wood Cutting Sliding Table Saw Machine
-
Function:
-
Wood Cuttiing
-
Application Wood:
-
Wooden board
-
Advantage:
-
Double Saw Blade Structure
-
Service:
-
24h Online Support

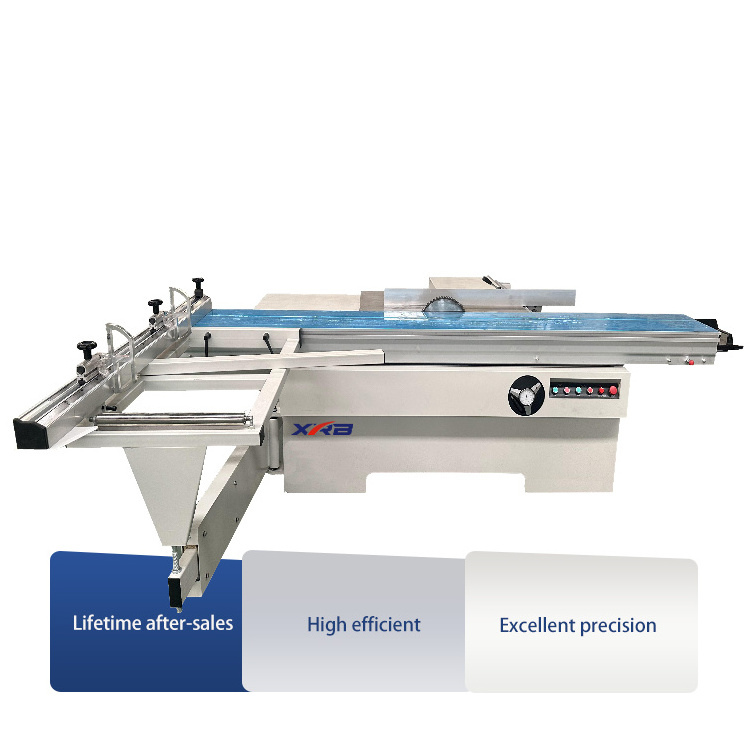

Woodworking sliding table saw Panel saw
The table panel saw is fit for cutting MDF, chipboard, plywood, particle board, ABS panels, PVC Panels, acrylic board, solid wood, and other wood structures and hardness similar to the plate。
|
Model number
|
MJ45 2800mm
|
MJ45 3000mm
|
MJ45 3200mm
|
|
Sliding table size
|
2800*375mm
|
3000*375mm
|
3200*375mm
|
|
Max. cutting length
|
2700mm
|
2900mm
|
3100mm
|
|
Max. cutting width
|
1250mm
|
1250mm
|
1250mm
|
|
Max. cutting thickness
|
75mm
|
75mm
|
75mm
|
|
Main saw blade diameter
|
300mm
|
300mm
|
300mm
|
|
Main saw blade speed
|
4000/6000rpm
|
4000/6000rpm
|
4000/6000rpm
|
|
Main saw spindle diameter
|
30mm
|
30mm
|
30mm
|
|
Slanting angle of sawing group
|
0-45°
|
0-45°
|
0-45°
|
|
Main saw motor power
|
4.0/5.5kw
|
4.0/5.5kw
|
4.0/5.5kw
|
|
Line saw blade diameter
|
120mm
|
120mm
|
120mm
|
|
Line saw blade speed
|
8000rpm
|
8000rpm
|
8000rpm
|
|
Scoring saw spindle diameter
|
20mm
|
20mm
|
20mm
|
|
Line saw motor power
|
0.75/1.1kw
|
0.75/1.1kw
|
0.75/1.1kw
|
|
Net weight
|
620kg
|
670kg
|
720kg
|
|
Overall size
|
2850*3050*900mm
|
3050*3100*900mm
|
3250*3150*900mm
|
Main saw blades & coring saw blade
Manual Angle Adjustment
Manual adjustment handle
Control Panel
Chint brand electrical appliances
High precision ruler Made of aluminum, precise cutting
Qingdao XINREBON CNC Technology CO., LTD
XINREBON CNC TECHNOLOGY CO., LTD, we are a professional manufacturing company. The factory is located in Shandong province, 20 km from Qingdao port and only 10 km from the high speed railway station. Based on efficient transportation, our machines can reach consumers directly and easily. We always walk on the road of technological innovation and our products are constantly upgraded. Currently, our machines serve consumers in more than 20 provinces in China and more than 30 countries abroad, enjoying high reputation and acclaim. Combined with years of experience, we have won the trust and praise of our customers. Now we produce all kinds of woodworking machines, including edge banding machines, cold/hot presses, planers, sanding machines, polishing machines, CNC routers, CNC panel cutting saws, horizontal band saws, multi-row drilling machines, precision push table sawing machines, various solid wood processing machines, etc. Our philosophy: professional, efficient and loyal, our mission: to create core value for our customers, our employees and our company..
Q1: Can you provide OEM or ODM services?
A: Of course, we have our own design department, and we can provide OEM or ODM services for you.
Q2: What is your minimum order quantity?
A: Hello, the minimum order quantity we support is one.
Q3: How long is the warranty period of your machine and what kind of warranty service can I get?
A: Our machines are provided with a one-year after-sales warranty and lifelong service. If there is any problem with the machine, please contact us. We guarantee to solve the problem for you within 24-48 hours, and if the machine parts are damaged for non-human reasons during the warranty period, we can send you free parts, except for consumables.
Q4: If I pay for the goods, when will you deliver the goods?
A: Hello, the normal machines are in stock. We will deliver the goods to the shipping company within 5-7 days to achieve fast shipment, but the shipping time depends on the shipping company.
A: Of course, we have our own design department, and we can provide OEM or ODM services for you.
Q2: What is your minimum order quantity?
A: Hello, the minimum order quantity we support is one.
Q3: How long is the warranty period of your machine and what kind of warranty service can I get?
A: Our machines are provided with a one-year after-sales warranty and lifelong service. If there is any problem with the machine, please contact us. We guarantee to solve the problem for you within 24-48 hours, and if the machine parts are damaged for non-human reasons during the warranty period, we can send you free parts, except for consumables.
Q4: If I pay for the goods, when will you deliver the goods?
A: Hello, the normal machines are in stock. We will deliver the goods to the shipping company within 5-7 days to achieve fast shipment, but the shipping time depends on the shipping company.
