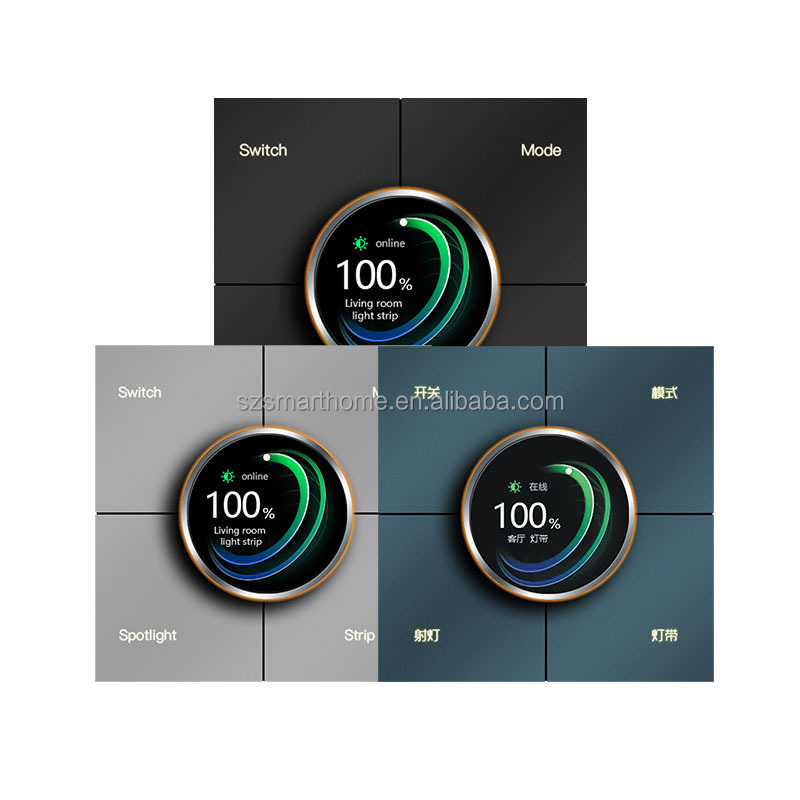

New knob dimming switch with 3 gang relay smart light switch gateway with tuya mobile APP switch control, and screen control
New knob dimming switch with 3 gang relay smart light switch gateway with tuya mobile APP switch control, and screen control
New knob dimming switch with 3 gang relay smart light switch gateway with tuya mobile APP switch control, and screen control
New knob dimming switch with 3 gang relay smart light switch gateway with tuya mobile APP switch control, and screen control
New knob dimming switch with 3 gang relay smart light switch gateway with tuya mobile APP switch control, and screen control
New knob dimming switch with 3 gang relay smart light switch gateway with tuya mobile APP switch control, and screen control
New knob dimming switch with 3 gang relay smart light switch gateway with tuya mobile APP switch control, and screen control
New knob dimming switch with 3 gang relay smart light switch gateway with tuya mobile APP switch control, and screen control

New knob dimming switch with 3 gang relay smart light switch gateway with tuya mobile APP switch control, and screen control

FOB Reference Price: Get Latest Price
≥5 Pieces
US $20
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Huayun
Model Number:
X3
Mechanical Life:
500,000 times
Color:
white/black/gold/gray
Size:
86 * 86 * 35mm
Control:
2 road scene or 2street lamp control
Power supply mode:
zero live wire
Rated voltage:
AC100V - 240v 50 ~ 60hz
Operating temperature:
-20℃-45℃
Working humidity:
≤ 85% RH
Shell material:
PC flame retardant material
Wireless connection:
ZigBee 3.0
Panel size:
86 * 86 * 35mm

Quick Details

Max. Current:
10A
Max. Voltage:
190V-250V
Place of Origin:
Guangdong, China
Brand Name:
Huayun
Model Number:
X3
Mechanical Life:
500,000 times
Color:
white/black/gold/gray
Size:
86 * 86 * 35mm
Control:
2 road scene or 2street lamp control
Power supply mode:
zero live wire
Rated voltage:
AC100V - 240v 50 ~ 60hz
Operating temperature:
-20℃-45℃
Working humidity:
≤ 85% RH
Shell material:
PC flame retardant material
Wireless connection:
ZigBee 3.0
Panel size:
86 * 86 * 35mm
Recommend Products
Recommend Products
Model
X3
Model
Tuya
Power supply mode
Zero line of fire
voltage
AC90V-250V
communication protocol
2.4G/ZIGBEE
APP
Tuya app
switch
2 channels
Single channel maximum load
MAX500W
key
4 self bouncing mechanical keys
SIZE
86*86*12MM(Installation wall size)
Function Introduction
Tuya Intelligent dimming switch
2-way composite switch: can control 2-way lights and can be set for 2-way scene use
Adjusting the brightness of the light through a knob
Can adjust the color temperature of the light
A light can be either a single light or a set of lights

2 composite switches

2 composite switches Through APP settings, you can directly control two lighting channels or set them as scenes, and quickly achieve various scene modes when pressed

red .

2 composite switches Through APP settings, you can directly control two lighting channels or set them as scenes, and quickly
achieve various scene modes when pressed

blue .

2 composite switches Through APP settings, you can directly control two lighting channels or set them as scenes, and quickly
achieve various scene modes when pressed
Installation instructions
1. Use a screwdriver to secure the bracket and power supply to the wall
2. Align the pins on the surface of the host with the bottom shell, then install them around the host and gently press down with force
3. When disassembling, use a flat screwdriver to gently pry along the gap in the lower part of the host
