Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
BQD
-
Model Number:
-
BW750A
-
Place of Origin:
-
ZHE
-
Outlet Size:
-
G1/4
-
Power:
-
780W, 780W
-
motor:
-
100% Copper Wire
-
Product name:
-

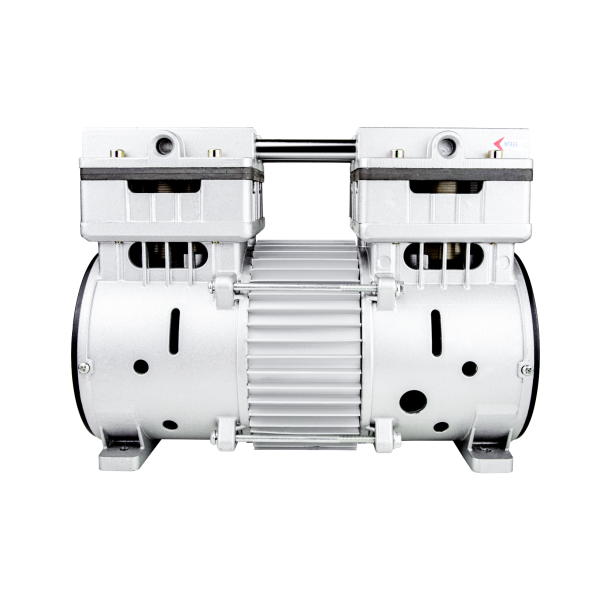

Vacuum Pump BW750A
-
Usage:
-
Agriculture Irrigation
-
Theory:
-
Reciprocating Pump
-
Keywords:
-
Vacuum Pumps
-
Fuel:
-
AC Electric Induction Motor
-
Motor:
-
100% Copper Wire
-
Feature:
-
Low Noise
Quick Details
-
Application:
-
Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, Irrigation and Agriculture, Machining, Metal and Equipment Manufacturers, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
220V/110V/Customization
-
Warranty:
-
1 year
-
Brand Name:
-
BQD
-
Model Number:
-
BW750A
-
Place of Origin:
-
ZHE
-
Outlet Size:
-
G1/4
-
Power:
-
780W, 780W
-
motor:
-
100% Copper Wire
-
Product name:
-
Vacuum Pump BW750A
-
Usage:
-
Agriculture Irrigation
-
Theory:
-
Reciprocating Pump
-
Keywords:
-
Vacuum Pumps
-
Fuel:
-
AC Electric Induction Motor
-
Motor:
-
100% Copper Wire
-
Feature:
-
Low Noise
Product Description
Specification
|
Model
|
BW750A vaccum pump
|
|
Rated voltage（V/HZ）
|
AC220V/50HZ（Customizable）
|
|
Rated power
|
780W
|
|
Vacuum degree（Mpa）
|
-93Kpa（Single stage vaccum pump）
--99Kpa（Two-stage vaccum pump）
|
|
Rated pumping speed（L/min）
|
113L/min（Single stage vaccum pump）
|
|
Maximum positive pressure（Mpa）
|
0.7Mpa（Single stage vaccum pump）Not for positive pressure use（Two-stage vaccum pump）
|
|
Rated speed
|
1400r/min
|
|
Noise
|
≤70db
|
|
Use ambient temperature（℃）
|
-5—40℃
|
|
Thermal protector（℃）
|
135±5℃
|
|
Capacitance
|
25μF
|
|
Contour dimension
|
271mm*130mm*211mm
|
|
Typical Mount Dim.
|
89mm*223mm, 4-M6
|
|
Inlet & Exhaust specificati
|
G1/4
|
|
Weight
|
10.5kg
|
