Quick Details
-
Size:
-
42*16mm alarm buzzer
-
Operating Voltage Range:
-
3-15vdc
-
Rated current(max):
-
max 15mA
-
sound Pressure lever:
-
min 105
-
Frequency of output signal:
-
3500±50HZ
-
Operating Temperature Range:
-
-20℃ to +60 ℃
-
Storage Temperature Range:
-
-30℃ to +70 ℃
-
Material:
-
Plastic
-
Lead type:
-
wire
-
Quality control:
-
ISO,ROHS,SGS,CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COSSON
-
Model Number:
-
KS-2925TD24WA
-
Size:
-
42*16mm alarm buzzer
-
Operating Voltage Range:
-
3-15vdc
-
Rated current(max):
-
max 15mA
-
sound Pressure lever:
-
min 105
-
Frequency of output signal:
-
3500±50HZ
-
Operating Temperature Range:
-
-20℃ to +60 ℃
-
Storage Temperature Range:
-
-30℃ to +70 ℃
-
Material:
-
Plastic
-
Lead type:
-
wire
-
Quality control:
-
ISO,ROHS,SGS,CE

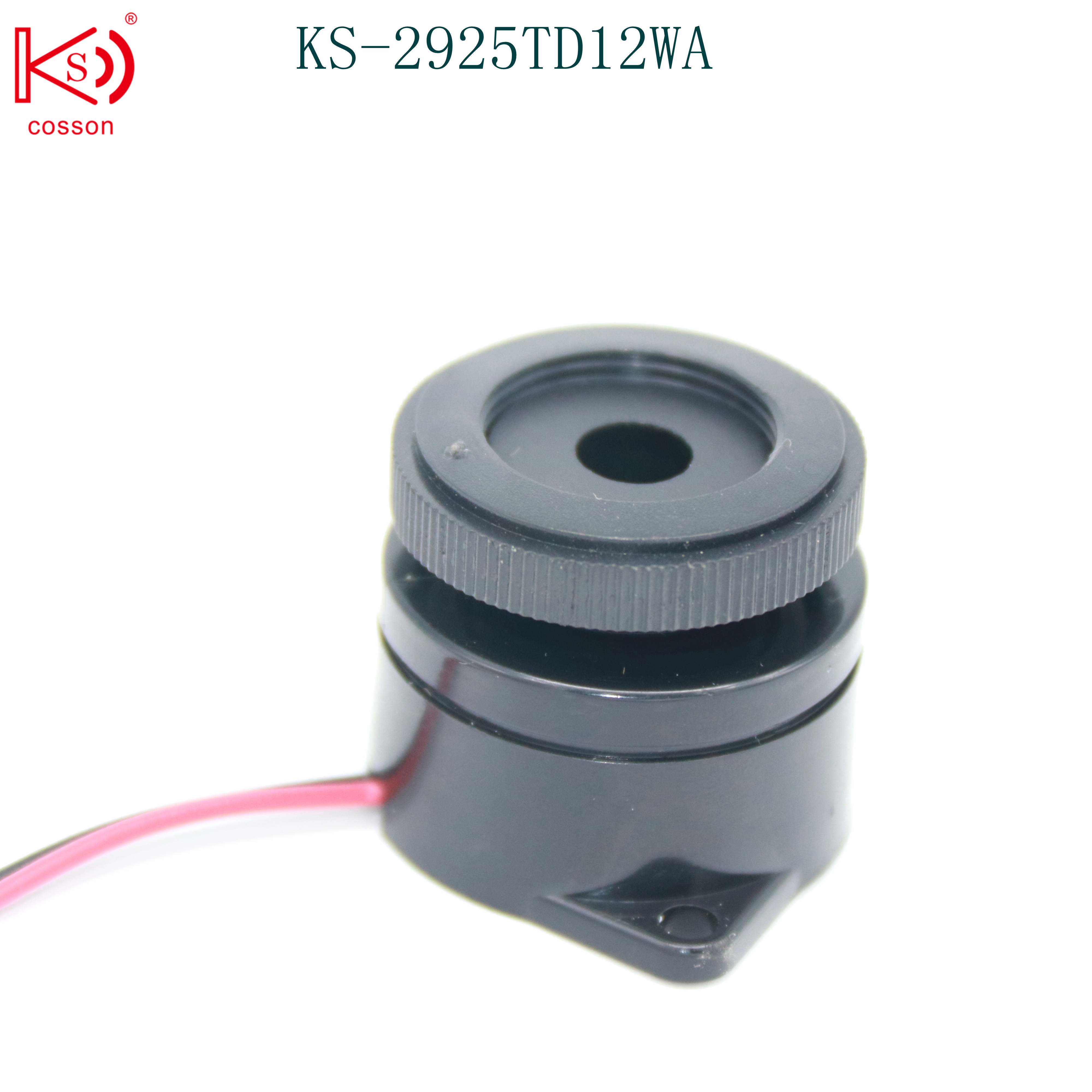

| Name | piezoelectric electronic tone 2925 alarm buzzer |
| Size | 29*25mm |
| Lead type | Wire |
| Material | Plastic |
| Rated Current(max) | max 15mA |
| Sound pressure Level | min 105DB |
| Frequency of Output signal | 3500±500HZ |
| Operating temperature Range | -20℃ to +60 ℃ |
| Storage temperature Range | -30℃ to +70 ℃ |
| Business type | Manufacturer |
| Quality control | ROHS & ISO 9001 |
Our piezo active buzzer with size of 14mm,22mm,23mm,29mm,30mm,32mm,42mm,43mm,24mm,36mm,39mm,54mm
They are used in car alarm system,back-up redar,warning for car&wash-mashine etc
There are c ontinue sounds and interrupted sounds for selection
If you have any request,please feel free to contact skype:cossson_81
Other related products
| KS-14075TD12PA | 14*7.5 | Piezo speaker |
| KS-2317TD230WA | 22.5*17 | Piezo speaker |
| KS-2310TD12PA | 23*10 | Piezo speaker |
| KS-2312TD12WB | 23*12 | Piezo speaker |
| KS-2316TD12PA | 23*16 | Piezoelectric speaker |
| KS-2317TD12WA | 22.5*17 | Piezo electric speaker |
| KS-2319TD12PA | 23*19 | Piezo speaker |
| KS-2410TD12PA | 24*10 | piezo speaker |
| KS-2815TD12PA | 28*14.5 | piezoelectric speakers |
| KS-2925TD12WB | 29*24.5 | piezo buzzer |
| KS-3015TD12WA | 30*15 | piezo alarm buzzer |
| KS-3020TD12PA | 30*20 | piezo buzzer |
| KS-3026TD220WA | 30*26 | piezo alarm buzzer |
| KS-3214TD12WB | 32*14.3 | piezo buzzer |
| KS-4216TD12WA | 42*16 | piezo alarm |
| KS-4333TD12PA | 43*33 | piezo buzzer |
| KS-2411T3P30A | 24*11 | piezo speaker |
| KS-G3923TD12WA | 46.5*39*23.5 | piezo speaker |
| KS-5453TD12WA | 54*52.8 | piezo speaker |
Packing
inner box and outer carbon box
custom packaging is also available
Shipping
DHL/UPS/FEDEX for samples or small orders
FOB China&CIF for bulk orders
We cosson specialize in producing Electro-acoustic components more than 10 years,we have strict quality contral systems,Our factory passed through ISO9000 and all of our products are up to ROHS standard.
Our main products are Buzzer(Piezoelectric buzzer / Electromagnetic buzzer / Mechanical buzzer / SMD buzzer ),Piezoelectric ceramic element , Condenser microphone , Ultrasonic sensor , Atomiztion piece etc .
If you are interested about us,please feel free contact below,welcome to visit our factory
Skype: cosson_81
Tel:86-769-81885857
Molbile:+86-13433049023
