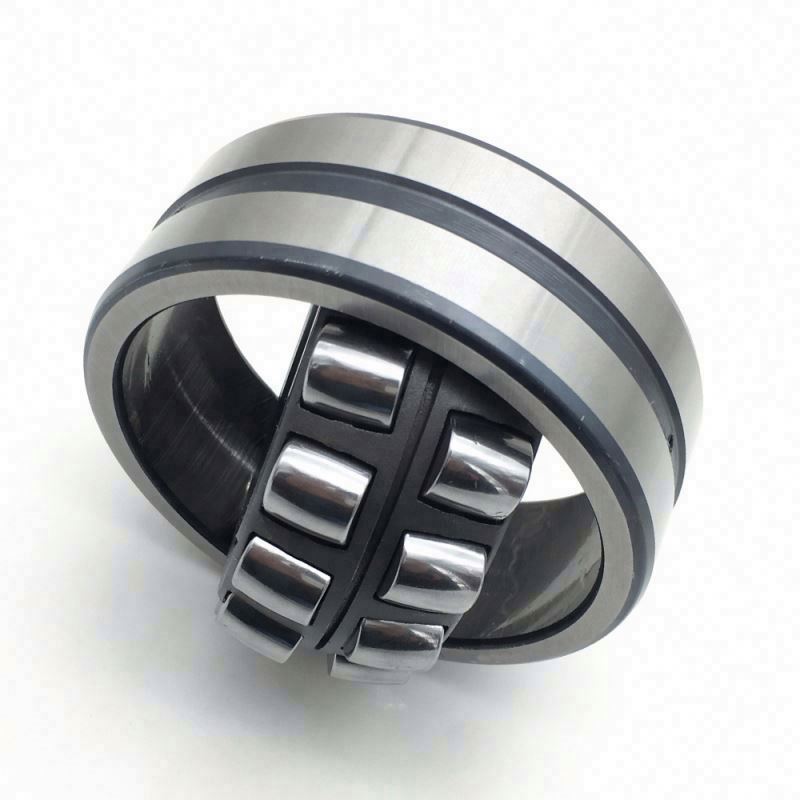

22348 CCK Bearing 240x500x155 mm spherical roller bearing 22348 CCK/W33 *

22348 CCK Bearing 240x500x155 mm spherical roller bearing 22348 CCK/W33 *

FOB Reference Price: Get Latest Price

≥2 Pieces

US $1.12

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Number of Row:: Double row

Brand Name:: KAIFU

Model Number:: 22348 CCK/W33 *

Place of Origin:: China

Noise level:: Z1 Z2 Z3

OEM:: Accept

Vibration rank:: V1, V2, V3

Tolerance level:: ABEC-5

Bearing material:: Chrome steel

Cage:: Gcr15 brass

Sample:: offer

Clearance:: C0 or C3

B:: 155 mm

Weight:: 150 kg

Quick Details

Applicable Industries:: Machinery Repair Shops, Farms, Energy & Mining

Precision Rating:: P0 P6

Seals Type:: Open

Number of Row:: Double row

Brand Name:: KAIFU

Model Number:: 22348 CCK/W33 *

Place of Origin:: China

Noise level:: Z1 Z2 Z3

OEM:: Accept

Vibration rank:: V1, V2, V3

Tolerance level:: ABEC-5

Bearing material:: Chrome steel

Cage:: Gcr15 brass

Sample:: offer

Clearance:: C0 or C3

B:: 155 mm

Weight:: 150 kg

Spherical roller bearing 22348 CCK/W33 *

Product Description

Self aligning /Spherical roller Bearing Features

1) Spherical roller bearing are principally provided with two rows of symmetrical spherical rollers and a commonsphere raceway in out ring.
2) With good self-aligning ability and can operate when the shaft deflection under load or the shaft deflection underload or the shaft misalignment in mounting, and their permissible aligning angle is 1 to 2.5 degree
3) This type of bearings has heavy load carrying capacity and anti-impact ability, in addition to radial loads, theyalso can carry axial loads in two directions
4) In general, this type of bearings permits a low limiting speed.

Product Parameter

d(mm)	D(mm)	B(mm)	Weight(kg)	Model
220	300	60	12,5	23944 CC/W33 *
220	300	60	12	23944 CCK/W33 *
220	300	60	12,5	23944-2CS/VT143 *
220	340	90	30,5	23044 CC/W33 *
220	340	90	29,5	23044 CCK/W33 *
220	340	90	30,5	23044-2CS5/VT143 *
220	340	90	29,55	23044-2CS5K/VT143 *
220	340	118	40	24044 CC/W33 *
220	340	118	39,5	24044 CCK30/W33 *
220	370	120	53,5	23144 CC/W33 *
220	370	120	52	23144 CCK/W33 *
220	370	120	53,5	23144-2CS5/VT143 *
220	370	120	52	23144-2CS5K/VT143 *
220	370	150	67	24144 CC/W33 *
220	370	150	66	24144 CCK30/W33 *
220	400	108	60,5	22244 CC/W33 *
220	400	108	59	22244 CCK/W33 *
220	400	108	60,5	22244-2CS5/VT143 *
220	400	108	59	22244-2CS5K/VT143 *
220	400	144	81,5	23244 CC/W33 *
220	400	144	79	23244 CCK/W33 *
220	460	145	120	22344 CC/W33 *
220	460	145	120	22344 CCJA/W33VA405 *
220	460	145	115	22344 CCK/W33 *
220	460	145	115	22344 CCKJA/W33VA405 *
240	320	60	13,5	23948 CC/W33 *
240	320	60	13	23948 CCK/W33 *
240	360	92	33,5	23048 CC/W33 *
240	360	92	32,5	23048 CCK/W33 *
240	360	92	33,5	23048-2CS5/VT143 *
240	360	92	32,45	23048-2CS5K/VT143 *
240	360	118	43	24048 CC/W33 *
240	360	118	42,5	24048 CCK30/W33 *
240	400	128	66,5	23148 CC/W33 *
240	400	128	64,5	23148 CCK/W33 *
240	400	128	66,5	23148-2CS5/VT143 *
240	400	128	64,5	23148-2CS5K/VT143 *
240	400	160	83	24148 CC/W33 *
240	400	160	81,5	24148 CCK30/W33 *
240	440	120	83	22248 CC/W33 *
240	440	120	81	22248 CCK/W33 *
240	440	160	110	23248 CC/W33 *
240	440	160	105	23248 CCK/W33 *
240	500	155	155	22348 CC/W33 *
240	500	155	155	22348 CCJA/W33VA405 *
240	500	155	150	22348 CCK/W33 *
240	500	155	150	22348 CCKJA/W33VA405 *
260	360	75	23,5	23952 CC/W33 *
260	360	75	22,5	23952 CCK/W33 *
260	400	104	48,5	23052 CC/W33 *
260	400	104	47	23052 CCK/W33 *
240	320	60	13	23948 CCK/W33 *
240	360	92	33,5	23048 CC/W33 *
240	360	92	32,5	23048 CCK/W33 *
240	360	92	33,5	23048-2CS5/VT143 *
240	360	92	32,45	23048-2CS5K/VT143 *
240	360	118	43	24048 CC/W33 *
240	360	118	42,5	24048 CCK30/W33 *
240	400	128	66,5	23148 CC/W33 *
240	400	128	64,5	23148 CCK/W33 *
240	400	128	66,5	23148-2CS5/VT143 *
240	400	128	64,5	23148-2CS5K/VT143 *
240	400	160	83	24148 CC/W33 *
240	400	160	81,5	24148 CCK30/W33 *
240	440	120	83	22248 CC/W33 *
240	440	120	81	22248 CCK/W33 *
240	440	160	110	23248 CC/W33 *
240	440	160	105	23248 CCK/W33 *
240	500	155	155	22348 CC/W33 *
240	500	155	155	22348 CCJA/W33VA405 *
240	500	155	150	22348 CCK/W33 *
240	500	155	150	22348 CCKJA/W33VA405 *
260	360	75	23,5	23952 CC/W33 *
260	360	75	22,5	23952 CCK/W33 *
260	400	104	48,5	23052 CC/W33 *
260	400	104	47	23052 CCK/W33 *
240	320	60	13	23948 CCK/W33 *
240	360	92	33,5	23048 CC/W33 *
240	360	92	32,5	23048 CCK/W33 *
240	360	92	33,5	23048-2CS5/VT143 *
240	360	92	32,45	23048-2CS5K/VT143 *
240	360	118	43	24048 CC/W33 *
240	360	118	42,5	24048 CCK30/W33 *
240	400	128	66,5	23148 CC/W33 *
240	400	128	64,5	23148 CCK/W33 *
240	400	128	66,5	23148-2CS5/VT143 *
240	400	128	64,5	23148-2CS5K/VT143 *
240	400	160	83	24148 CC/W33 *
240	400	160	81,5	24148 CCK30/W33 *
240	440	120	83	22248 CC/W33 *
240	440	120	81	22248 CCK/W33 *
240	440	160	110	23248 CC/W33 *
240	440	160	105	23248 CCK/W33 *
240	500	155	155	22348 CC/W33 *
240	500	155	155	22348 CCJA/W33VA405 *
240	500	155	150	22348 CCK/W33 *
240	500	155	150	22348 CCKJA/W33VA405 *
260	360	75	23,5	23952 CC/W33 *
260	360	75	22,5	23952 CCK/W33 *
260	400	104	48,5	23052 CC/W33 *
