Quick Details
-
Model Number:
-
DG12-50Ah/100Ah/150Ah/200Ah/250Ah
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
Material:
-
High Pure Lead
-
Product Name:
-

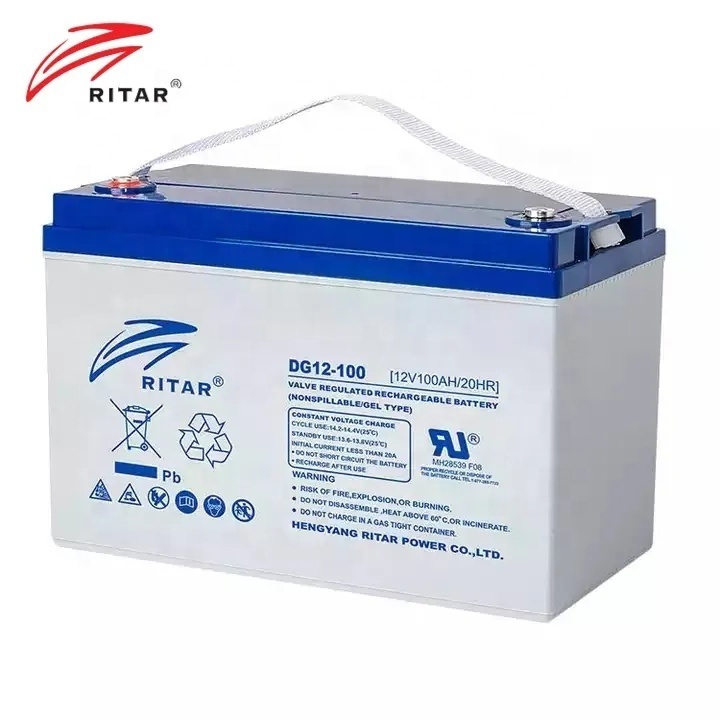

GEL Battery
-
OEM/ODM:
-
Acceptable
-
Terminal:
-
Lead/Copper
-
Weight:
-
70KG
-
Capacity:
-
250Ah@10hr-rate to 1.80V per cell @25°C
-
Color:
-
Customers' Demand
Quick Details
-
Anode Material:
-
Other
-
Application:
-
Electric Power Systems, Uninterruptible Power Supplies
-
Brand Name:
-
Ritar, Ritar
-
Model Number:
-
DG12-50Ah/100Ah/150Ah/200Ah/250Ah
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
Material:
-
High Pure Lead
-
Product Name:
-
GEL Battery
-
OEM/ODM:
-
Acceptable
-
Terminal:
-
Lead/Copper
-
Weight:
-
70KG
-
Capacity:
-
250Ah@10hr-rate to 1.80V per cell @25°C
-
Color:
-
Customers' Demand
Products Description
Technical Specifications
|
Model
|
DG12-100
|
DG12-150
|
DG12-200
|
DG12-260
|
|||
|
Rated Voltage
|
12V
|
12V
|
12V
|
12V
|
|||
|
Numbers of cells
|
6 Cells
|
6Cells
|
6Cells
|
6Cells
|
|||
|
Capacity
|
100Ah C20/1.75VPC
|
150Ah C20/1.75VPC
|
200Ah C20/1.75VPC
|
260Ah C20/1.75VPC
|
|||
|
Terminal
|
F5(M8) / F12(M8)
|
|
F16(M8) / F10(M8)
|
F14(M8)
|
|||
|
Design Life
|
15 years (floating charge)
|
|
|
|
|||
|
Float Charging Voltage
|
13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell
|
|
|
|
|||
|
Cycle Use Voltage
|
14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell
|
|
|
|
|||
|
Operating Temperature Range
|
Discharge: -40℃~60℃;Charge: -20℃~50℃;Storage: -40℃~60℃
|
|
|
|
|||
|
Normal Operating Temperature Range
|
25°C±5°C
|
|
|
|
|||
|
Self Discharge
|
RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended.
Monthly Self-discharge ratio is less than 3% at 25℃.Please charged batteries before using.
|
|
|
|
|||
|
Container Material
|
A.B.S. UL94-HB, UL94-V0 Optional.
|
|
|
|
|||
Technical Features
>DG (Deep Cycle GEL)series is pure GEL battery with 15~20 years floating design life, it is ideal for standby or frequent
cyclic discharge applications under extreme environments.
>By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery after deep discharge under frequent cyclicdischarge use, and can deliver 400 cycles at 100% DOD.
>Suitable for solar,CATV, marine, RV and deep discharge UPS,communication , and telecommunication , etc.
Performance Characteristics
Our Factory
Package and Delivery
Note：
The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
