Quick Details
-
Power (kW):
-
22
-
Weight (KG):
-
190000
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TFKJ
-
Model Number:
-
Y81F-1600
-
Power (kW):
-
22
-
Weight (KG):
-
190000
We are the
factory!
Welcome to visit,inspect.
The use of our product Y81F in Iran.
Products Description
1.Applications

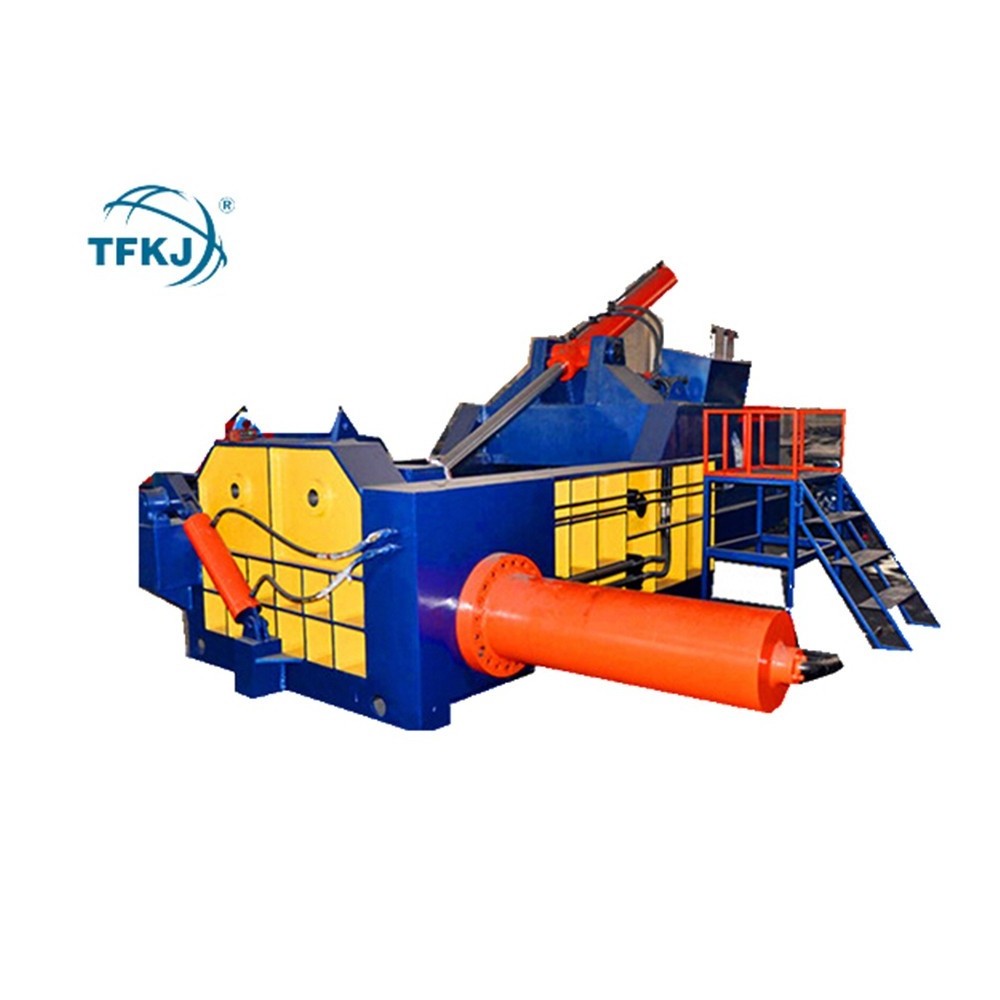

Y81 series hydraulic car body press machine is capable of extruding various metal leftover,steel paring, waste copper, aluminum, stainless steel and scraped car into regular charging as square colum, cylinder etc. different shapes.
By this way, the costs of transportation and refining can be reduced. It also make the transportation easier and faster. This machine mainly used in steel plants,recyling corporation,waste recovery and metal refining industry. Size of compression chamber and bale can be customized.
Y81 series hydraulic car body press machine is capable of extruding various metal leftover,steel paring, waste copper, aluminum, stainless steel and scraped car into regular charging as square colum, cylinder etc. different shapes.
By this way, the costs of transportation and refining can be reduced. It also make the transportation easier and faster. This machine mainly used in steel plants,recyling corporation,waste recovery and metal refining industry. Size of compression chamber and bale can be customized.
2.Features:
1)Hydraulic drive,manual or PLC control.
2)Bale-discharging:"turn-out","push-out","forward-out" .
3)No foot bolts needed in installation;diesel engine can be power.
4)Easier and safe operation with user's manual.
5)We are factory with strict quality control team.
1)Hydraulic drive,manual or PLC control.
2)Bale-discharging:"turn-out","push-out","forward-out" .
3)No foot bolts needed in installation;diesel engine can be power.
4)Easier and safe operation with user's manual.
5)We are factory with strict quality control team.
3.Technical parameters
|
Feature
|
Value
|
|
Model
|
Y81F
|
|
Feed Box Size（mm）
|
1200X700X600
|
|
Bale Size（mm）
|
250X250
|
|
Capacity（T/H）
|
1-1.5
|
|
Cycle Time（S）
|
160
|
|
Eletric Motor Power (KW)
|
15
|
4. Advantages
1). Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
2). We use good quality seals, so no oil leak.
3). Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.
1). Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
2). We use good quality seals, so no oil leak.
3). Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.
Recommend Products
|
Model
|
Main cyl.force（ton）
|
Press Box Size（mm）
|
Bale size（mm）
|
Bale weight（kg）
|
Motor（KW）
|
|
Y81F-1250
|
125
|
1200X700X600
|
250X250/300X300
|
50-70
|
15
|
|
Y81F-1600A
|
160
|
1600X1000X800
|
350X350/400X400
|
100-180
|
22
|
|
Y81F-1600B
|
160
|
1600X1200X800
|
400X400
|
100-200
|
22
|
|
Y81F-2000
|
200
|
1800X1400X800
|
450x450
|
180-350
|
37
|
|
Y81F-2500A
|
250
|
1800X1400X900
|
500X500
|
200-450
|
44
|
|
Y81F-2500B
|
250
|
2000X1750X1000
|
500X500
|
200-450
|
44
|
|
Y81F-2500C
|
250
|
2000X2000X1000
|
500X500
|
250-600
|
44
|
|
Y81F-3150
|
315
|
2600X2000X1200
|
600X600
|
400-700
|
90
|
|
Y81F-4000
|
400
|
3000X2000X1200
|
600X600
|
500-800
|
90
|
Note
:
Please choose the model according to different demand.
Successful Cases
Certifications
Packaging & Shipping
Packaging Details
：
nude package and wooden cases
Port
：
Shanghai
