Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Celine
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Willita
-
Weight (KG):
-
60 KG
-
Core Components:
-
Laser source
-
Name:
-

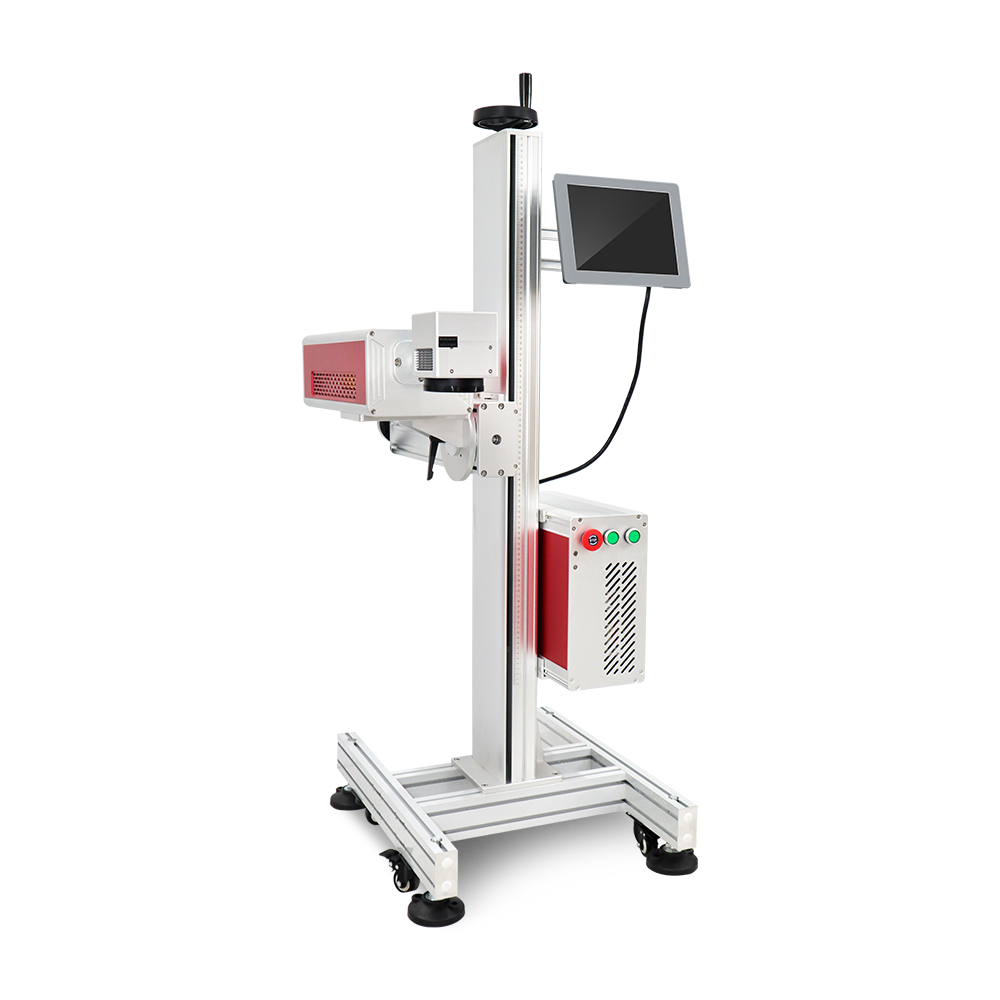

CO2 flying Batch coding expiry date laser marking machine
-
Laser Power:
-
20W/30W
-
Laser source:
-
DAVI Metal radio frequency tube
-
Character height:
-
1-700mm
-
Minimum line width:
-
0.01mm
-
Minimum character:
-
0.1mm
-
Marking speed:
-
10000mm/s
-
Engraving line speed:
-
≤7000mm/s
-
Power supply:
-
220V 50-60Hz 1-2KVA
-
Working condition: Temperature:
-
10°C-40°C
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, BMP, PLT
-
Laser Type:
-
CO2
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Celine
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Willita
-
Weight (KG):
-
60 KG
-
Core Components:
-
Laser source
-
Name:
-
CO2 flying Batch coding expiry date laser marking machine
-
Laser Power:
-
20W/30W
-
Laser source:
-
DAVI Metal radio frequency tube
-
Character height:
-
1-700mm
-
Minimum line width:
-
0.01mm
-
Minimum character:
-
0.1mm
-
Marking speed:
-
10000mm/s
-
Engraving line speed:
-
≤7000mm/s
-
Power supply:
-
220V 50-60Hz 1-2KVA
-
Working condition: Temperature:
-
10°C-40°C
PE PPR PVC PIPE LASER MARKING MACHINE Touch Screen
Fiber CO2 Online Flying Laser Marking Machine Price
Product Description
Application
Advantages
Specification
|
Type
|
Co2 Laser
|
|
|
||
|
Output power
|
20W/30W/50W
|
|
|
||
|
Wavelength
|
1064μm
|
|
|
||
|
Marking depth
|
<=2mm
|
|
|
||
|
Focusing range
|
140mm 210mm optional
|
|
|
||
|
Cooling way
|
Air cooling
|
|
|
||
|
Working temperature
|
5~45 ℃
|
|
|
||
|
Speed monitoring
|
Sync encoder or analog speed
|
|
|
||
|
Repetition frequency
|
20~200khz(Pulse width 30~200nm)
|
|
|
||
|
Marking scope
|
70*70mm 110*110mm 145*145mm 175*175mm optional
|
|
|
||
|
Engraving way
|
Flying engraving, Static engraving, Intelligent engraving
|
|
|
||
|
Engraving content
|
Text, Complex graphics, One dimension (two dimensional) bar codes,
Variable serial number,Date, TXT file, RS232 TCP/IP communication data, PLT format drawings, etc |
|
|
||
|
Engraving advantage
|
Online editing, Multi-faceted engraving, Facing engraving, Accurate records,
Fast shift, Trigger smart memory |
|
|
||
|
Linear speed
|
<=7000mm/s
|
|
|
||
|
Character size
|
0.2~110mm
|
|
|
||
|
Min line width
|
0.05mm
|
|
|
||
|
Repeat accuracy
|
±0.01mm
|
|
|
||
|
Laser
|
Pulsed fiber optic laser
|
|
|
||
|
Power consumption
|
<=250W
|
|
|
||
|
Voltage
|
500W-1.2KW, AC220V 50HZ
|
|
|
||
|
Weight
|
Laser machine 30kg, bracket 50kg
|
|
|
||
