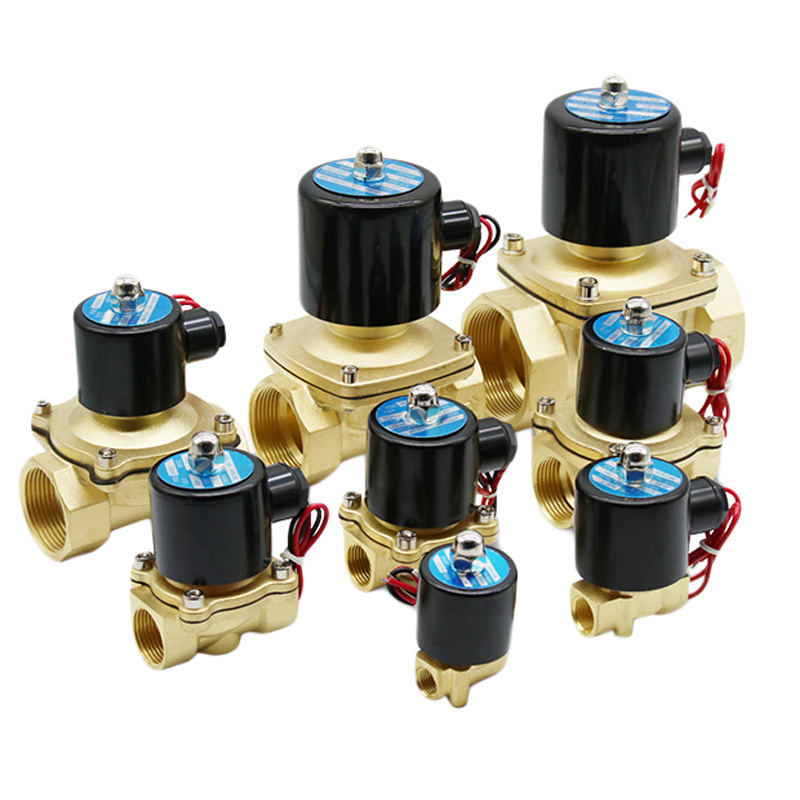

2W Normally Close Electric Brass 12v 24v 220V 1 2 3 inch Solenoid Valve For Water Control Two Way Magnetic Water Solenoid Valve
2W Normally Close Electric Brass 12v 24v 220V 1 2 3 inch Solenoid Valve For Water Control Two Way Magnetic Water Solenoid Valve
2W Normally Close Electric Brass 12v 24v 220V 1 2 3 inch Solenoid Valve For Water Control Two Way Magnetic Water Solenoid Valve
2W Normally Close Electric Brass 12v 24v 220V 1 2 3 inch Solenoid Valve For Water Control Two Way Magnetic Water Solenoid Valve
2W Normally Close Electric Brass 12v 24v 220V 1 2 3 inch Solenoid Valve For Water Control Two Way Magnetic Water Solenoid Valve
2W Normally Close Electric Brass 12v 24v 220V 1 2 3 inch Solenoid Valve For Water Control Two Way Magnetic Water Solenoid Valve
2W Normally Close Electric Brass 12v 24v 220V 1 2 3 inch Solenoid Valve For Water Control Two Way Magnetic Water Solenoid Valve
2W Normally Close Electric Brass 12v 24v 220V 1 2 3 inch Solenoid Valve For Water Control Two Way Magnetic Water Solenoid Valve

2W Normally Close Electric Brass 12v 24v 220V 1 2 3 inch Solenoid Valve For Water Control Two Way Magnetic Water Solenoid Valve

FOB Reference Price: Get Latest Price
≥50 Pieces
US $4.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
2W
Brand Name:
Jery
Valve Operation Type:
2W Series Solenoid Valve
Material:
Brass Solenoid Valve
Voltage:
DC12V,24V AC110V,220V
Temperature:
-5-80℃
Pressure:
0-10 Bar
Coil Protection:
IP 65
Certificate:
RoHS, CE, iso9001
Delivery:
Air sea express

Quick Details

Port Size:
G1/4, G3/8, G1/2, G3/4, G1, G2
Warranty:
1 years
Place of Origin:
Zhejiang, China
Model Number:
2W
Brand Name:
Jery
Valve Operation Type:
2W Series Solenoid Valve
Material:
Brass Solenoid Valve
Voltage:
DC12V,24V AC110V,220V
Temperature:
-5-80℃
Pressure:
0-10 Bar
Coil Protection:
IP 65
Certificate:
RoHS, CE, iso9001
Delivery:
Air sea express

1.Standardized product, Widely Usage. Ideally suited for general purpose air, liquids, gases and steam.
2.Durable design, Solid cast Brass or Stainless Steel Body.
3.Available in a variety of elastomers. Seal material include: NBR, VITON, EPDM, SILICONE, PTFE.
4.Multiple voltage available, from dc 12V/24V to AC24V/110V/220V/230V. Voltage Tolerance: +10% to -10% applicable voltage.
5.Valves are 100% tested.
Model
2W160-10
2W160-15
2W200-20
2W250-20
2W350-35
2W400-40
2W500-50
Working medium
Air、Water、Oil、Gas
Operation
Directing Acting
Acting Type
Normally Closed
Office Size(mm)
16mm

20mm
25mm
35mm
40mm
50mm
CV value
4.8
7.6
12
24
29
48
Port Size
G3/8''
G1/2''
G3/4''
G1
G1 1/4''
G1 1/2''
G2''
Operating pressure
Air:0~0.7Mpa ; Water:0~0.5Mpa ; Oil:0~0.5Mpa; Gas:0~0.7Mpa


Air、Water、Oil:0~2.0MPa


Max. Pressure Resistance
1.05MPa


3.5MPa


Operating Temperature
-5~80℃(The temperature can reach -5~150℃ if change the seal)





Material of Body
Brass
Seal Material
NBR、

Flow Chart


Overall Dimension

Model
A
B
C
D
K
2W160-10
93
55.5
106.5
67.5
G3/8
2W160-15
93
55.5
106.5
67.5
G1/2
2W200-20
97
55.5
113
73
G3/4
2W250-25
102.5
72.5
121
94
G1
2W350-35
134.5
92.5
159
120
G1 1/4
2W400-40
137.5
92.5
165
122
G1 1/2
2W500-50
151.5
123
188
170
G2
Buy Feedback
1.Q: Are you trading company or manufacturer ?
A: Our factory in Ningbo Fenghua and our export office in Ningbo.

2.Q: What type of diaphragm used in oil media?
A: Usually, NBR, VITON, PTFE, and EPDM diaphragms are applicable in oil media.

3.Q: I have been told that 2-way valves only allow fluid flow in one direction is it correct?
A: Generally, 2-way valves allow fluid according to the cylinders. If there is a single-acting cylinder fluid flow in a single direction when a double-acting cylinder being used, fluid is able to flow in both directions.

4.Q: I am looking for a valve factory for a long term business relationship. What product you main specialized?
A: We've been in valve field since 2000s, mainly for solenoid valve, brass valve,screw air compressor solenoid valve, automobile valve,air treatment units and air suspension.

5.Q: I have a drawing for customized valve, can you do it?
A:Sure, we have our own CNC machine. No matter curved surface or complex process can be finished.

6.Q: Do you have stock for RTS?
A: Conventional products are fully stock on warehouse, once you place order, it will be send out in 1 day.

7.Q: We are concerned about the technical support after using your product. Any technical engineers can be provided?
A: Yes, our engineer 24 hrs onlineonce you contact.

8.Q: What methods of payment do you accept?
A: T/T, Paypal and credit card can be accept.

9.Q: What is the difference between a direct acting solenoid valve and a solenoid- pilot operated valve?
A: In a direct acting valve, the main body or poppet is moved using magnetic force generated by the electrical coil to shift the valve. In a solenoid-pilot operated valve, the main body or plunger is moved using force developed from the available pilot pressure. The coil in this case is used to control the pilot for the pilot piston.

10.Q: How many materials can be used apply to solenoid valve ?
A: Stainless steel 316L(Sanitary grades), Stainless Steel 316&304, Brass and cast steel.

11.Q:About samples
A:We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea,by air,by express ect. Any question about samples, please contact us.

12.Q:For OEM products
A:We will finish the production within 20 days after payment has been confirmed.
