Table 3u industrial matx computer server case cpu cabinet server chassis with atx power supply

Table 3u industrial matx computer server case cpu cabinet server chassis with atx power supply

FOB Reference Price: Get Latest Price

≥1 Sets

US $122

≥51 Sets

US $115

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Plastic, Steel

Brand Name:: qway

Place of Origin:: Guangdong, China

Main Board:: 9.6"*9.6"(245*245MM)

Hard Disk:: 4xhot swap bay+4x3.5" hdd

Fan:: Two 8025 Fans

CD-ROM:: 1*5.25-inch CD-ROM

Power:: ATX PSU

Expansion Slot:: Five full height and vertical slots

Case Material:: Ma Steel flowers-free zinc plating

USB:: usb2.0/3.0

Packaging size:: 26*54.5*57CM

Quick Details

Application:: Server

Type:: Horizontal, 3U server case

Form Factor:: MicroATX

Material:: Plastic, Steel

Brand Name:: qway

Place of Origin:: Guangdong, China

Main Board:: 9.6"*9.6"(245*245MM)

Hard Disk:: 4xhot swap bay+4x3.5" hdd

Fan:: Two 8025 Fans

CD-ROM:: 1*5.25-inch CD-ROM

Power:: ATX PSU

Expansion Slot:: Five full height and vertical slots

Case Material:: Ma Steel flowers-free zinc plating

USB:: usb2.0/3.0

Packaging size:: 26*54.5*57CM

Product Description

Table 3u industrial matx computer server case cpu cabinet server chassis with atx power supply

3U 4bay 19inch Rackmount Server Case

The 3U 4 hot swap bays chassis takes away optical drives, drive cages and other clutter and leave a big open platform allowing for creative modification.You can still add storage drives at the top of the chassis on a cross member.

Main Points

4x hot-swap bays +4x3.5" hard drive or 4xhot swap bays+3x3.5" +1x2.5"hdd for maximum configuration flexibility .,also 2-24 bays are alternative

Support mainboard 9.6"*9.6"(245*245MM),compatible with Micro ATX ,Mini ITX mainboard

Come with two standard 80mm fans for superior airflow

User friendly design on lifting handle (stand-alone)

Truly isolated anti-vibration design on internal HDD and drive cages
Support ATX PSU

Come with one 5.25" optical drive

Card retainers to hold five full height and vertical add-on cards

Support all operating systems

CE,RoHS Compliant

Application

All typical industrial market segments:

1.Data acquisition for Gauging, Statistical Process Control and automatic machinetool control applications
2.Stand-alone or networked controller for data collection

3.Handling equipment, motion control

4. Manufacturing, cell controllers

5.General automation and factory applications

Technical Details

Model	R339F-4C
Dimensions	482(W)390D)133MM(H)
Main Board	9.6"9.6"(245245MM)
Hard Disk	4x hot-swap bays +4x3.5" hard drive or 4xhot swap bays+3x3.5" +1x2.5"hdd
CD-ROM	1*5.25-inch CD-ROM
Power	ATX PSU
Fan	Two 8025 Fans
Expansion Slot	Five full height and vertical slots
Panel Setting	One display;One USB3.0;Two USB2.0;Power Switch/Power LED;Removable Panel Dust-proof Cotton is easy for use
Case Material	Ma Steel flowers-free zinc plating
Material Thickness	1.2MM
Packaging size	2654.557CM
G.W	10.11KG
N.W	7.585KG

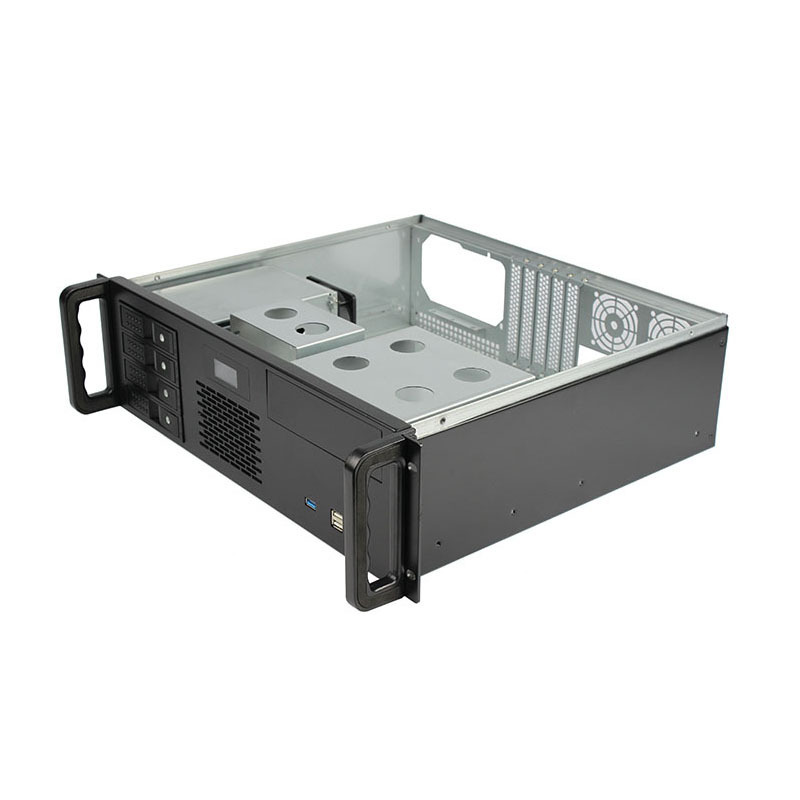

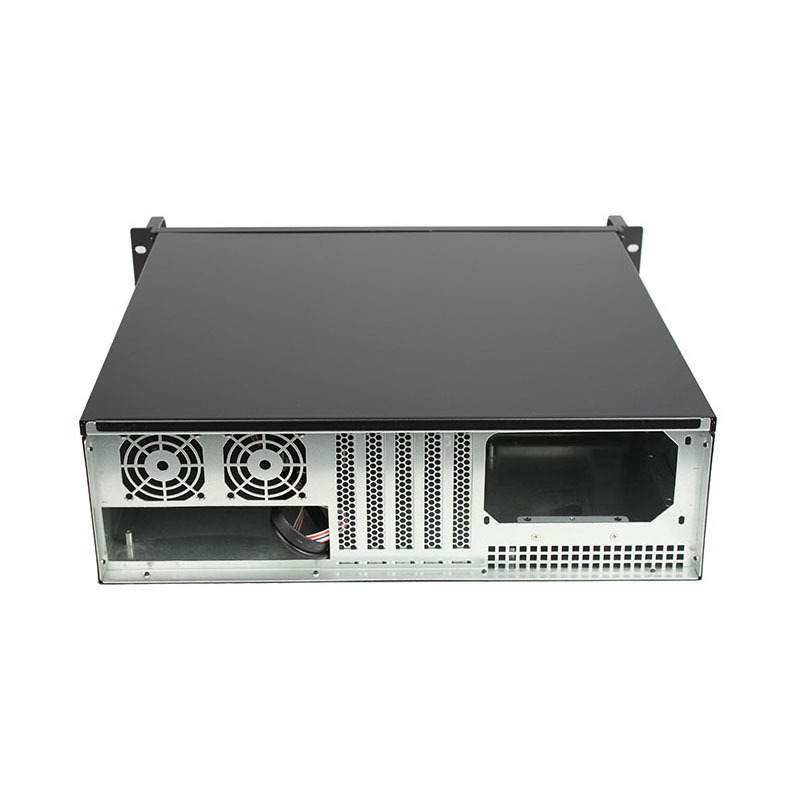

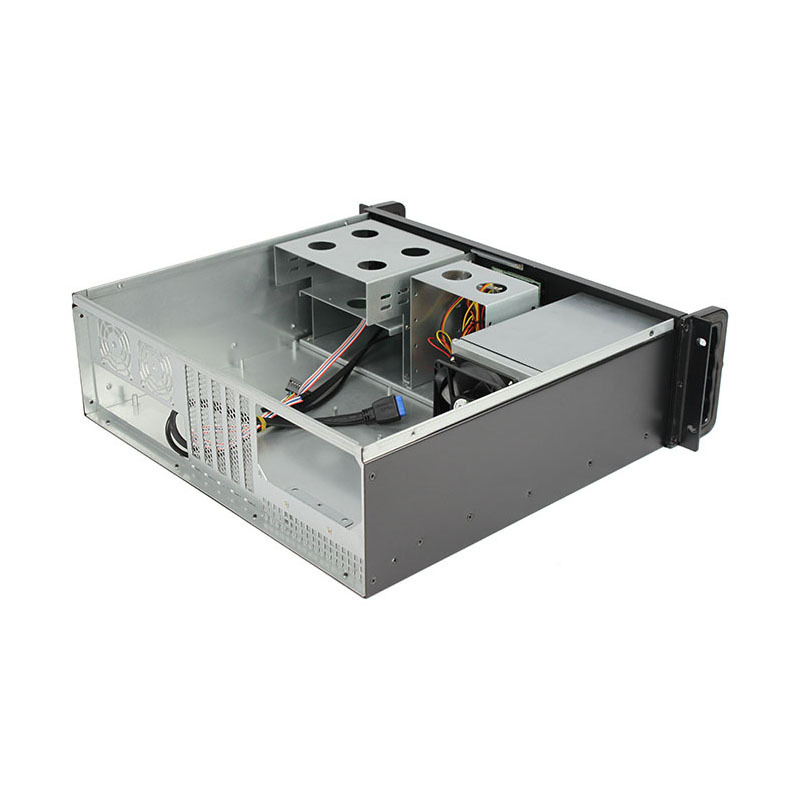

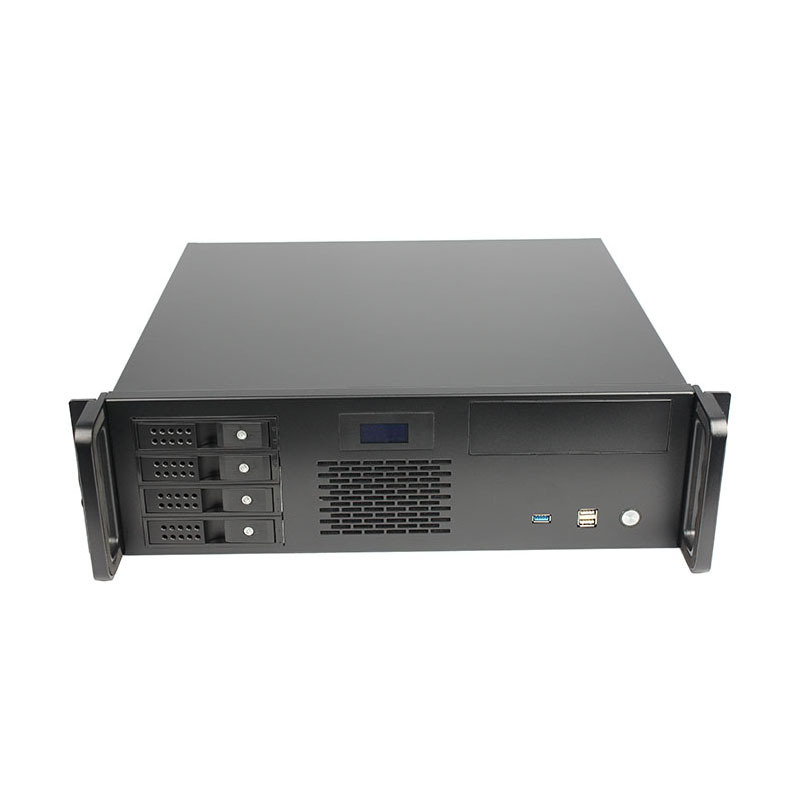

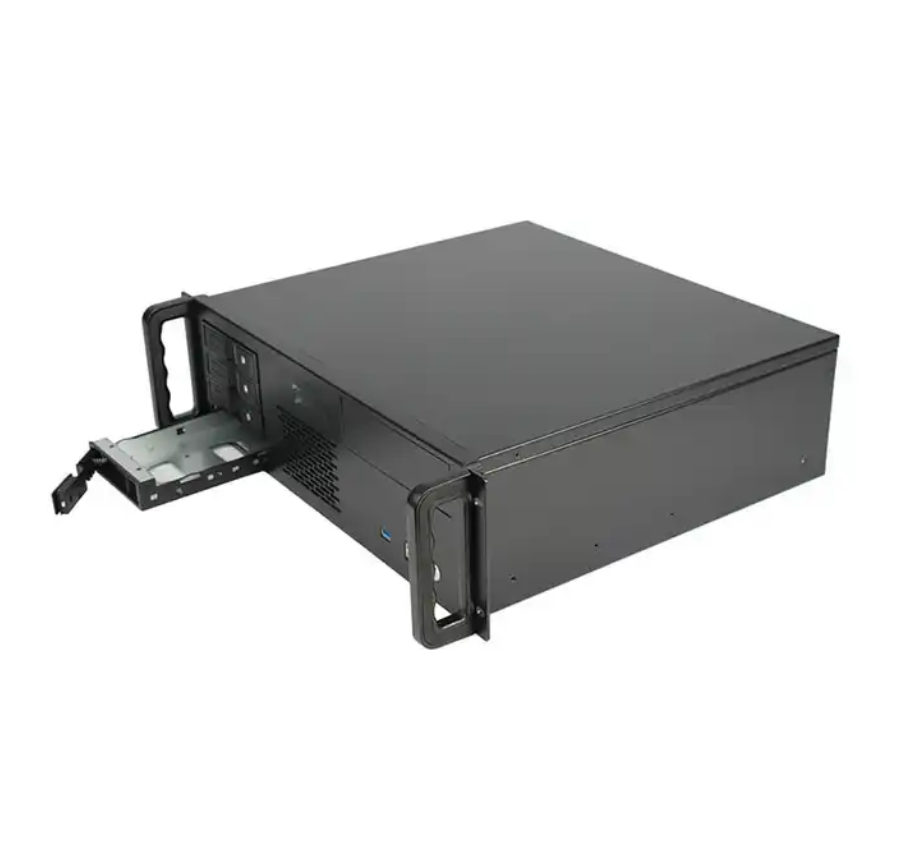

Detailed Images

Packing & Delivery

Packing Materials: Double carton and PE foam

Packing Size: 26*54.5*57CM
Weight: 10.11KG
Delivery: 1-3 days for sample order,3-7 days for large quantity, after payment we'd ship the cargo via DHL,FedEx,UPS,TNT, or your forwarder ect.
