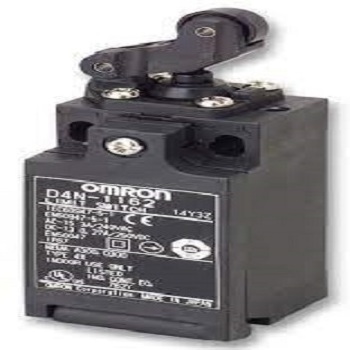

Safety Limit Switch D4N-2162 Switch Snap Action Dpst 3A 240V NO/NC Chassis Mount Screw Terminal
Safety Limit Switch D4N-2162 Switch Snap Action Dpst 3A 240V NO/NC Chassis Mount Screw Terminal
Safety Limit Switch D4N-2162 Switch Snap Action Dpst 3A 240V NO/NC Chassis Mount Screw Terminal
Safety Limit Switch D4N-2162 Switch Snap Action Dpst 3A 240V NO/NC Chassis Mount Screw Terminal
Safety Limit Switch D4N-2162 Switch Snap Action Dpst 3A 240V NO/NC Chassis Mount Screw Terminal
Safety Limit Switch D4N-2162 Switch Snap Action Dpst 3A 240V NO/NC Chassis Mount Screw Terminal
Safety Limit Switch D4N-2162 Switch Snap Action Dpst 3A 240V NO/NC Chassis Mount Screw Terminal
Safety Limit Switch D4N-2162 Switch Snap Action Dpst 3A 240V NO/NC Chassis Mount Screw Terminal

Safety Limit Switch D4N-2162 Switch Snap Action Dpst 3A 240V NO/NC Chassis Mount Screw Terminal

FOB Reference Price: Get Latest Price
≥5 Pieces
US $22.22
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
D4N-2162
Protection Level:
IP67
Operating Temperature:
-30°C ~ 70°C
Max. Current:
3A
Circuit:
DPST-NO/NC
Switch Function:
On-Mom, Off-Mom
Mounting Type:
Chassis Mount
Termination Style:
Screw Terminal
Operating Force:
510gf
Release Force:
82gf
Operating Position:
1.457" (37.0mm)
Pretravel:
0.157" (4.0mm)
Differential Travel:
0.060" (1.5mm)
Overtravel:
0.197" (5.0mm)
Certification:
C1S541201034462

Quick Details

Max. Voltage:
250V
Place of Origin:
Taiwan, China
Brand Name:
OMRON
Model Number:
D4N-2162
Protection Level:
IP67
Operating Temperature:
-30°C ~ 70°C
Max. Current:
3A
Circuit:
DPST-NO/NC
Switch Function:
On-Mom, Off-Mom
Mounting Type:
Chassis Mount
Termination Style:
Screw Terminal
Operating Force:
510gf
Release Force:
82gf
Operating Position:
1.457" (37.0mm)
Pretravel:
0.157" (4.0mm)
Differential Travel:
0.060" (1.5mm)
Overtravel:
0.197" (5.0mm)
Certification:
C1S541201034462
Product Description
Specification
item
value
Certification
C1S541201034462
Whether the smart
NO
Place of Origin
Taiwan, China
Brand Name
OMRON
Model Number
D4N-2162
Protection Level
IP67
Operating Temperature
-30°C ~ 70°C
Max. Current
3A
Max. Voltage
250V
Circuit
DPST-NO/NC
Switch Function
On-Mom, Off-Mom
Mounting Type
Chassis Mount
Termination Style
Screw Terminal
Operating Force
510gf
Release Force
82gf
Operating Position
1.457" (37.0mm)
Pretravel
0.157" (4.0mm)
Differential Travel
0.060" (1.5mm)
Overtravel
0.197" (5.0mm)
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
