Quick Details
-
Machinery Capacity:
-
1000L-15000L, Customization
-
Marketing Type:
-
Hot sale 2023
-
Material:
-
SUS304/SUS316/red Copper
-
Capacity:
-
10BBL-50BBL
-
Welding:
-
100% TIG Welding
-
Heating method:
-
Steam\Electric\Direct Fire
-
Insulation:
-
Polyurethane/rockwool 80-100mm
-
Thickness:
-
Inner 3mm External 2mm
-
Polishing:
-
0.2~0.4um
-
Cleaning way:
-
CIP Cleaning Ball
-
Combination method:
-
flexible
-
After-sales Service Provided:
-
Overseas Service Provided
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Tiantai
-
Weight:
-
1000 KG
-
Machinery Capacity:
-
1000L-15000L, Customization
-
Marketing Type:
-
Hot sale 2023
-
Material:
-
SUS304/SUS316/red Copper
-
Capacity:
-
10BBL-50BBL
-
Welding:
-
100% TIG Welding
-
Heating method:
-
Steam\Electric\Direct Fire
-
Insulation:
-
Polyurethane/rockwool 80-100mm
-
Thickness:
-
Inner 3mm External 2mm
-
Polishing:
-
0.2~0.4um
-
Cleaning way:
-
CIP Cleaning Ball
-
Combination method:
-
flexible
-
After-sales Service Provided:
-
Overseas Service Provided
Modularity
Our concept of modularity allows the brewery to have a brewhouse that is always adequate for the real production need.
Our concept of modularity allows the brewery to have a brewhouse that is always adequate for the real production need.
|
BREWHOUSE
|
Mash Tun
|
Lauter Tun
|
Boil Kettle
|
Whirlpool Tank
|
Hot Liquor Tank
|
||
|
2-vessel
|
multifunctional tank
|
|
multifunctional tank
|
|
√
|
||
|
|
multifunctional
|
|
|
tank
|
√
|
||
|
3-vessel
|
multifunctional tank
|
|
√
|
√
|
√
|
||
|
|
√
|
√
|
multifunctional tank
|
|
√
|
||
|
|
multifunctional
|
√
|
tank
|
√
|
√
|
||
|
4-vessel
|
√
|
√
|
√
|
√
|
√
|
||
MULTIFUNCTIONAL TANK
for the realization of two or more processes in one vessel
Our 4-vessel brewhouse is the best way to maximize production and cost efficiency. There’s a Mash Tun, Lauter Tun, Brew kettle and Whirlpool for a complete, un-compromised brewing process. Where smaller designs use multi-function vessels for mashing or boiling,
4-vessel allows for more brewing cycles per day, with flexibility built in, and no compromise on wort quality.

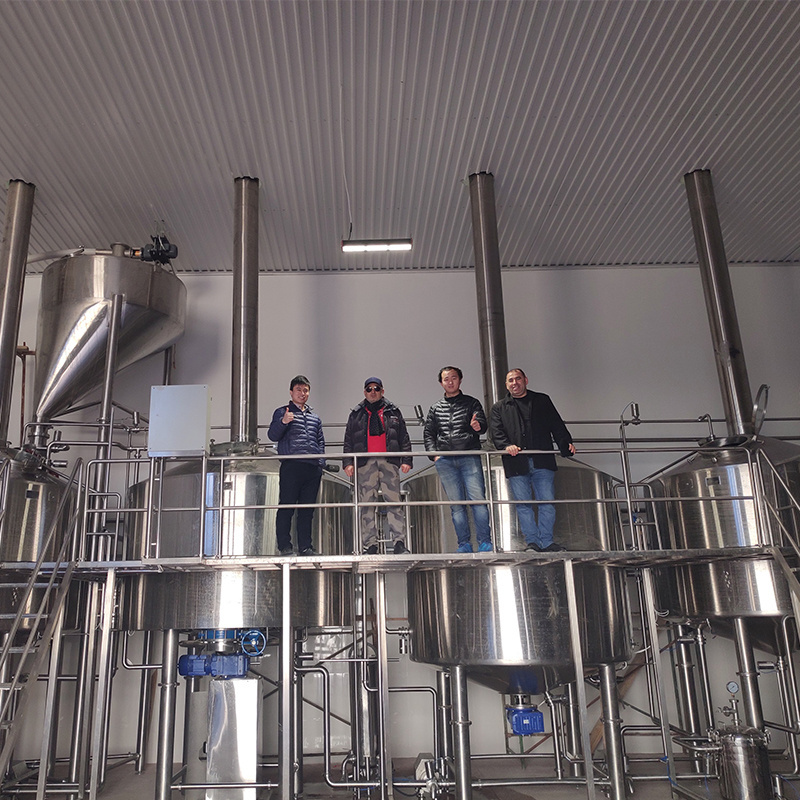

TIANTAI’s 4-Vessel Brewhouses
4-vessel allows for more brewing cycles per day, with flexibility built in, and no compromise on wort quality.
Our brewhouses are manufactured for every type of brew and we can offer a fully automated PLC system, a semi-automated brewhouse system or completely manual brewhouse, depending on specific requirements. Our breweries range from as small as 1HL to 50HL and larger.
Full stainless-steel construction of all wetted parts, platforms, legs, staircases, hand railings, flues, fixtures, and fittings.
Sanitary
⚪ All systems and vessels are CIP designed for ease of cleaning.
⚪ Check valve and air filter for wort aeration system to prevent wort seepage into CO2 tube.
⚪ All stainless-steel piping is purged welded.
⚪ Suggested cleaning chemicals and procedures provided prior to system start up.
Full stainless-steel construction of all wetted parts, platforms, legs, staircases, hand railings, flues, fixtures, and fittings.
Heating Option
We have a range of kettle heating options including electric, direct fire or steam, depending on site and local utility costs and the scope of your project.
⚪ Electric - Available on 200L to 3000L.
⚪ Direct Fire - Available on 500L, 800L, 1000L and 1500L.
⚪ Steam - Available on 500L to 15000L.
We have a range of kettle heating options including electric, direct fire or steam, depending on site and local utility costs and the scope of your project.
⚪ Electric - Available on 200L to 3000L.
⚪ Direct Fire - Available on 500L, 800L, 1000L and 1500L.
⚪ Steam - Available on 500L to 15000L.
Sanitary
⚪ All systems and vessels are CIP designed for ease of cleaning.
⚪ Check valve and air filter for wort aeration system to prevent wort seepage into CO2 tube.
⚪ All stainless-steel piping is purged welded.
⚪ Suggested cleaning chemicals and procedures provided prior to system start up.
Fermentation System
Recommend Products
|
Modular
|
Configuration
|
Quantity
|
|
1.Malt Milling System
|
Mill machine
|
1 unit
|
|
|
Grist case
|
optional
|
|
|
Flexible conveyor
|
optional
|
|
2.Brewhouse System
|
Mash tun
|
1 set
|
|
|
Lauter tun
|
|
|
|
Kettle tun
|
|
|
|
Whirlpool tun
|
|
|
|
Hot water tank
|
optional
|
|
|
Cold water tank
|
optional
|
|
|
Plate and frame heat exchanger
|
1 unit
|
|
|
Accessories
|
1 set
|
|
3.Fermentation System
|
Fermentation tank
|
6 units
|
|
|
Accessories
|
1 set
|
|
4.Cooling System
|
Glycol water tank
|
1 unit
|
|
|
Chiller
|
2 units
|
|
|
Accessories
|
1 set
|
|
5.CIP System
|
Acid tank
|
1 unit
|
|
|
Caustic tank
|
1 unit
|
|
|
Sanitizer tank
|
1 unit
|
|
|
Accessories of the CIP System
|
1 set
|
|
6. Control System
|
Automatic/Semi-auto/Manual: PID/PLC control
|
1 set
|
|
7. Filtering System
|
Bright beer tank
|
optional
|
|
|
Candle type diatomite filter/Membrane filter/Bag filter
|
optional
|
|
8.Filling System
|
Glass bottle line
|
optional
|
|
|
Canning line
|
optional
|
|
|
Keg system
|
optional
|
