- Product Details
- {{item.text}}
Quick Details
-
Return Force (kN):
-
1600 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weihui
-
Year:
-
2024
-
Voltage:
-
optional
-
Dimension(L*W*H):
-
1450*1200*3200
-
Weight (T):
-
5 T
-
Model Number:
-
YH32-315
-
Motor Power (kw):
-
18.5 kw
-
Marketing Type:
-
New Product 2024
Quick Details
-

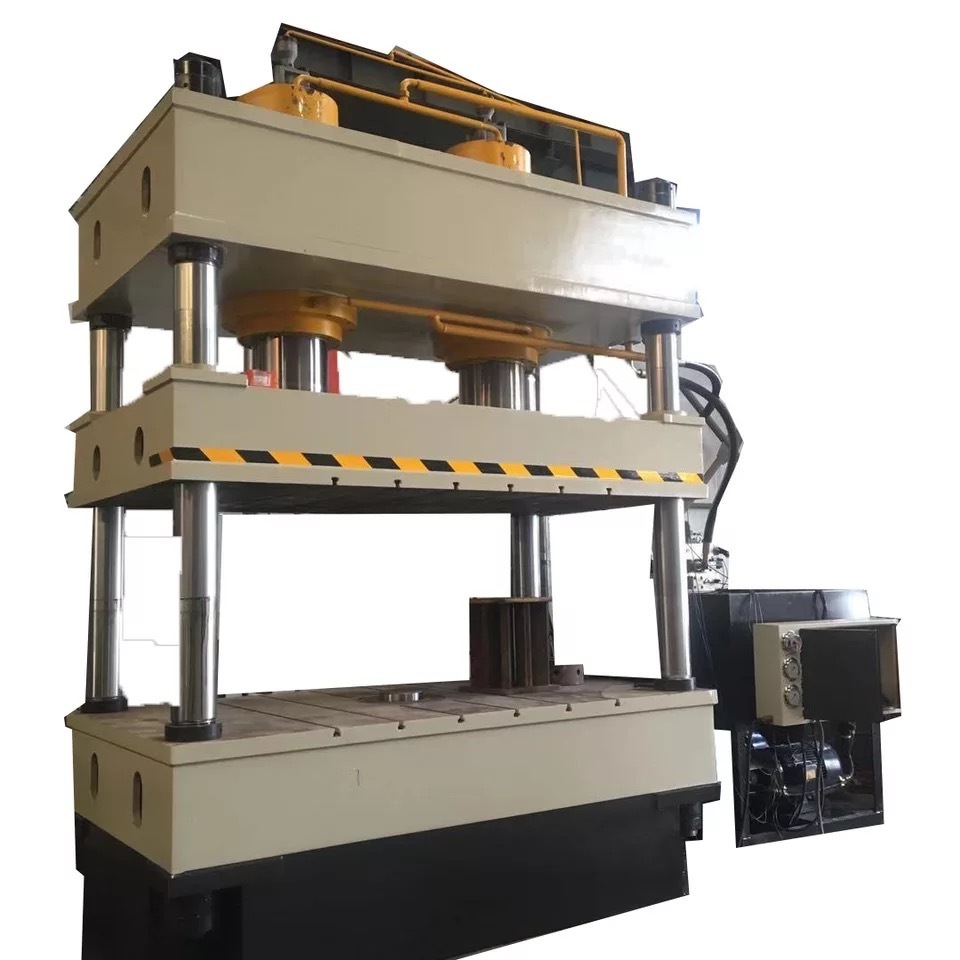

Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
800
-
Ejector Force (kN):
-
3150
-
Return Force (kN):
-
1600 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weihui
-
Year:
-
2024
-
Voltage:
-
optional
-
Dimension(L*W*H):
-
1450*1200*3200
-
Weight (T):
-
5 T
-
Model Number:
-
YH32-315
-
Motor Power (kw):
-
18.5 kw
-
Marketing Type:
-
New Product 2024
Products Description
Product Paramenters
|
Project
|
|
315T
|
400T
|
500T
|
630T
|
800T
|
1000T
|
1250T
|
2000T
|
|
|
Normal force (kn)
|
|
3150
|
4000
|
5000
|
6300
|
8000
|
10000
|
12500
|
20000
|
|
|
Maximum working pressure of liquid
|
|
28
|
26
|
28
|
28
|
25
|
25
|
25
|
25
|
|
|
Oil cylinder maximum trip
|
|
600
|
700
|
900
|
900
|
900
|
900
|
900
|
900
|
|
|
Maximum opening (mm)
|
|
1100
|
1200
|
1500
|
1500
|
1500
|
1500
|
1600
|
1600
|
|
|
Table effective area (mm) |
right and left |
1260 |
1400 |
1400
|
1600
|
1500
|
1500
|
1700
|
2000 |
|
|
|
forward and backward |
1160 |
1250 |
1400
|
1600
|
1500
|
1500
|
1600
|
2000 |
|
|
Fast forward speed (mm/s)
|
|
130
|
130
|
130
|
130
|
100
|
80
|
80
|
80
|
|
|
Feeding speed (mm/s)
|
|
8-13
|
8-32.5
|
12-26
|
12-26
|
5-12
|
6-10
|
6-10
|
6-10
|
|
|
Return speed (mm/s)
|
|
60
|
70
|
70
|
70
|
60
|
50
|
45
|
40
|
|
|
Motor power (kw)
|
|
15
|
18.5
|
15*2
|
18.5*2
|
37*2
|
37*2
|
37*2
|
37*2
|
|
|
Bottom cylinder pressure (kn)
|
|
630
|
1000
|
1000
|
1000
|
1250
|
1250
|
2000
|
2500
|
|
|
Bottom stroke (mm)
|
|
300
|
300
|
300
|
300
|
350
|
350
|
450
|
450
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
