Quick Details
-
Brand Name:
-
hianh
-
Voltage:
-
220V.380V410V
-
Power:
-
50KW
-
Dimension(L*W*H):
-
2500*2500*11600mm(adjustable)
-
Weight (KG):
-
42000
-
After-sales Service Provided:
-
Oversea Installation
-
Product name:
-
Spray Paint Line
-
Application:
-
Surface Treatment
-
Technology:
-
Electrostatic Powder Spraying Technology
-
Keywords:
-
Paint Spraying Equipment
-
Spraying Guns:
-
Gema Guns
-
Coating color:
-
customized
-
Advantage:
-
Fast Color change
-
Heating system:
-
Gas Diesel Electric LPG
-
Control System:
-
PLC+Touch Screen Automatic
Quick Details
-
Machine Type:
-
Industrial machine, Spray Booths, Painting Equipment, Plc Controller Programmable Logic Controller, Pre-treatment Equipment, Conveying Equipment, Drying Oven, Curing oven, Coating Equipment
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
hianh
-
Voltage:
-
220V.380V410V
-
Power:
-
50KW
-
Dimension(L*W*H):
-
2500*2500*11600mm(adjustable)
-
Weight (KG):
-
42000
-
After-sales Service Provided:
-
Oversea Installation
-
Product name:
-
Spray Paint Line
-
Application:
-
Surface Treatment
-
Technology:
-
Electrostatic Powder Spraying Technology
-
Keywords:
-
Paint Spraying Equipment
-
Spraying Guns:
-
Gema Guns
-
Coating color:
-
customized
-
Advantage:
-
Fast Color change
-
Heating system:
-
Gas Diesel Electric LPG
-
Control System:
-
PLC+Touch Screen Automatic
Product Details
Our mainly products include: Manual powder coating machine, Automatic powder coating line, Spray painting equipment, Pretreatment System, Drying Oven, Powder Spraying Gun, Reciprocator, Fast Automatic Color Change Equipment, Powder Coating Booth, Powder Recovery Equipment, Conveyor Chains, Curing Oven, etc.All the systems are widely used on the applications of automotive, home and office appliance, machines industry, metal fabrications and so on.And through to CE, ISO 9001 standards.
*Pollution free operation*Safe to operate
*Maximum recovery efficiency
*Durability
*Quick color change
*Maximum recovery efficiency
*Durability
*Quick color change
Machine description:
– We could customized powder coating lines according to customer’s product feature and requirements like product’s shape, size, surface condition and size of workshop for the spray booth and curing oven etc.
– We could help customers find the best solution to the coating system.
– We will provide design draft, production, installation, commissioning and training.
Basic Process (reference)
Pre-treatment:
hanging → degreasing soaking (3-5min, 40-50℃) → clear water soaking I (0.5-1 min) → clear water soaking II (0.5-1 min) → phosphating soaking (1-2min) → Soak in clean water I (0.5-1 min) → soak in clean water II (0.5-1 min) → hang down → drain and dry.
(can be easily changed according to the work profiles surface condition)
Pre-treatment has two treatments: dipping and spray (can choose one or both, depending on the work profiles)
After the pre-treatment, the coating powder will firmly combine with the metal surface, so that the product can obtain high quality coating.
Powder spray coating: upper hanging→spraying (automatic, manual spraying)→baking curing (180-220℃ adjustable, 20min)→cooling→down hanging.
2. Transportation

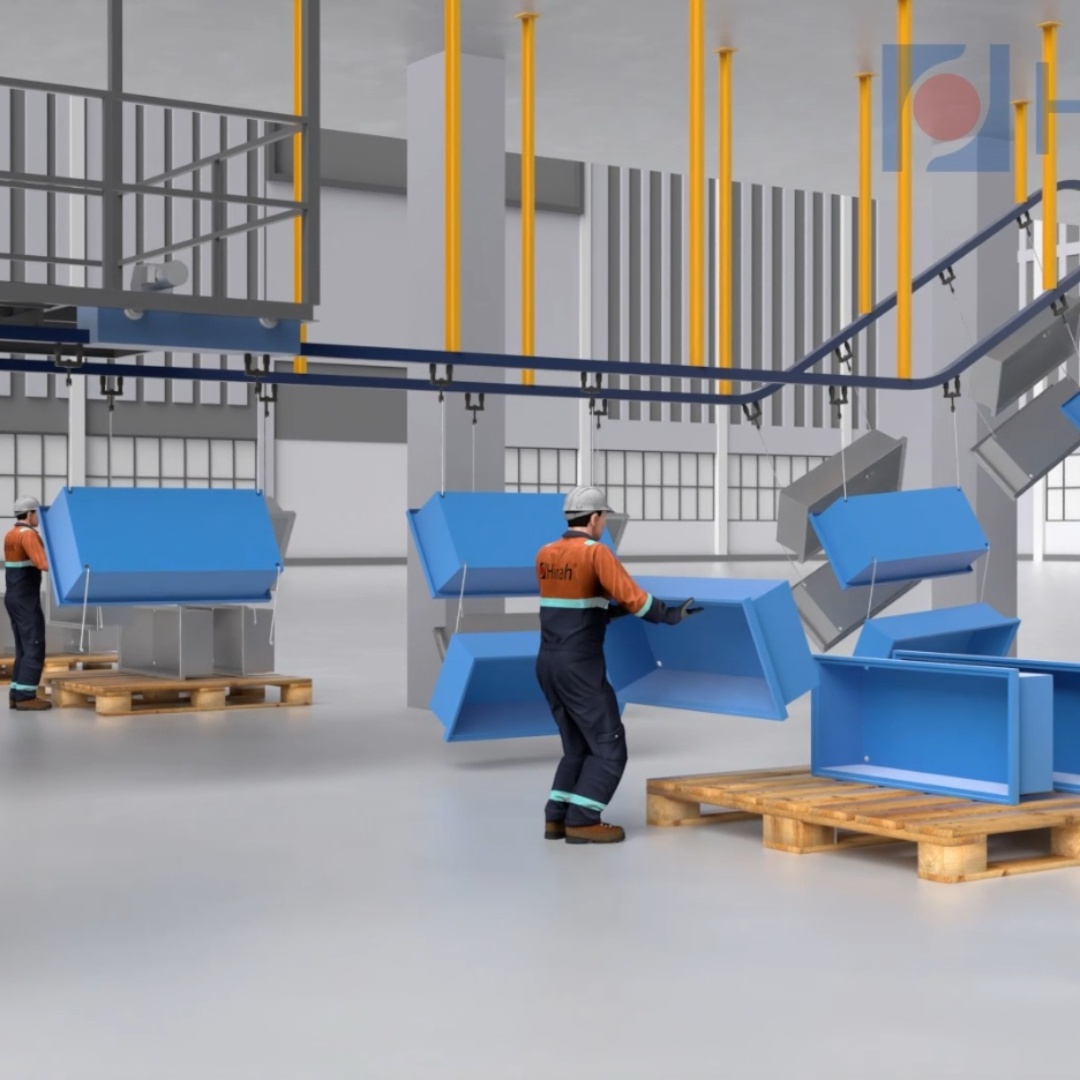

Overhead conveyor transport with hanger
1. stable metal support frame
2. emergency stop device
3. chain speed adjustable: 0-4M/min
4. easy to assemble and disassemble
The transportation is according to the work profiles shape, some are over head conveyor, some are vertical such as for the car filters and some other small parts.
3. Powder coating booth and powder recovery system
Manual powder coating spray
1. manual electrostatic powder coating machine
2. manual powder booth with filters powder recovery system
Automatic powder coating spray
1. automatic spray booth
2. reciprocator
3. auto spray guns (2-8pcs)
4. powder recovery system (cyclone)
Mono cyclone systems can typically have a quick color change and a powder recovery efficiency of approximately 95%.
4. Powder curing oven
powder curing channel oven
1. Bridge structure 2. temperature around 180-220 degree 3. temperature auto control system 4. digital display for temperature 5. heating source can be electric, gas or diesel
The powder curing oven is made of 150mm rock wool board with galvanized steel wall, features durable and heat-resistent.
|
Process
|
Mode
|
Temperature (°C)
|
Time (mins)
|
Remark
|
|
|
|
Workpiece Loading
|
Automatic/Manual
|
RT
|
|
|
|
|
|
Pretreatment
|
Automatic
|
RT-50
|
|
as per the chemical
|
|
|
|
Drying
|
Automatic
|
150-180
|
10-15
|
gas, electric,diesel
|
|
|
|
Powder Coating
|
Automatic/Manual
|
RT
|
3-5
|
|
|
|
|
Curing
|
Automatic
|
180-200
|
15-25
|
|
|
|
|
Cooling
|
|
RT
|
|
|
|
|
|
Workpiece Unloading
|
Automatic/Manual
|
RT
|
|
|
|
|
Project Case
Installation Site
Packaging & Shipping
Company Introduction
Since 1990,From simple manual spraying to automatic powder spraying system. We can provide you with innovative, rational and economical solutions. We can support you with advanced technologies.Delivering the best powder coating equipments and turn-key solutions. We’ve built thousands of optimal customized lines and systems for powder coating operations across China and around the world.
Our continuous research on the field as well as our constantly developing techniques and innovative nature of our
engineering dpt. enable our customers to catch up to the latest developments by modernizing their equipment partly or wholly, so as to improve performance, increase profits and maintain their competitiveness in the world of trade. Our company has passed ISO9001 certification,CE certification, and has obtained more than 70 patents.
engineering dpt. enable our customers to catch up to the latest developments by modernizing their equipment partly or wholly, so as to improve performance, increase profits and maintain their competitiveness in the world of trade. Our company has passed ISO9001 certification,CE certification, and has obtained more than 70 patents.
Partner
Customer Visit
FAQ
Are you a trader or a factory ?We are manufacturer and exporter.
Our own factory was found in 1990,
Our export office was established in 2014.
What should I provide if interested in your powder coating equipment ?
A.The material/size（max）/weight（max）of your workpieces.
B.How many of your daily output(one day=8 hours,one month=30 days)?
C.What heating power do you prefer: electric,gas, diesel or coal?
D.The size of your factory(length, width and height)?
How to ensure the quality of the equipment ?
A,We have hundreds of patents and passed the IS9001: 2015 quality management system certification.
B,The Technical Review Committee,reasonably determines and divides the stages of design, production, installation and
commissioning, and formulates detailed progress plans for each stage， Strengthen the quality assurance system and quality protection measures of equipment manufacturing department.
C,We manning quality inspectors specially to control the processing quality of product strictly.
How to install equipment after purchasing your equipment ?
A,We will provide installation information and installation videos.
B,Our engineers will guide the installation and run the equipment.
C,After the debugging, will provide complete training and track customer device usage.
How is your company's after-sales service done?
A,Provide the list of consumables to assist customers in establishing a comprehensive equipment maintenance system.
B,After the equipment is delivered to the customer, our company will send professionals to track the customer equipment for 60 days.
C,If customer has a device failure in the process of using the device, our company will operate the device remotely through the computer network through the authorization given by the customer, and eliminate all equipment failure problems. D,Any problems with the equipment, our company guarantees to give solutions within 12 hours.
Our own factory was found in 1990,
Our export office was established in 2014.
What should I provide if interested in your powder coating equipment ?
A.The material/size（max）/weight（max）of your workpieces.
B.How many of your daily output(one day=8 hours,one month=30 days)?
C.What heating power do you prefer: electric,gas, diesel or coal?
D.The size of your factory(length, width and height)?
How to ensure the quality of the equipment ?
A,We have hundreds of patents and passed the IS9001: 2015 quality management system certification.
B,The Technical Review Committee,reasonably determines and divides the stages of design, production, installation and
commissioning, and formulates detailed progress plans for each stage， Strengthen the quality assurance system and quality protection measures of equipment manufacturing department.
C,We manning quality inspectors specially to control the processing quality of product strictly.
How to install equipment after purchasing your equipment ?
A,We will provide installation information and installation videos.
B,Our engineers will guide the installation and run the equipment.
C,After the debugging, will provide complete training and track customer device usage.
How is your company's after-sales service done?
A,Provide the list of consumables to assist customers in establishing a comprehensive equipment maintenance system.
B,After the equipment is delivered to the customer, our company will send professionals to track the customer equipment for 60 days.
C,If customer has a device failure in the process of using the device, our company will operate the device remotely through the computer network through the authorization given by the customer, and eliminate all equipment failure problems. D,Any problems with the equipment, our company guarantees to give solutions within 12 hours.
