Quick Details
-
Brand Name:
-
maXpeedingrods
-
Car Model:
-
for BMW
-
Center to center length:
-
135 mm
-
Big end diameter:
-
52 mm
-
Small end diameter:
-
22 mm
-
Fit for:
-
for BMW M30B35 Big 6 engine M30 L6
-
Quality:
-
6 Pieces a set
-
Key words:
-
H Beam Rods, 4340 EN24 Connecting Rods
-
Key words 2:
-
Racing Rods, TUV Certification Con Rods
-
Bolts:
-
Including Genuine 3/8" ARP 2000 bolts
-
HP Rating:
-
Around 800HP
-
SKU:
-
CR-BW-135B-6
Quick Details
-
OE NO.:
-
CR-BW-135B-6
-
Warranty:
-
2 years
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
maXpeedingrods
-
Car Model:
-
for BMW
-
Center to center length:
-
135 mm
-
Big end diameter:
-
52 mm
-
Small end diameter:
-
22 mm
-
Fit for:
-
for BMW M30B35 Big 6 engine M30 L6
-
Quality:
-
6 Pieces a set
-
Key words:
-
H Beam Rods, 4340 EN24 Connecting Rods
-
Key words 2:
-
Racing Rods, TUV Certification Con Rods
-
Bolts:
-
Including Genuine 3/8" ARP 2000 bolts
-
HP Rating:
-
Around 800HP
-
SKU:
-
CR-BW-135B-6
Specification
Advantages
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
|
For BMW M30B35 Big 6 engine M30 L6 4340 Forged Steel H-Beam Connecting Rod
|
|
|
|
|||
|
Fit for
|
For BMW M30B35 Big 6 engine M30 L6
|
|
|
|||
|
Material
|
Forged 4340 aircraft chrome moly quality steel
|
|
|
|||
|
Quantity
|

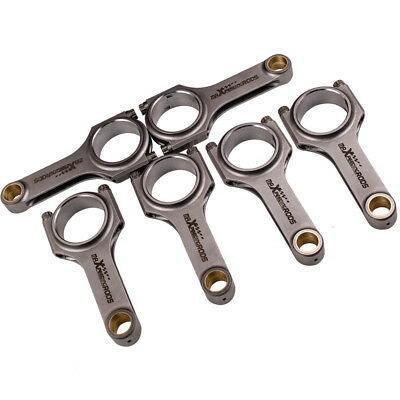

6 Pieces as showing in picture
|
|
|
|||
|
Bolts
|
Including Genuine 3/8" ARP 2000 bolts
|
|
|
|||
|
Weight tolerance
|
Balanced to +/- 1 gram in set
|
|
|
|||
|
Note
|
Extra cost for upgrading to ARP L19 bolts
|
|
|
|||
|
Warranty
|
2 years warranty.
|
|
|
|||
|
Dimensions
|
|
|
|
|||
|
Center to center length
|
135mm
|
|
|
|||
|
Big end diameter
|
52mm
|
|
|
|||
|
Small end diameter
|
22mm
|
|
|
|||
|
Big end width
|
23.876mm
|
|
|
|||
|
Small end width
|
23.88mm
|
|
|
|||
|
HP Rating
|
Around 800HP
|
|
|
|||
|
Rods Bolts Torque
|
48ft with regular moly for 3/8"threads size ARP2000 rod bolts
|
|
|
|||
