Quick Details
-
Function:
-
charging
-
Brand Name:
-
YXLN
-
Model Number:
-
YX-120W
-
Input voltage and current:
-
100-130Vac / 200-240Vac 50HZ/60HZ
-
output voltage and current:
-
12v 5a 24v 4a 36v 3a 48v 2a 60v 1.5a
-
Maximum Output Power:
-
120w
-
Place of Origin:
-
Guangdong, China
-
Is LED Lamp Illumination:
-
No
-
Product name:
-

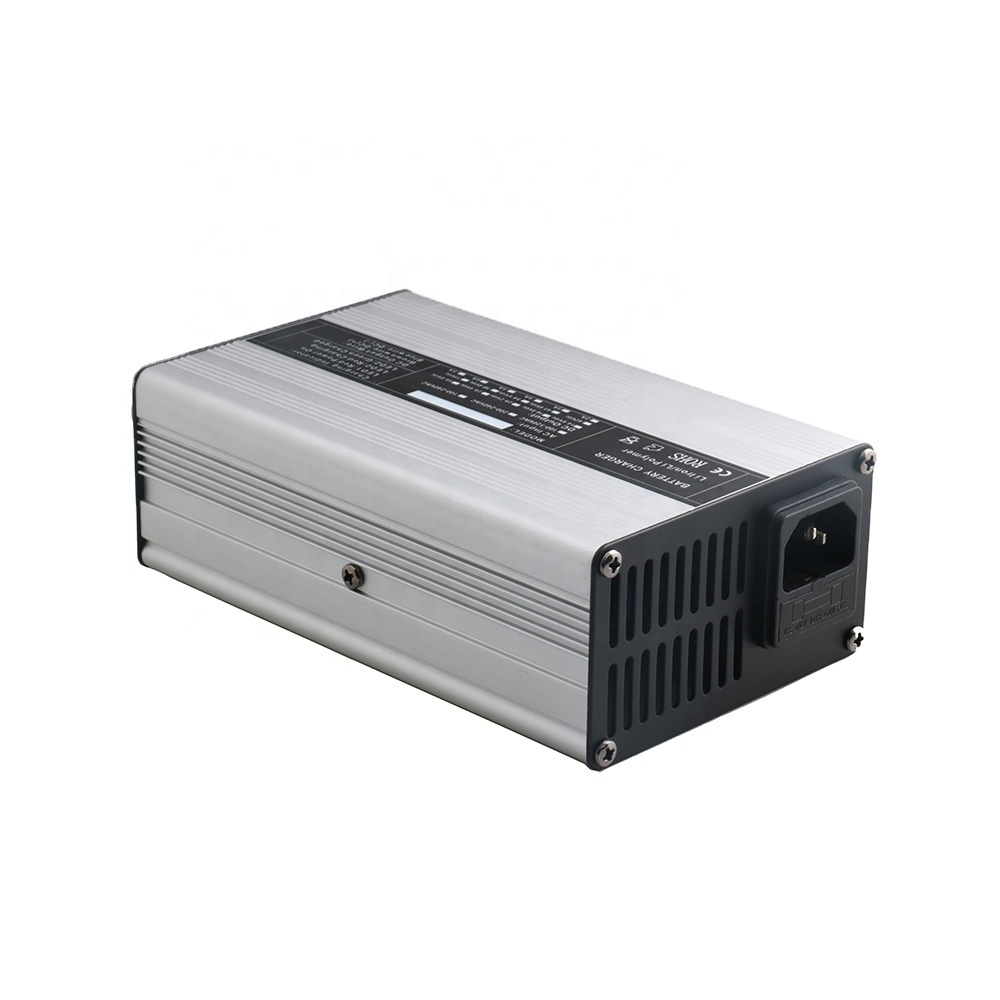

12v 24v battery charger
-
Net weight:
-
0.7kg
-
Warranty:
-
12 months
-
Application:
-
E-bike, Mobility scooter, e-tool, Battery pack
-
Efficiency:
-
≥90%(full Loading)
-
Material:
-
Aluminum
-
Size:
-
135*90*50mm
-
Input Voltage:
-
100-130Vac / 200-240Vac 50HZ/60HZ
-
Power:
-
120W
-
Certification:
-
ce rohs
-
Supports Solar Energy:
-
no
Quick Details
-
Type:
-
Electric
-
Port:
-
AC
-
Use:
-
standard battery
-
Function:
-
charging
-
Brand Name:
-
YXLN
-
Model Number:
-
YX-120W
-
Input voltage and current:
-
100-130Vac / 200-240Vac 50HZ/60HZ
-
output voltage and current:
-
12v 5a 24v 4a 36v 3a 48v 2a 60v 1.5a
-
Maximum Output Power:
-
120w
-
Place of Origin:
-
Guangdong, China
-
Is LED Lamp Illumination:
-
No
-
Product name:
-
12v 24v battery charger
-
Net weight:
-
0.7kg
-
Warranty:
-
12 months
-
Application:
-
E-bike, Mobility scooter, e-tool, Battery pack
-
Efficiency:
-
≥90%(full Loading)
-
Material:
-
Aluminum
-
Size:
-
135*90*50mm
-
Input Voltage:
-
100-130Vac / 200-240Vac 50HZ/60HZ
-
Power:
-
120W
-
Certification:
-
ce rohs
-
Supports Solar Energy:
-
no
PRODUCT DESCRIPTION
.
Wholesale 24v 36v 48v 60v 72v 120w smart electric bike lithium ion battery charger 12v
| Specification of YX-120W Series Battery Charger | |||||||||
| NO. | Model | CV | CC | Transition/cut-off Current | Net Weight | Size | |||
| Lead Acid | Li-ion | LiFePO4 | A | Lead Acid(A) | Li(A) | (kg) | (mm) | ||
| 1 | YX-120W-12 | 14.7V | 16.8V | 14.6V | 6.0 | 1.2 |
0.30
|
0.7
|
135*90*50 |
| 2 | YX-120W-24 | 29.4V | 29.4V | 29.2V | 4.0 | 0.8 | 0.20 | ||
| 3 | YX-120W-36 | 44.1V | 42.0V | 43.8V | 3.0 | 0.6 | 0.15 | ||
| 4 | YX-120W-48 | 58.8V | 54.6V | 58.4V | 2.0 | 0.4 | 0.10 | ||
| Features |
1 |
Full automatic transition of CC, CV cut-off | |||||||
| 2 | Precise limit of voltage & current, guarantee fully charged and avoid over charge | ||||||||
| 3 | Protections: over current, over voltage, short circuit and reverse polarity | ||||||||
| 4 | High efficiency≥90%, environmental protection | ||||||||
| 5 | Two LED indications, aluminium,elegant and reliable | ||||||||
| 6 | With CE & RoHS certificates for export | ||||||||
|
Apply to battery type
|
Lithium ion, Lead-Acid, LiFePO4 for option
|
|
|
|
|||
|
Material
|
aluminum alloy shell (heat disspation)
|
|
|
|
|||
|
Color
|
black and silver for option
|
|
|
|
|||
|
Dimension
|
135*90*50mm
|
|
|
|
|||
|
N.W.
|
0.7KG
|
|
|
|
|||
|
MOQ
|
50PCS
|
|
|
|
|||
|
Warranty
|
12 months
|
|
|
|
|||
|
Port
|
Guangzhou
|
|
|
|
|||
|
Main Market
|
USA, Europe,and Austrilia, Mid East, Africa, Oceania, Asia
|
|
|
|
|||
Wholesale 24v 36v 48v 60v 72v 120w smart electric bike lithium ion battery charger 12v
Charging Mode
:
CC, CV, Trickle(constant currrent-constant voltage-trickle float)
Apply to EV:
E-bike, Mobility scooter, E-tool, Battery pack, Forklift, AGVE, Self-balanced
LED indicator:
Charging state: Red--charging; Green--full
Operating Temperature:
-5℃~+40℃
Storage Temperature:
-40℃~+70℃
Apply to:
Lithium/Li-ion/LiFePO4/Lead Acid battery
Input voltage:
100-130Vac / 200-240Vac 50HZ/60HZ
YX-120W Battery Charger Curve
Lithium battery: CC/CV(Constant Current/Constant voltage)
Full automatic transition of cc cv and float / cut-off, Precise limit of voltage & current, charging more intelligent and safety, High saturation and lower calorie
Lead acid battery: CC/CV and float charging
Full automatic transition of cc cv and float / cut-off, Precise limit of voltage & current, charging more intelligent and safety, High saturation and lower calorie
INPUT&OUTPUT PLUG
APPLICATION
CERTIFICATIONS
OUR COMPANY
OUR ADVANTAGES
PACKING&DELIVERY
FAQ
Q1:Are you a factory or company?
A:We are a factory with 10 years experience,specialize in Lithium battery charger Lead acid battery charger,LifePO4 battery charger.
Q2：Where can I get the price?
A:We usually quote within 24 hours after we get your injquiry.
Q3:Can I get a sample?
A:Sure, we can offer you a sample in a very favorable price .
Q4:What about the quality of your battery charger ?
A:We only produce safe ,reliable and longetive battery charger ,all products have passed the CE ,ROHS certifications.
Q5:What's the payment term ?
A:Most 30% T/T in advance ,the rest need paid before shipping.
Q6:What's the shipment and delivery time ?
A:It can shiped by DHL,UPS,FedEx or TNT ect ,it usually takes 3-7 working days for production .
Q7:Can I print my own logo on the product ?
A:Yes ,please inform us formally before our production and confirm the desingn firstly based on our sample .
Q8:How to solve the technical problem ?
A:24 hours affter -service consultancy just for you .If meet any probblem ,don't hesitate to contaxt us .
