Quick Details
-
Voltage:
-
380V
-
Power:
-
11KW
-
Dimension(L*W*H):
-
6000*3200*1900mm
-
Weight:
-
45000 kg
-
Product Name:
-
Facial Paper Making Machine
-
Brand:
-
Youdeng
-
Model:
-
YD-180-1500
-
Advantage:
-
Cost-effective
-
Packing Material:
-
Wooden Cases
-
Function:
-
Making Paper
-
Service:
-
1 Year Guarantee
-
Applicaiton:
-
Facial Paper Making
-
Material:
-
Steel
-
Folding Speed:
-
500~1000 pcs/min
Quick Details
-
Production Capacity:
-
200 m/min
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Youdeng
-
Voltage:
-
380V
-
Power:
-
11KW
-
Dimension(L*W*H):
-
6000*3200*1900mm
-
Weight:
-
45000 kg
-
Product Name:
-
Facial Paper Making Machine
-
Brand:
-
Youdeng
-
Model:
-
YD-180-1500
-
Advantage:
-
Cost-effective
-
Packing Material:
-
Wooden Cases
-
Function:
-
Making Paper
-
Service:
-
1 Year Guarantee
-
Applicaiton:
-
Facial Paper Making
-
Material:
-
Steel
-
Folding Speed:
-
500~1000 pcs/min
Product Overview

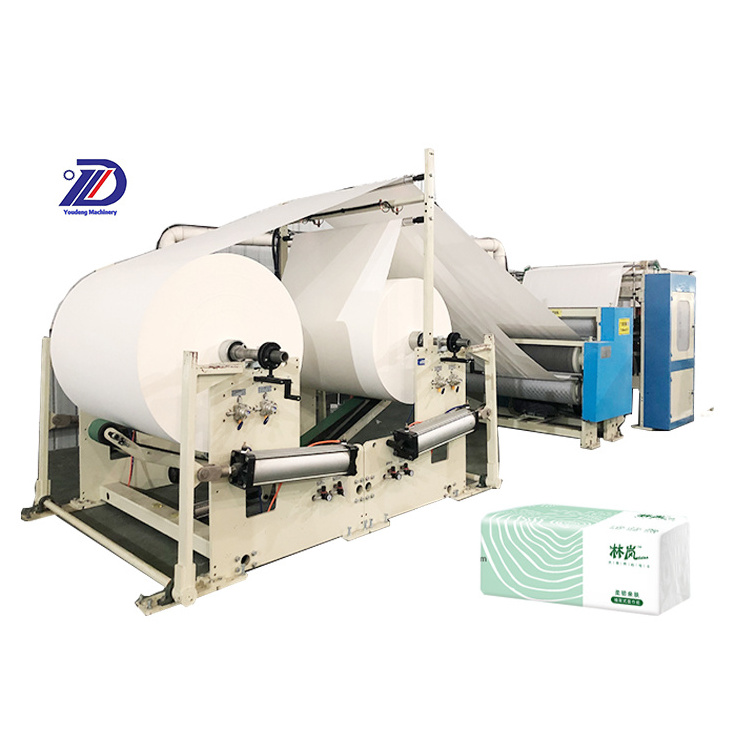

Household paper automatic production line Z/V folding machine facial tissue folding machines
Function:
This
Full Automatic
Facial Tissue Paper Folding Machine
can fold the jumbo roll into small sheet with various smaller diameters in accordance with need. it doesn't change the width of jumbo roll, then the smaller diameter sheet can be cut into different size small paper sheet.
Features:
1.
Embossing, folding, electronic counting, cutting, customized flower shape and other
patterns.
patterns.
2.
Adopt the latest international PLC programming technology, frequency control and
electronic braking. Trimming paper precisely.
3. Touch man-machine interface operating system, the core is the roll forming system, the
application of PLC program wind column forming technology, to achieve faster winding, more beautiful. Automatically spray glue, h igh-efficient, l ow cost, s table quality.
electronic braking. Trimming paper precisely.
3. Touch man-machine interface operating system, the core is the roll forming system, the
application of PLC program wind column forming technology, to achieve faster winding, more beautiful. Automatically spray glue, h igh-efficient, l ow cost, s table quality.
Facial Paper Production Line
Youdeng machinery technology company
can supply all the whole production line of facial tissue paper making machines, including
Facial Tissue Paper Folding Machine, Facial Tissue Paper Log Saw Cutting Machine, Facial Tissue Paper 3D Drawing Single Bag Packing Machine, Facial Tissue Paper Bundling Packing Machine
and other toilet paper making machine.
How to make facial tissue paper?
The following production line for your reference~
1.
Facial Tissue Folding Machine
Product Description:
1. Suitable for 12g-40g base paper.
2. Paper feed independent steeples speed control drive, running speed and stability;
3. Alignment function of base paper.
4. Spiral pneumatic knife, paper-cut convenient, cut off the stability, easy to replace the blade;
5. Folding with the principle of both the same suction and release, folding flat, the production rate reached the industry's top level;
6. Embossed pneumatic control, pattern clear, fluffy to achieve the best show.
7. Improve product quality and output.
8. Reducing labor costs.
9. Reducing the risk of multiple product contamination.
2. Paper feed independent steeples speed control drive, running speed and stability;
3. Alignment function of base paper.
4. Spiral pneumatic knife, paper-cut convenient, cut off the stability, easy to replace the blade;
5. Folding with the principle of both the same suction and release, folding flat, the production rate reached the industry's top level;
6. Embossed pneumatic control, pattern clear, fluffy to achieve the best show.
7. Improve product quality and output.
8. Reducing labor costs.
9. Reducing the risk of multiple product contamination.
|
Parameter of Facial Tissue Folding Machine
|
|
|
|
Model
|
YD-180-1500
|
|
|
Machine Size
|
6000*3200*1900mm
|
|
|
Folding Speed
|
500~1000 pcs/min
|
|
|
Max Diameter
|
φ1200mm
|
|
|
Core Inner Diameter
|
φ76.2mm
|
|
|
Power Type
|
380V 50Hz
|
|
|
Machine Total power
|
11KW
|
|
|
Machine Net Weight
|
4500KG
|
|
2.
Facial Tissue Log Saw Cutting Machine
Product Description:
1. This machine is suitable for the cutting of removable facial tissue, cutting speed, flat surface, the maximum to improve product quality and production efficiency.
2. The main motor and the cutter motor are used frequency converter control, start, accelerate, slow down, stop, the device is very smooth. Paper feed motor adopts servo motor, cutting paper length accurate control.
3. PLC programming and man-machine interface control, easy to operate, fault alarm indication.
4. To remove the paper, the tail of the device, save human resources.
2. The main motor and the cutter motor are used frequency converter control, start, accelerate, slow down, stop, the device is very smooth. Paper feed motor adopts servo motor, cutting paper length accurate control.
3. PLC programming and man-machine interface control, easy to operate, fault alarm indication.
4. To remove the paper, the tail of the device, save human resources.
5. With jamming automatically shut down, block the paper to exclude automatic start function, safety door protection.
6. Thickened base, high stability equipment, steel body, durable.
6. Thickened base, high stability equipment, steel body, durable.
|
Parameter of Facial Tissue Log Saw Cutting Machine
|
|
|
|
Model
|
YD-FLS-1
|
|
|
Cutting Length
|
±1mm
|
|
|
Cutting Speed
|
0-150 cuts/min
|
|
|
Cutting Lane
|
1 or 2
|
|
|
Operation Speed
|
≤130 cuts/min
|
|
|
Function Type
|
The paper cutting knife operates automatically while the paper moves forward
|
|
|
Machine Total Power
|
6.5KW
|
|
|
Machine Net Weight
|
2000KG
|
|
|
Programming Control
|
PLC
|
|
|
Parameter Setting
|
Touch screen setting
|
|
3.
Facial Tissue 3 D Paper Drawing Packaging Machine
Product Description:
1. Suitable for soft tissue packing of facial tissue;
2. Servo drive, touch screen operation;
3. Three-dimensional packaging mode, beautiful appearance;
4. To achieve the production line, reducing labor costs, but also enhance the production efficiency and convenient.
2. Servo drive, touch screen operation;
3. Three-dimensional packaging mode, beautiful appearance;
4. To achieve the production line, reducing labor costs, but also enhance the production efficiency and convenient.
|
Parameter of Facial Tissue 3 D Paper Drawing Packaging Machine
|
|
|
|
Model
|
YD-T180
|
|
|
Design Production Rate
|
110 Pack/min
|
|
|
Production Speed
|
100 Pack/min
|
|
|
Equipment Size
|
4750*3760*2160mm
|
|
|
Packing Way
|
Three-dimensional packaging
|
|
|
Paper Towel Length
|
120mm-210mm
|
|
|
Paper Towel Height
|
40mm-100mm
|
|
|
Power Type
|
380V/50HZ
|
|
|
Tearing
|
Straight line or zipping chain
|
|
|
Packaging Materials
|
CPP、PE Double side heat seal CPP and PE
|
|
4.
Facial Tissue Bundling Packing Machine
Product Description:
1. Mainly used for soft pumping, napkins and squire tissue paper.
2. Automatic bag sealing,cutting and blow waste after artificial bagging.
3. PLC programming control,LCD text display parameters.
4. The relevant system can be parameterized.Human-machine dialogue was achieved and control was more precise.
5. The machine can be directly connected to the bag-packing machine by two individuals. The whole machine is faster and more labor-saving, greatly improving production efficiency, reducing manufacturing costs and management costs, and reducing production space.
6. The sealing effect of the packaging is beautiful, neat, and accurate in control and positioning, and fully semi-automatic operation.
7. The whole structure is reasonable, the performance is stable, and the material is strong.With water cooling protection heating wire, so that heating wire and high temperature resistant adhesive. 8. Working after induction makes the operation safer.
2. Automatic bag sealing,cutting and blow waste after artificial bagging.
3. PLC programming control,LCD text display parameters.
4. The relevant system can be parameterized.Human-machine dialogue was achieved and control was more precise.
5. The machine can be directly connected to the bag-packing machine by two individuals. The whole machine is faster and more labor-saving, greatly improving production efficiency, reducing manufacturing costs and management costs, and reducing production space.
6. The sealing effect of the packaging is beautiful, neat, and accurate in control and positioning, and fully semi-automatic operation.
7. The whole structure is reasonable, the performance is stable, and the material is strong.With water cooling protection heating wire, so that heating wire and high temperature resistant adhesive. 8. Working after induction makes the operation safer.
|
Parameter of Facial Tissue Bundling Packing Machine
|
|
|
|
Model
|
YD-C25
|
|
|
Packing Size
|
600*420*120mm
|
|
|
Packing Specifications
|
1-2row, 3-10 pieces in one row
|
|
|
Power Supply
|
380V 50HZ
|
|
|
Packing Arrangement
|
Horizontal Packing
|
|
|
Machine Weight
|
2000KG
|
|
|
Set Packing Speed
|
25 bags/min
|
|
|
Stable Packing Speed
|
5-20 bags/min
|
|
