Quick Details
-
other name:
-
10 pin male female pcb spring terminal connector
-
color:
-
Red, Yellow ,Green, Black, White, Blue, Gray, Orange
-
Certification:
-
UL,CQC,ROHS
-
current:
-
10A
-
voltage:
-
300V AC
-
pole:
-
2-16poles
-
pitch:
-
3.5mm,3.81mm5.00mm 5.08mm 10.00mm
-
insulation resistance:
-
>5000MΩ DC500V
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Shangkai(SK)
-
Model Number:
-
YX122-508M
-
other name:
-
10 pin male female pcb spring terminal connector
-
color:
-
Red, Yellow ,Green, Black, White, Blue, Gray, Orange
-
Certification:
-
UL,CQC,ROHS
-
current:
-
10A
-
voltage:
-
300V AC
-
pole:
-
2-16poles
-
pitch:
-
3.5mm,3.81mm5.00mm 5.08mm 10.00mm
-
insulation resistance:
-
>5000MΩ DC500V

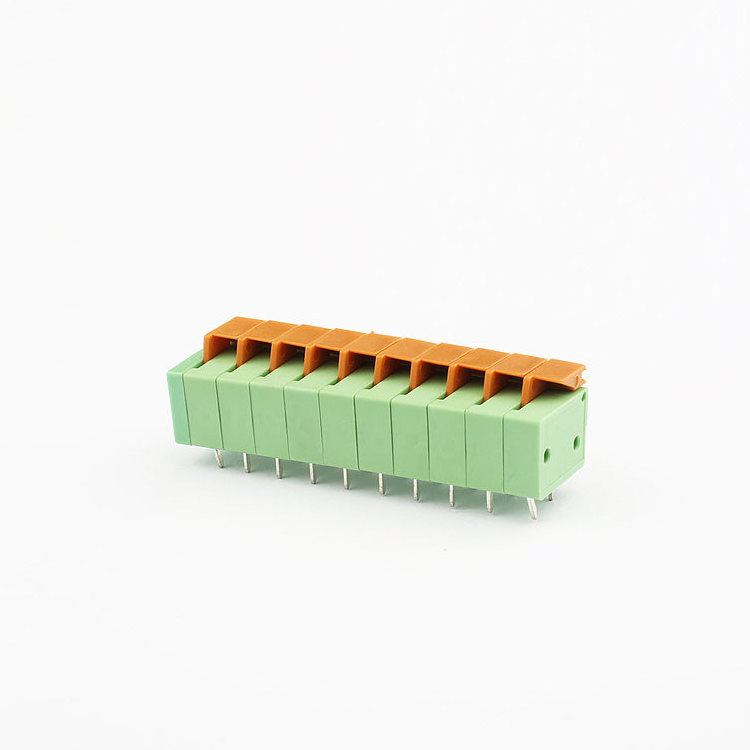

| electrical busbar5mm pitch 10 pin male female pcb spring terminal connector |
Product Description
Material:
Care Clamp: Brass, Ni Plated
Contact: Brass, Tin Plated
Housing:PA66, UL94V-0
Screws: M2.5steel Zinc plated
Color: Green
Environmental:
Operation Temperature: -40 o C~+150 o C
Short-time Temperature: +250 o C for 5 sec
Electrical Data:
Rated Voltage: 300V
Rated Current: 16A
Contact Resistance:20mΩ
Insulation Resistance:>5000MΩ DC500V
Withstanding Voltage: AC2000V/1min
Wire range: 24-12AWG 2.5mm 2
