Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XIAOHAI
-
Voltage:
-
220V
-
Weight:
-
1000 kg
-
Function:
-
Slitting Rewinding JUMBO Paper Roll
-
Product name:
-

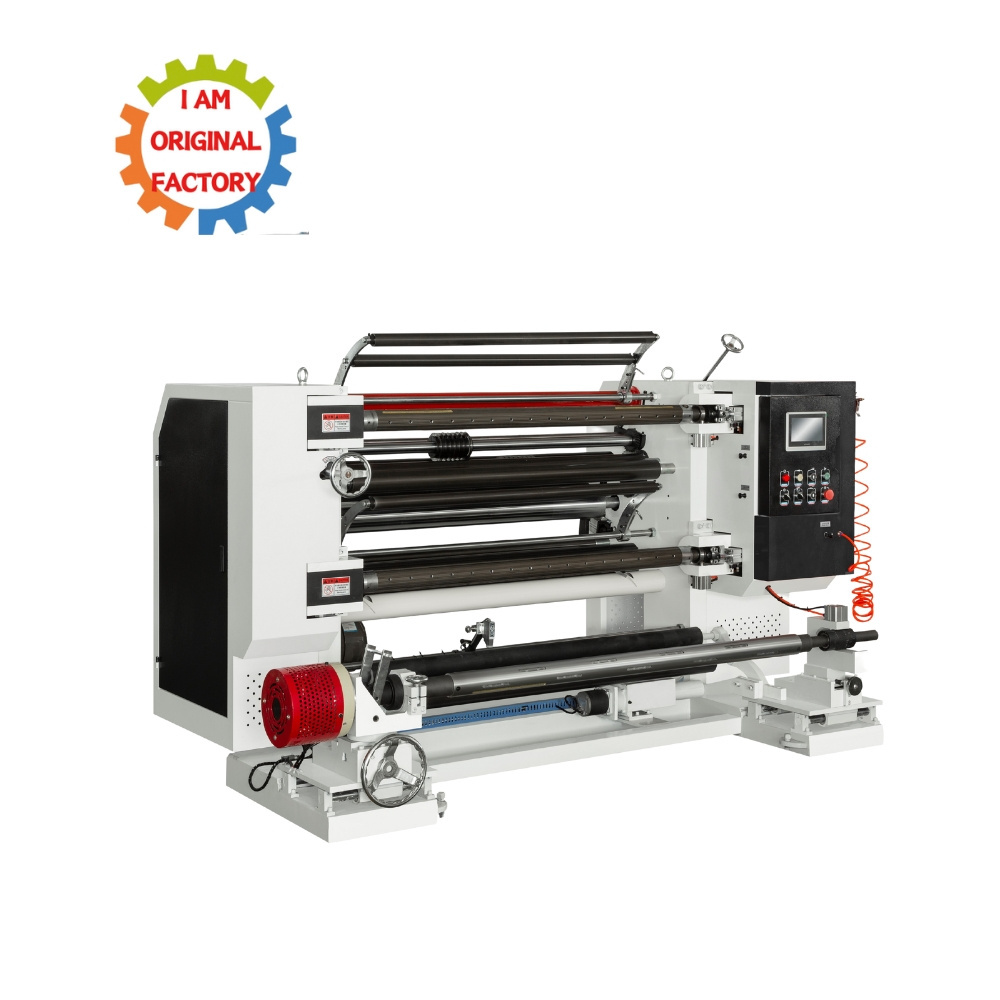

Automatic Slitting Rewinding Machine
-
Application:
-
Paper slit,film slit,label slit
-
Keyword:
-
BOPP Slitting Machine
-
Machine type:
-
Vertical,Horizontal,high speed,PLC control
-
Advantage:
-
Fully Automic,easy operation
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
200 m/min
-
Max. workable width:
-
1100mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XIAOHAI
-
Voltage:
-
220V
-
Weight:
-
1000 kg
-
Function:
-
Slitting Rewinding JUMBO Paper Roll
-
Product name:
-
Automatic Slitting Rewinding Machine
-
Application:
-
Paper slit,film slit,label slit
-
Keyword:
-
BOPP Slitting Machine
-
Machine type:
-
Vertical,Horizontal,high speed,PLC control
-
Advantage:
-
Fully Automic,easy operation
Products Description
This machine is suitable for slitting various roll materials such as BOPP, PET, CPP, CPE, PVC, etc. During the production process, the materials can be trimmed and slit according to different needs.
Advantage：
This machine uses a three-phase asynchronous motor to maintain smooth operation during acceleration; (using variable frequency speed regulation)
Automatic meter counting, alarm and other functions;
The winding adopts A and B air-expanding shaft structures, making loading and unloading easy;
The unwinding adopts photoelectric automatic deviation correction system, so that irregular materials can be cut normally.
Automatic waste edge discharge device for flat knife longitudinal cutting
Manual loading, air expansion shaft (key bar type) 3 inches Φ76mm.
|
breadth
|
Type 1300
|
|
Cut thickness
|
20g-300g/m2
(Depending on the different raw materials) |
|
Maximum diameter of raw material release
|
φ600mm
|
|
Maximum diameter of raw material winding
|
Φ500mm
|
|
Maximum width of raw material
|
1300mm
|
|
Wiling tile air expansion shaft
|
φ76mm
|
|
Also roll up the number of axes
|
2 pieces (single-axis winding)
|
|
Correction accuracy
|
±0.5mm
|
|
Desection accuracy
|
±0.5mm
|
|
velocity
|
10-200m/min
|
|
aggregate capacity
|
5kw
|
|
Body color
|
Gray, shell white (optional colors)
|
|
Automatic photoelectric deviation correction is adopted
|
(According to the different raw materials and the specific customer requirements)
|
