Quick Details
-
Voltage:
-
380V
-
Power:
-
1.5Kw
-
Dimension(L*W*H):
-
3200x2700x1900mm
-
Weight:
-
3000 KG
-
Application:
-
Ice cream
-
Name:
-
Automatic Custom Waffle Ice Cream Cone Making Machine
-
Function:
-
automatic waffle cone machine
-
Keywords:
-
waffle cone machine
-
Heat Source:
-
Gas or Electricity waffer cones making machine
-
Air Pressure:
-
0.6-0.8Mpa
-
Machine Material:
-
Stainless Steel
-
Main Raw Material:
-
Wheat Flour
-
Capacity:
-
2500pcs/h
-
Usage 2:
-
ice cream cone making machine
Quick Details
-
Raw material:
-
Milk, Water
-
Brand Name:
-
OCEAN MACHINERY
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380V
-
Power:
-
1.5Kw
-
Dimension(L*W*H):
-
3200x2700x1900mm
-
Weight:
-
3000 KG
-
Application:
-
Ice cream
-
Name:
-
Automatic Custom Waffle Ice Cream Cone Making Machine
-
Function:
-
automatic waffle cone machine
-
Keywords:
-
waffle cone machine
-
Heat Source:
-
Gas or Electricity waffer cones making machine
-
Air Pressure:
-
0.6-0.8Mpa
-
Machine Material:
-
Stainless Steel
-
Main Raw Material:
-
Wheat Flour
-
Capacity:
-
2500pcs/h
-
Usage 2:
-
ice cream cone making machine

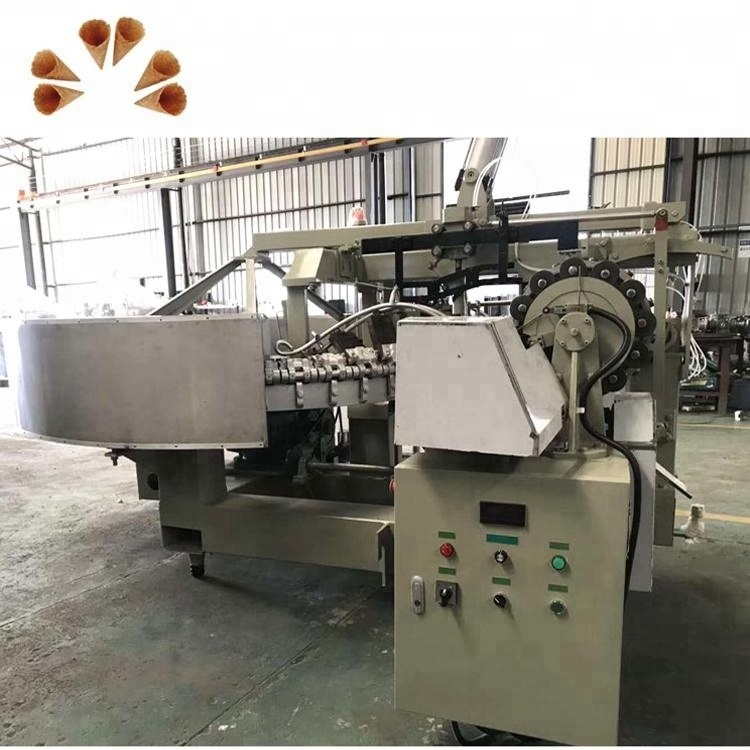

Automatic Custom Waffle Ice Cream Cone Making Machine
Our Automatic Custom Waffle Ice Cream Cone Making Machine is used for rolling sugar cones. It offer cones to the next process to be filled with ice cream, It is the main device for preparing various pizza cones for cake rooms, bakeshops, cafes, and other snack food industry.
Main Features:
1. Easy to operate, high efficiency, good maintenance .
2. Large producing capacity suitable for batch and big output.
3. With high efficiency and short investment return
4. All-purpose performance with the machine
Technical Parameters of Ice Cream Cone Making Machine
|
Model No. |
OC -25 |
|
|
Name |
Automatic Custom Waffle Ice Cream Cone Making Machine |
|
|
Voltage |
380V |
|
|
Total power |
1.5Kw |
|
|
Gas consumption |
4Kg/h (4.2m³/h) |
|
|
Compressed air pressure |
0.6MPa |
|
|
Total weight |
3000Kg |
|
|
Dimension |
3200x2700x1 9 00 mm |
|
|
Sugar cone size (22.5°) |
D ia . |
42-48mm |
|
L ength |
100-115mm |
|
|
C apacity |
2 3 00-2500pcs/h |
|
|
Sugar cone size (17.5°) |
D ia . |
38-44mm |
|
L ength |
110-125mm |
|
|
C apacity |
2500pcs/h |
|
