Quick Details
-
Machine Type:
-
Making soap
-
Marketing Type:
-
hot product
-
Product name:
-
Soap making machine production line
-
Production line:
-
Mixer, mill machine,bar extruder and cutting machine with stamper
-
Soap logo:
-
Customizable
-
Soap production process:
-
Mixing+mill+plodder+stamping cutting+conveyor
-
Soap raw mateial:
-
soap noodles /granules
-
Machine material:
-
stainless steel
-
Function:
-
Machine to make soap
-
Finally products:
-
laundry soap
-
Soap shape:
-
Square Shape
-
Related machines:
-
Small hotel bath handmade soap production line
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YZ
-
Weight (KG):
-
240
-
Machine Type:
-
Making soap
-
Marketing Type:
-
hot product
-
Product name:
-
Soap making machine production line
-
Production line:
-
Mixer, mill machine,bar extruder and cutting machine with stamper
-
Soap logo:
-
Customizable
-
Soap production process:
-
Mixing+mill+plodder+stamping cutting+conveyor
-
Soap raw mateial:
-
soap noodles /granules
-
Machine material:
-
stainless steel
-
Function:
-
Machine to make soap
-
Finally products:
-
laundry soap
-
Soap shape:
-
Square Shape
-
Related machines:
-
Small hotel bath handmade soap production line
Product description
Small business automatic mini powder bath soap maker making machine price laundry bar soap production line

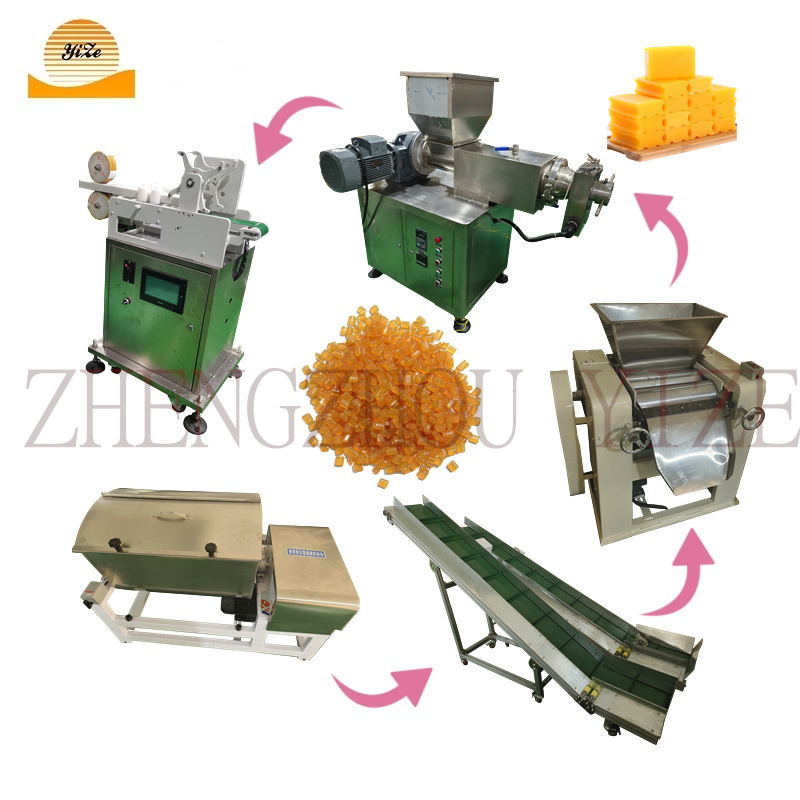

This soap production line is to make laundry soap by soap granules,the whole production line includes the mixer,conveyor,three
roll mill,conveyor,single screw plodder,soap stamping and cutting machine.
Raw material：soap noodles or granules
Final product: soap bar
Detailed Images
1.Mixer
It can mix and stir various raw materials that produce soap fully and evenly,to thin the soap grain and make all sorts of
auxiliary material and spice mixed into the soap grain completely.
auxiliary material and spice mixed into the soap grain completely.
|
Model
|
YZJB-100
|
|
Material
|
stainless steel
|
|
Mixing type
|
Single shaft “Z”typ
|
|
Capacity
|
100kg/time
|
|
Mixing time
|
5-8min/time
|
|
Rotating speed
|
40rpm
|
|
Voltage
|
3-phase,380v,50hz
|
|
Power
|
2.2kw
|
|
Discharge method
|
bottom discharge
|
|
Machine size
|
150*65*105CM
|
|
Weight
|
240kg
|
2.Conveyor：
The conveyor is used between mixer and three roll mill,and between three roll mill and single screw plodder.
|
Model
|
YZCS
|
|
Length
|
3m
|
|
Width
|
30cm
|
|
Voltage
|
single phase,220v,50hz
|
|
Power
|
120w
|
3.Three Roll Mill
It is used to grind the soap grain and materials added to improve the density and quality of the soap body.
Milling machine equip three rollers in a horizontal direction,raw materials are ground twice through extruding and grinding by rollers with different speed.
|
Model
|
YZYM-150
|
|
Material
|
cast iron, chilled alloy
|
|
Diameter of roller
|
150mm
|
|
Length of roller
|
400mm
|
|
Voltage
|
3-phase,380v,50hz
|
|
Power
|
4kw
|
|
Machine size
|
95*100*115CM
|
|
Weight
|
380kg
|
4.Single screw plodder：
It is used to refine, exhaust and extrude the after-grinding soap grain to change the molecular arrangement
of the soap body,making them arrange neatly into strips,to be used in molding.
of the soap body,making them arrange neatly into strips,to be used in molding.
|
Model
|
YZCT-100
|
|
Material
|
304 stainless steel
|
|
Capacity
|
150-300kg/h
|
|
Diameter of roller
|
Φ140mm
|
|
Rotating speed
|
10-23r/min(frequency control)c
|
|
Voltage
|
3-phase,380v,50hz
|
|
Power
|
4.4kw
|
|
Machine size
|
150*60*140CM
|
|
Weight
|
200kg
|
5.Soap stamping and cutting machine
It used to stamp logo on the soap and cut soap,the font of soap is clear, smooth and beautiful.
|
Model
|
YZQK-001
|
|
Material
|
304 stainless steel 45# mold steel
|
|
Cutting Speed
|
Cutting speed is determined by the single screw plodder
|
|
Soap Cutting Size
|
According to customers’ requirements
|
|
Capacity
|
0-200pcs/min
|
|
Voltage
|
single phase,220v,50hz
|
|
Power
|
1.3 kw
|
|
Machine size
|
90*52*150CM
|
|
Weight
|
110kg
|
Final product:
Transaction history
Packing & Delivery
Workshop & Team & customer
Welcome to Zhengzhou Yize Machinery Co.,ltd.
Zhengzhou Yize engaged in a wide range of machine business, We are in this line for more than 11 years. We provide best quality
machines and solutions for global users in machinery fields. Some of them also visit us and check our machines. From the single
machine to the automatic product line, From china to the whole world. Zhengzhou Yize committed to machine manufacturing and high
efficiency producing. We also have development on new material and key technology. We welcome you to visit us and make a deal.
Zhengzhou Yize engaged in a wide range of machine business, We are in this line for more than 11 years. We provide best quality
machines and solutions for global users in machinery fields. Some of them also visit us and check our machines. From the single
machine to the automatic product line, From china to the whole world. Zhengzhou Yize committed to machine manufacturing and high
efficiency producing. We also have development on new material and key technology. We welcome you to visit us and make a deal.
FAQ and Our Service
|
MOQ
|
Usually 1 set, or based your order, Preferential wholesale price.
|
|
|
||
|
Voltage
|
110V /220V /380V /415V, 50/60 HZ Single/Three phase , Customize the voltage according to your local voltage.
|
|
|
||
|
Guarantee
|
Quality guarantee term is for one year, During guarantee period, free technical support and free spare parts supply.
|
|
|
||
|
Payment term
|
T/T, Credit card, Western Union, RMB , Alipay, Wechat, Cash, E-checking, MoneyGram, L/C, etc.
|
|
|
||
|
Documents offer
|
By express:express waybill
By air:airway bill
By sea:B/L, commercial invoice, packing list, sales contract, CO, FE, FTA or as your request. |
|
|
||
|
How to install and maintain the machine
|
we can teach you install or maintain the machine by video, email ,pictures.....if large project , we can arrange our engineer help you to install or maintain it in your country. If you need spare parts, we can supply for free or cost price, you pay express cost.
|
|
|
||
|
Assignment of engineers and training
|
we can supply manual book, work video, install video, pictures first, we can also assign our engineers to go abroad for installing or training machines for our users.
|
|
|
||
