Quick Details
-
Max. wood diameter::
-
650mm - 1600mm
-
Band wheel diameter::
-
500mm - 700mm
-
Blade speed::
-
20-25m/s
-
Rail length::
-
5900mm
-
Sawing thickness::
-
400mm
-
Mobile tire::
-
Yes
-
Color::
-
Customer Actual Requirements
-
OEM service::
-
Yes
Quick Details
-
Place of Origin:
-
Shandong, China
-
Name::
-
horizontal bandsaw sawmill
-
Power type::
-
gasoline, diesel and electric
-
Max. wood diameter::
-
650mm - 1600mm
-
Band wheel diameter::
-
500mm - 700mm
-
Blade speed::
-
20-25m/s
-
Rail length::
-
5900mm
-
Sawing thickness::
-
400mm
-
Mobile tire::
-
Yes
-
Color::
-
Customer Actual Requirements
-
OEM service::
-
Yes

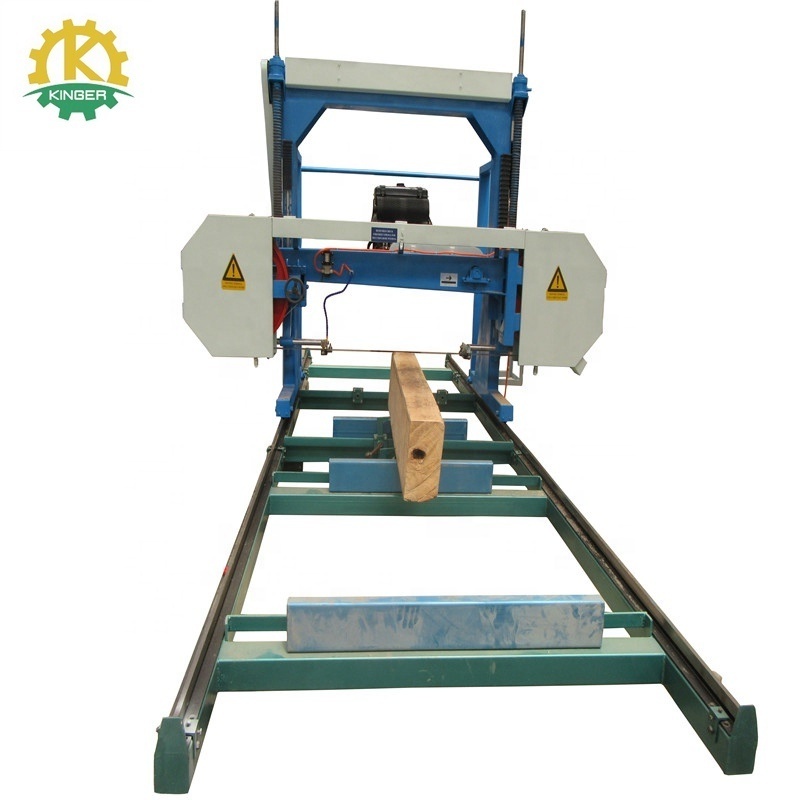

Horizontal Bandsaw Sawmill For Sale
Features of horizontal bandsaw sawmill (Diesel):
1) Easy to instal and operate, gasoline engine as optional.
2) It widely used in the virgin forest area .
3) This sawmill is quite popular in Australia, Africa,South America,and Eastern Europe,etc.
Specification of horizontal bandsaw sawmill (Diesel):
|
Model
|
MJ700D
|
MJ1000D
|
MJ1300D
|
MJ1600D
|
|
Sawing Wood Diameter
|
700MM
|
1000
|
1300
|
1600
|
|
Saw Wheel Diameter
|
600MM
|
700MM
|
700MM
|
700MM
|
|
Sawing Wood Thickness
|
10-260MM
|
10-300MM
|
10-300MM
|
10-300MM
|
|
Sawing Wood Length
|
1300-4500MM (Adjustable)
|
|||
|
Diesel Engine
|
22HP
|
22HP
|
25HP
|
27HP
|
|
Band Saw Blade Length
|
5500MM
|
6100MM
|
6600MM
|
7100MM
|
|
Total Weight (KG)
|
1100
|
1100
|
1300
|
1500
|
|
USD/SET EXW
|
4700
|
5900
|
6400
|
6800
|
|
Manual Forward/backward,Hydraulic Up/down for setting sawing thickness.
|
||||
|
The sawing wood length can be extended depend on the fact working requirements.
|
||||
Features of horizontal bandsaw sawmill (Electric):
1) Easy to instal and operate.
2) High accurancy.
3) This product is quite popular in Australia, Africa,South America,and Eastern Europe,etc.
Specification of horizontal bandsaw sawmill (Electric)
|
Model
|
MJ700E
|
MJ1000E
|
MJ1300E
|
MJ1600E
|
|
Sawing Wood Diameter
|
700MM
|
1000
|
1300
|
1600
|
|
Saw Wheel Diameter
|
600MM
|
700MM
|
700MM
|
700MM
|
|
Sawing Wood Thickness
|
10-200MM
|
10-300MM
|
10-300MM
|
10-300MM
|
|
Sawing Wood Length
|
1300-4500MM (Adjustable)
|
|||
|
Electric Motor
|
15KW
|
18.5KW
|
22KW
|
30KW
|
|
Up/Down Motor
|
1.1KW
|
1.1KW
|
1.1KW
|
1.1KW
|
|
Band Saw Blade Length
|
5500MM
|
6100MM
|
6600MM
|
7100MM
|
|
Total Weight (KG)
|
1100
|
1100
|
1300
|
1500
|
|
Manual Forward/backward,Electric Up/down sizing
|
||||
|
The sawing wood length can be extended depend on the fact working requirements
|
||||
