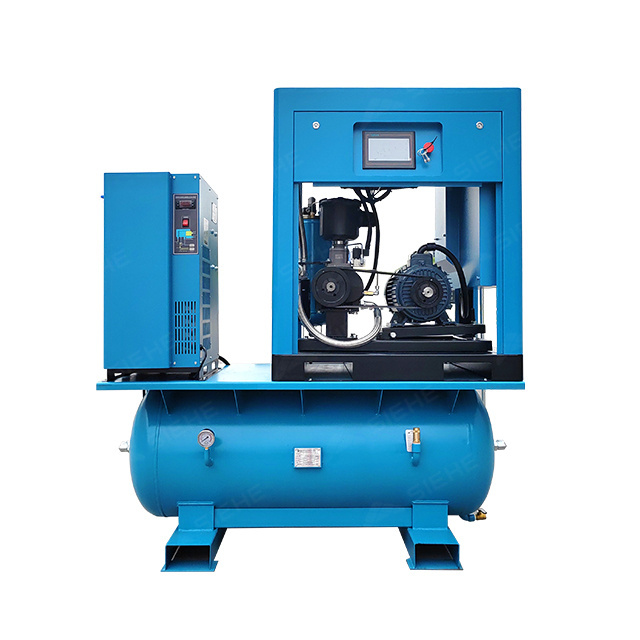

Integrated Combined 300 500 Liter Air Storage Tank Screw Air Compressor 4-in-1 Compressor Set

Integrated Combined 300 500 Liter Air Storage Tank Screw Air Compressor 4-in-1 Compressor Set

FOB Reference Price: Get Latest Price

≥1 Sets

US $1190

≥3 Sets

US $1090

≥6 Sets

US $990

≥9 Sets

US $890

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380v/Customizable

Dimension(L*W*H):: 2100*1300*1650

Weight:: 780kg

Marketing Type:: New Product 2022

Name:: Screw type air compressor

Brand:: SIEHE

Application:: Air

Pressure:: 8-13bar

Power:: AC power

Noise:: Silent

Color:: Optional

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: SIEHE

Model Number:: SLY series

Voltage:: 220V/380v/Customizable

Dimension(L*W*H):: 2100*1300*1650

Weight:: 780kg

Marketing Type:: New Product 2022

Name:: Screw type air compressor

Brand:: SIEHE

Application:: Air

Pressure:: 8-13bar

Power:: AC power

Noise:: Silent

Color:: Optional

Screw air compressor

Motor power (kw): 7.5~400

Work Pressure (bar): 8~13

Displacement (m³/min): 0.8~72

Noise Level (db): 64~85

Dimension (mm): 800*720*950~4300*1950*2000

Weight (kg): 240~8100

Features

1. German brand main engine, longer service life and larger air displacement

* Connected with the permanent magnet motor.

* The exhaust end uses tapered ball bearings, and the air inlet uses cylindrical bearings, which have long service life.

2. Integral shaft structure, more energy saving

* E mbedded integrated shaft intelligent direct connection structure, 100% transmission efficiency, no gearbox or belt, no energy loss.

* Equipped with a high-efficiency permanent magnet motor, maintain high mechanical efficiency at low frequency and low speed.

3. Wider frequency range and lower noise level

* 25%-100% frequency conversion, 65 db noise level, suitable for any work condition.

4. Lower energy consumption cost

* The purchase and maintenance cost of screw compressor account for 25% of total cost, while the energy consumption cost accounts for 75%. Permanent magnet variable frequency motor save energy by 35% than normal frequency motor.

* The frequency inverter controls the speed of motor, more productive and less power loss.

Screw Compressor Parameter
Model	Motor Power (kw)	Work Pressure (bar)	Displacement（m³/min）	Noise Level (db)	Dimension (mm)	Weight (kg)
SLY-10	7.5	8-13	0.8-1.2	66±2	800720950	240
SLY-15	11	8-13	1-2-1.6	68±2	9508001070	405
SLY-20	15	8-13	1.7-2.4	68±2	9508001070	430
SLY-25	18.5	8-13	2.2-2.9	68±2	95011001110	510
SLY-30	22	8-13	2.9-3.5	69±2	13008601135	540
SLY-40	30	8-13	3.7-5	69±2	13008601135	690
SLY-50	37	8-13	5.1-6.1	70±2	105010501450	750
SLY-60	45	8-13	5.8-8	72±2	130011001350	920
SLY-75	55	8-13	7.3-10.05	73±2	150011501500	1500
SLY-100	75	8-13	9-13.3	75±2	190012001555	1800
SLY-125	90	8-13	12.3-16.3	75±2	210012501700	2200
SLY-150	110	8-13	14.2-20.6	75±2	230016502000	2900
SLY-180	132	8-13	16.5-24	75±2	255016502000	3100
SLY-220	160	8-13	19.7-27	75±2	255016502000	3300
SLY-250	185	8-13	22.5-30.2	78±2	280017502100	3500
SLY-300	220	8-13	33.1-38.5	78±2	320019502150	4500
SLY-340	250	8-13	34.6-42.5	78±2	320019502150	4600
SLY-420	315	8-13	42.9-55.6	80±2	320019502150	7000
SLY-480	355	8-13	48-65	82±2	430016502000	7500
SLY-540	400	8-13	52.5-72	83±2	430019502000	8100
