Quick Details
-
Weight (KG):
-
2200
-
Brand Name:
-
winwin
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
60 - 100 mm
-
Model Number:
-
GYH series
-
Year:
-
2023
-
Voltage:
-
380V/3phase/50hz or 220V/3phase/60hz
-
Dimension(L*W*H):
-
4100*2200*4800mm
-
Product name:
-
film blowing machine plastic extruder film blow machine
-
Keyword:
-
film blow machine
-
How many layer:
-
one layer
-
Output:
-
50-90kgs/hr
-
Suitable material:
-
HDPE, LDPE,LLDPE
Quick Details
-
Output (kg/h):
-
50 - 100
-
Number of Layers:
-
Single-layer
-
Screw diameter (mm):
-
45
-
Weight (KG):
-
2200
-
Brand Name:
-
winwin
-
Place of Origin:
-
Zhejiang, China
-
Die Size(mm):
-
60 - 100 mm
-
Model Number:
-
GYH series
-
Year:
-
2023
-
Voltage:
-
380V/3phase/50hz or 220V/3phase/60hz
-
Dimension(L*W*H):
-
4100*2200*4800mm
-
Product name:
-
film blowing machine plastic extruder film blow machine
-
Keyword:
-
film blow machine
-
How many layer:
-
one layer
-
Output:
-
50-90kgs/hr
-
Suitable material:
-
HDPE, LDPE,LLDPE
Product Overview
PRODUCT SPECIFICATIONS
Use:

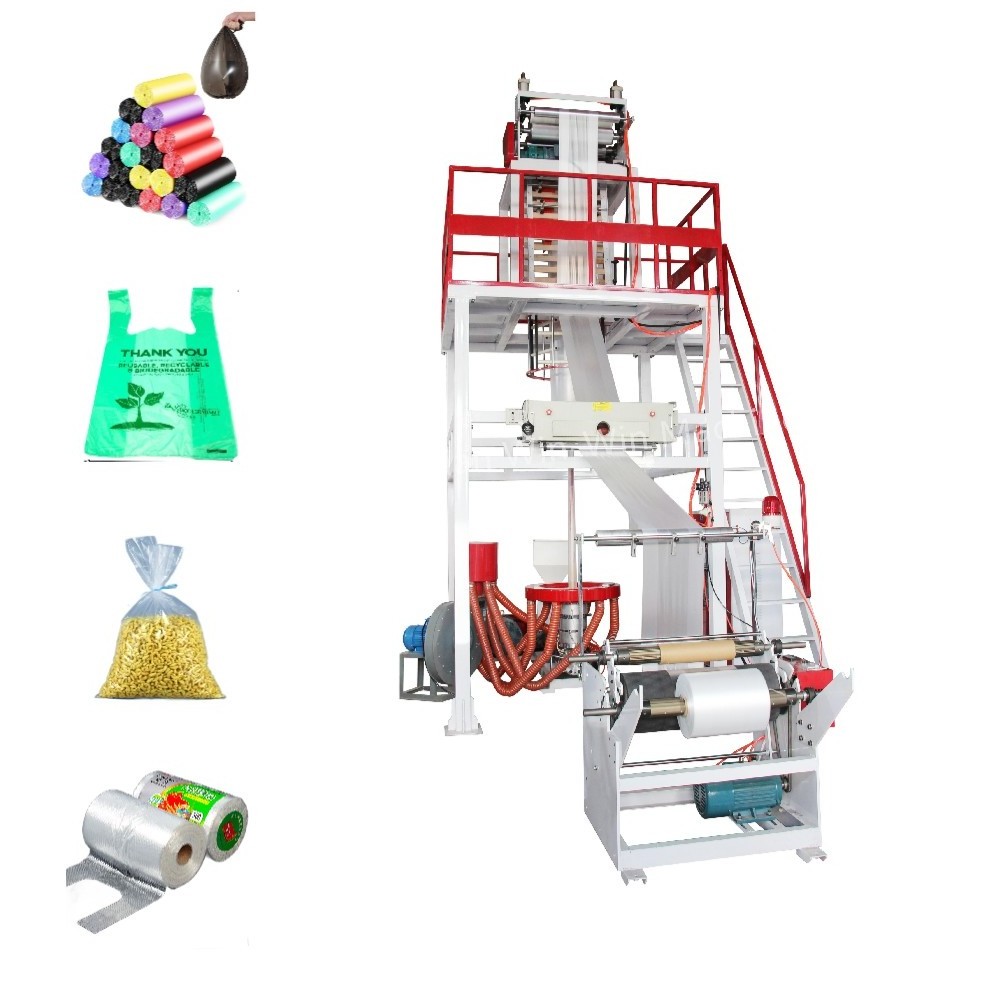

The PE film blowing machine,is used for blowing HDPE, LDPE, LLDPE film. Also can be used for
biodegradable film (can be customzied).
The finished product is shopping bags, flat bags and for other packaging use.
Advantages:
Compare with common speed film blowing machine, for 600mm film width, 45mm screw, main motor 15kw, the output can reach 51kgs/hr, for LDPE film can reach 60kgs/hr
The output is about 480kgs per day higher than common speed machine, you can own more profit by this machine, and the film quality is high grade, your product will be very competitive in the market.
|
Model
|
GYH45/700
|
GYH50/900
|
GYH55/1100
|
||
|
Max. Film width:
|
650mm
|
800mm
|
1000mm
|
||
|
Film actual Output:
|
40-60kgs/hr
|
50-70kgs/hr
|
70-90kgs/hr
|
||
|
Film thickness
|
0.008-0.10mm for one layer
|
|
|
||
|
Screw diameter:
|
50mm super speed type
|
55mm super speed type
|
60mm
super speed type
|
||
|
Screw Ratio:
|
30:1
|
30:1
|
30:1
|
||
|
screw material
|
SACM-645/38 CRMOALA
|
|
|
||
|
cylinder material
|
SACM-645/38 CRMOALA
|
|
|
||
|
Main motor:
|
15kw
|
18.5kw
|
22kw
|
||
|
Gearbox:
|
146 model hard surface
|
173 model hard surface
|
180model hard surface
|
||
|
Die head:
|
high speed die head , 60mm HDPE die /120mm LDPE die head
|
high speed die head , 80mm HDPE die/150mm LDPE die head
|
high speed die head , 100mm HDPE die/
220mm LDPE die
|
||
|
Air blower: |
4kw
|
5.5kw
|
5.5kw
|
||
|
Rewinder
|
Single rewinder
|
Single rewinder
|
Single rewinder
|
||
|
Torque motor for rewinder
|
10n.m torque motor
|
10n.m torque motor
|
Inverter control for rewinder
|
||
|
Take-up unit:
|
1.5kw
|
1.5kw
|
1.5kw
|
||
|
Air ring:
|
dual-lip air ring
|
dual-lip air ring
|
dual-lip air ring
|
||
|
Machine size(mm):
|
4500*2400*5100mm
|
4100*2200*5400
|
4200*2400*6100
|
||
|
Machine weight
|
2400kgs
|
2600kgs
|
3000kgs
|
||
The machine with the following devices:
gusset device
gusset device
meter counter
embossing roller
fixed die head
single rewinder
Optional devices(You can chose as your requirement)
1. Corona treater
2. rotary die head
3. Double rewinder
4. Air shaft
5. Auto loader
6. Net changer
