- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GW
-
Model Number:
-
28JM10K/28ZY38
-
Voltage(V):
-
12V/24V
-
Output Power:
-
1.86/2.48/2.87W
-
Torque:
-
1 N.m
-
No-load speed:
-
4000/5000/5000 r/min
-
No-load current:
-
80/100/60 mA
-
Rated speed:
-
2600/3450/4000 r/min
-
Rated torque:
-
7.0/7.0/6.6 mN.m
-
Rated current:
-
350/370/200 mA
-
Stall torque:
-
20/21.5/22 mN.m
-
Stall current:
-
0.75/0.9/0.6 A
Quick Details
-
Speed(RPM):
-
Constant Speed
-
Continuous Current(A):
-
0.8(A)
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GW
-
Model Number:
-
28JM10K/28ZY38
-
Voltage(V):
-
12V/24V
-
Output Power:
-
1.86/2.48/2.87W
-
Torque:
-
1 N.m
-
No-load speed:
-
4000/5000/5000 r/min
-
No-load current:
-
80/100/60 mA
-
Rated speed:
-
2600/3450/4000 r/min
-
Rated torque:
-
7.0/7.0/6.6 mN.m
-
Rated current:
-
350/370/200 mA
-
Stall torque:
-
20/21.5/22 mN.m
-
Stall current:
-
0.75/0.9/0.6 A

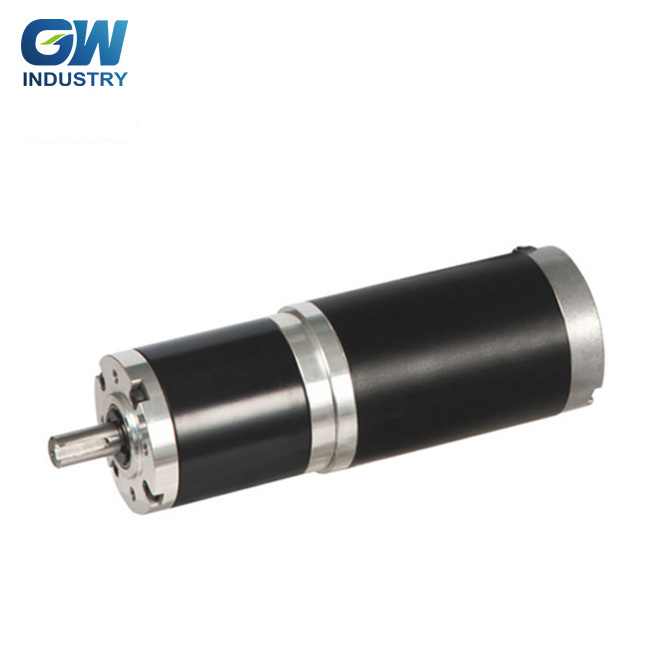

Special hot selling 12/24V Planetary gear automatic swing gate motor
PM DC Planetary Gear Motor ( Ring G ear Material: Metal and P owder M etal )
2 8 J M10 K/2 8 ZY3 8
28 mm OD Planetary Gearbox,
Permissible Load Range: 0. 1 N.m~ 1.0 N.m
GW ELECTRIC (SHANGHAI) CO., LTD.
is a leading motor manufactory established in 1952, formerly known as SMM, JLM and Shanghai Regal-Beloit & Jinling Co., Ltd. (A joint-venture with Regal-Beloit since 2002). The JV has manufactured motors for LEESON, MARATHON and LINCOLN. In 2014, the company became part of the GW Industrial Group Co., Ltd. Our scope of business is designing, manufacturing and selling DC motors, fractional horsepower AC motors including single phase and three phase motors with NEMA and IEC standards. We provide after-sales and technical consulting services for our customers. Our company owns a UL and CSA approved laboratory with certification facilities for testing.
1.We are professional manufacture with more than 60 years experience in motors.
2.Every year 500,000 to 600,000pcs of electric motor were exported to others countries.
3.We test the material before production and three to four times when producing to ensure the goods in good quality,
also we produce according to your quirement
4.Best production capability,best quality control,best service
5.We can be your OEM manufacturer with your authorization of brand.
Q1. What's your company's main products?
A: Our company is specialized in AC three phase motor and single phase motor.
Q2. What's your payment term?
A: 30% T/T in deposit,the rest against on the copy of B/L
Q3. What's the MOQ for your production?
A: The MOQ is 100pcs or depends on your products requirements
Q4. Is it all right to make customer's own brand name?
A: OEM is ok
Q5. Where is your loading port?
A: Shanghai, China or else port as for your request
Q6. Are you a manufactuer or trading company?
A: We are a manufactuer
