Quick Details
-
Warranty:
-
1 year-2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
McMaster
-
Model Number:
-
SMM501
-
Torque:
-
1.5N.m- 33N.m
-
Rated Voltage:
-
24v 12V
-
Keywords:
-
planetary reduction gearmotor
-
Application:
-
medical equipment, solar tracking device, precision equipment
-
Motor type:
-
dc planetary gear motor
-
Size:
-
42/56/80
-
RPM:
-
20/50/100
-
Output Power:
-
20W/50W/100W
-
Typical Applications:
-
precision equipment
Quick Details
-
Speed(RPM):
-
1-700rpm
-
Continuous Current(A):
-
7.5A
-
Efficiency:
-
70%
-
Warranty:
-
1 year-2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
McMaster
-
Model Number:
-
SMM501
-
Torque:
-
1.5N.m- 33N.m
-
Rated Voltage:
-
24v 12V
-
Keywords:
-
planetary reduction gearmotor
-
Application:
-
medical equipment, solar tracking device, precision equipment
-
Motor type:
-
dc planetary gear motor
-
Size:
-
42/56/80
-
RPM:
-
20/50/100
-
Output Power:
-
20W/50W/100W
-
Typical Applications:
-
precision equipment
Products Description

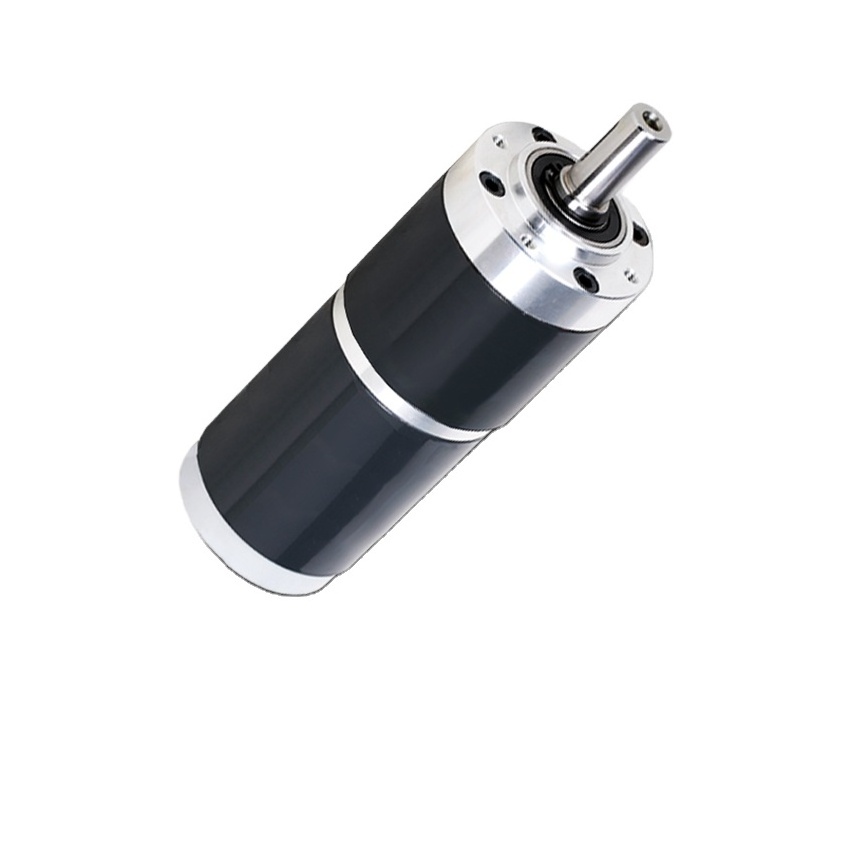

DC Gear Motor
McMaster provide permanent magnet brushless commutated DC motors with a diameter. McMaster keeps researching new technologies for making the motors with longer life and lower noise.BLDC Motor can be customized for application-specific requirements including the integration of encoders, gearboxes, custom cable assemblies, brush materials, magnet materials, EMI/EMC suppression networks, and shaft configurations.
Product Specification
We can provide customization service!
Product size is for reference only, our products accept customization, If there is any questions, please contact us at any time!
|
Specifications: 42diameter Planetary Gear Motor
Can reach 10N.m We have different types (From 0.8N.m to 33N.m) of dc gear motor for you to choose. |
|
|
|
|
|
|
|
|
|
|||||||||
|
Voltage
(VDC)
|
Power
（W） |
No Load
|
|
Rated Load
|
|
Torque
（N.m) |
Ratio
|
Stage
|
Lenght
(mm) |
|||||||||
|
|
|
Current
(A) |
Speed
(r/min) |
Current
(A) |
Speed
(r/min) |
|
|
|
|
|||||||||
|
24
|
14
|
0.3
|
1033
|
1.09
|
857
|
0.2
|
3.5
|
1
|
98
|
|||||||||
|
24
|
|
0.3
|
904
|
1.09
|
750
|
0.2
|
4
|
|
|
|||||||||
|
24
|
|
0.3
|
602
|
1.09
|
500
|
0.3
|
6
|
|
|
|||||||||
|
24
|
13
|
0.34
|
226
|
1.09
|
188
|
0.6
|
16
|
2
|
110
|
|||||||||
|
24
|
|
0.34
|
151
|
1.09
|
125
|
1.0
|
24
|
|
|
|||||||||
|
24
|
|
0.34
|
100
|
1.09
|
83
|
1.5
|
36
|
|
|
|||||||||
|
24
|
11
|
0.37
|
56
|
1.09
|
47
|
2.3
|
64
|
3
|
121
|
|||||||||
|
24
|
|
0.37
|
25
|
1.09
|
21
|
5.3
|
144
|
|
|
|||||||||
|
24
|
10
|
0.42
|
14
|
1.09
|
12
|
8.3
|
256
|
4
|
133
|
|||||||||
|
24
|
|
0.42
|
6
|
1.09
|
5
|
18.7
|
576
|
|
|
|||||||||
|
24
|
|
0.42
|
4
|
1.09
|
3
|
28.1
|
864
|
|
|
|||||||||
Recommend Products
Product packaging and delivery
Packing Method:
◆ Foam Protect Cover
◆ Boxes
◆ Cartons
◆ Wooden Case
◆ We can design the Package according to your specific needs.
Shipping Method:
◆ By sea
◆ By train
◆ By air express
◆ According your needs.
