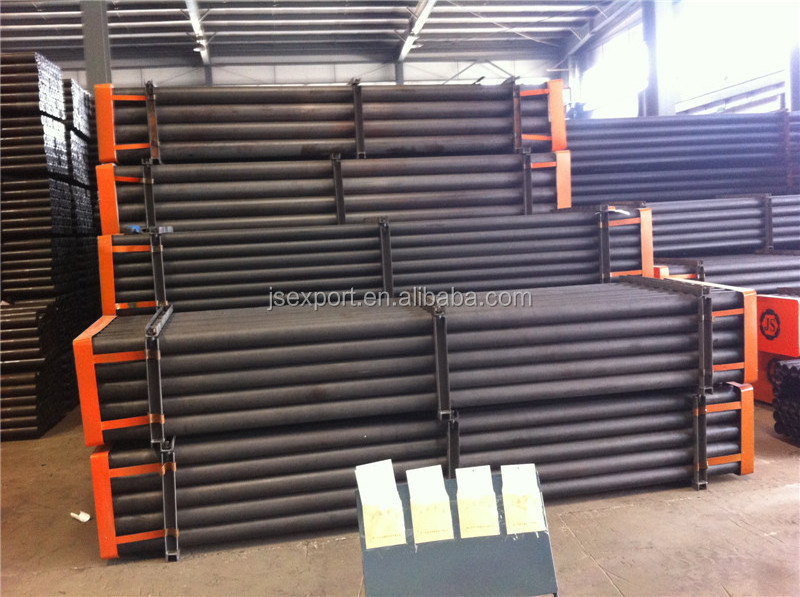

wireline NQ HQ PQ drill rod, NW HW PW casing and tube
wireline NQ HQ PQ drill rod, NW HW PW casing and tube
wireline NQ HQ PQ drill rod, NW HW PW casing and tube
wireline NQ HQ PQ drill rod, NW HW PW casing and tube
wireline NQ HQ PQ drill rod, NW HW PW casing and tube
wireline NQ HQ PQ drill rod, NW HW PW casing and tube
wireline NQ HQ PQ drill rod, NW HW PW casing and tube
wireline NQ HQ PQ drill rod, NW HW PW casing and tube

wireline NQ HQ PQ drill rod, NW HW PW casing and tube

FOB Reference Price: Get Latest Price
≥1 Pieces
US $30
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

heat treatment:
heat treated
thread protect:
grease paint and plastic thread protectors
size:
available in all DCDMA sizes

Quick Details

Place of Origin:
Hebei, China
Brand Name:
JS(Jinshi)
Model Number:
PHD NQ HQ PQ HWT NWT PWT NW HW PW
heat treatment:
heat treated
thread protect:
grease paint and plastic thread protectors
size:
available in all DCDMA sizes
Product Description

wireline NQ HQ PQ drill rod & drillpipe, NW HW PW casing and tube

Casings are often used when there is need to stabilize the drill hole and protect it from leaking, collapsing or water-bearing stratum. Casings are flush joint type and are available in W and WT threads. W casing utilizes the DCDMA W thread form. WT casing is made with DCDMA tubing and tapered thread form.

W casing overview

W casings are made in DCDMA standards and are available in AW, BW, NW, NWA, HW, and PW standards.

Raw materials :
Tangshan Jinshi only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.

Heat treatment control:
Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.

Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.

Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.
