Quick Details
-
Brand Name:
-
HEDY
-
Model Number:
-
PSB-S18CH24V240W-S
-
Output Frequency:
-
N/A
-
Output Current:
-
10A
-
Input Voltage Range:
-
AC100V-140V/180V-240V (selected by switch)
-
Voltage Adj. Range:
-
10.1~13.6V
-
Current Range:
-
0~10A
-
Over Load:
-
110~150% rated output power
-
Ripple & Noise (max.):
-
90-100mVp-p
-
Efficiency(Typ.):
-
82% (VIN=220VAC)
-
Frequency Range:
-
47~63HZ
-
Voltage Accuracy:
-
±5.0%
-
Rated Power:
-
120W
-
AC Current (Typ.):
-
3.2A(185V-240V)
Quick Details
-
Input Voltage:
-
AC100V-140V/180V-240V
-
Output Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HEDY
-
Model Number:
-
PSB-S18CH24V240W-S
-
Output Frequency:
-
N/A
-
Output Current:
-
10A
-
Input Voltage Range:
-
AC100V-140V/180V-240V (selected by switch)
-
Voltage Adj. Range:
-
10.1~13.6V
-
Current Range:
-
0~10A
-
Over Load:
-
110~150% rated output power
-
Ripple & Noise (max.):
-
90-100mVp-p
-
Efficiency(Typ.):
-
82% (VIN=220VAC)
-
Frequency Range:
-
47~63HZ
-
Voltage Accuracy:
-
±5.0%
-
Rated Power:
-
120W
-
AC Current (Typ.):
-
3.2A(185V-240V)
Product Description

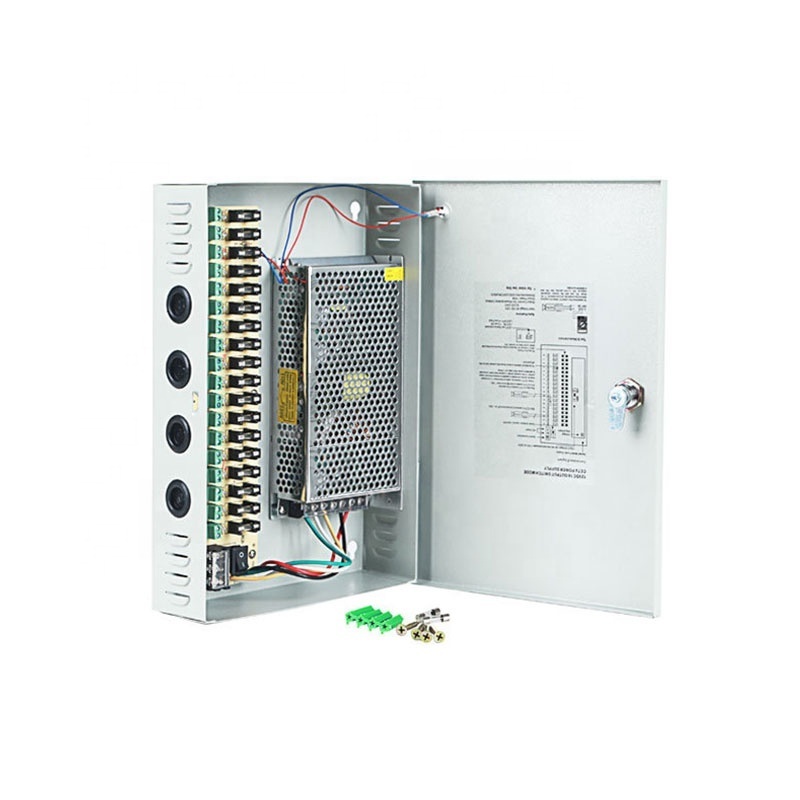

18 channel 24V 240W power supply rainproof metal CCTV 100/240V selected by switch CCTV power supply box
Product feature:
·18 channel output
·Rainproof
·Lockable
·Fuse for each channel
·LED indicator for each channel
·Separate wiring terminal for each powered device
·Each channel has independent output overcurrent protection and short circuit protection
Specification
|
Model
|
|
PSB-S18CH24V240W-S
|
|
|
|
|
|
|||||
|
Output
|
DC Voltage
|
24v
|
|
|
|
|
|
|||||
|
|
Rated Current
|
10A
|
|
|
|
|
|
|||||
|
|
Current Range
|
0~10A
|
|
|
|
|
|
|||||
|
|
Rated Power
|
240W
|
|
|
|
|
|
|||||
|
|
Ripple & Noise (max.)
|
90-100mVp-p
|
|
|
|
|
|
|||||
|
|
Voltage Adj. Range
|
10.1-13.6V
|
|
|
|
|
|
|||||
|
|
Voltage Tolerance
|
±5%
|
|
|
|
|
|
|||||
|
|
Line Regulation
|
±3%
|
|
|
|
|
|
|||||
|
|
Load Regulation
|
±5%
|
|
|
|
|
|
|||||
|
Input
|
Voltage Range
|
AC100-140V or 180-240V(Selected by switch)
|
|
|
|
|
|
|||||
|
|
Frequency Range
|
47~63HZ
|
|
|
|
|
|
|||||
|
|
Efficiency(Typ.)
|
82%(VIN=220VAC)
|
|
|
|
|
|
|||||
|
|
AC Current (Typ.)
|
3.2A(185V-240V)
|
|
|
|
|
|
|||||
|
Protection
|
Over Load
|
110~150% rated output power
Protection type:recovers automatically after removing abnormal load status |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|||||
|
|
Short circuit
|
Protection type:After the short circuit condition is removed, it can be restored by restarting the machine.
|
|
|
|
|
|
|||||
|
Environment
|
Working Temperature
|
-10~+45°C
|
|
|
|
|
|
|||||
|
|
Working Humidity
|
20~90% RH Non-condensing
|
|
|
|
|
|
|||||
|
|
Storage temp.& humidity
|
-20~+85°C, 10~95%RH
|
|
|
|
|
|
|||||
|
|
Vibration
|
10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X、Y、Z axes
|
|
|
|
|
|
|||||
|
Others
|
MTBF
|
≥30000hrs,MIL-HDBK-217F(25℃)
|
|
|
|
|
|
|||||
|
|
Dimension
|
315*220*60 (L*W*H) 1.835kg/pcs
|
|
|
|
|
|
|||||
|
|
Packing
|
10pcs/CTN ; 18.5KG/CTN
|
|
|
|
|
|
|||||
|
|
Accessories
|
Screws; Keys; Expansion tube; Fuse; Manual
|
|
|
|
|
|
|||||
|
|
Configuration
|
2A-24W Fuse for each channel
|
|
|
|
|
|
|||||
