No. of Cells: 120 cells
Dimension: 1769×1052×35 mm
Weight: 20.2 kg
Modules per box: 31pcs
Modules per 40' container: 806pcs
Dimension: 1769×1052×35 mm
Weight: 20.2 kg
Modules per box: 31pcs
Modules per 40' container: 806pcs
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25-years
-
Brand Name:
-
JA Solar
-
Model Number:
-
DEEP BLUE
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35
-
Back Side Glass:
-
High transparency solar glass 2.0mm
-
Front Side Glass:
-
High transparency solar glass 2.0mm
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Weight:
-
27.5kg
-
Cable:
-
4.0mm2, Portrait: 300mm / Landscape: 1200mm
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Application:
-
Residencial,Commercial & Industry
-
Bifaciality:
-
70±5%
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
22%
-
Warranty:
-
25-years
-
Brand Name:
-
JA Solar
-
Model Number:
-
DEEP BLUE
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35
-
Back Side Glass:
-
High transparency solar glass 2.0mm
-
Front Side Glass:
-
High transparency solar glass 2.0mm
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Weight:
-
27.5kg
-
Cable:
-
4.0mm2, Portrait: 300mm / Landscape: 1200mm
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Application:
-
Residencial,Commercial & Industry
-
Bifaciality:
-
70±5%
Product Description
Deep Blue Series
|
Model
|
Cells Type
|
Wattage Range
|
Cells
|
Size(mm)
|
Package
|
|
JAM60S10/MR
|
MonoPERC
158.75x158.75mm
|
330-350W
|
120(6×20)
|
1689×996×35
|
31pcs/pallet
|
|
JAM72S10/MR
|
MonoPERC
158.75x158.75mm
|
400-420W
|
144(6×24)
|
2015×996×35
|
31pcs/Pallet
682pcs/40HQ
|
|
JAM78S10/MR
|
MonoPERC
158.75x158.75mm
|
435-455W
|
156(6×26)
|
2180×996×35
|
27pcs/pallet
|
|
JAM60S20/MR
|
MonoPERC
166×166mm
|
370-395W
|
120(6×20）
|
1769×1052×35
|
31pcs/Pallet
806pcs/40HQ
|
|
JAM72S20/MR
|
MonoPERC
166×166mm
|
445-470W
|
144(6×24)
|
2112×1052×35
|
31pcs/Pallet
682pcs/40HQ
|
|
JAM54S30/MR
|
MonoPERC
182×182mm
|
395-420W
|
108(6×18)
|
1722×1134×30
|
36pcs/Pallet
936pcs/40HO
|
|
JAM72S30/MR
|
MonoPERC
182×182mm
|
530-555W
|
144(6×24)
|
2278×1134×35
|
31pcs/Pallet
620pcs/40HQ
|
|
JAM78S30/MR
|
MonoPERC
182×182mm
|
580-605W
|
156(6×26)
|
2465x1134x35
|
31pcs/Pallet
496pcs/40HQ
|
JAM60S20 370-395/MR
Power Range: 370-395W
Power Range: 395-420W
No. of Cells: 108 cells
Dimension: 1722×1134×30 mm
Weight: 21.5 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimension: 1722×1134×30 mm
Weight: 21.5 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

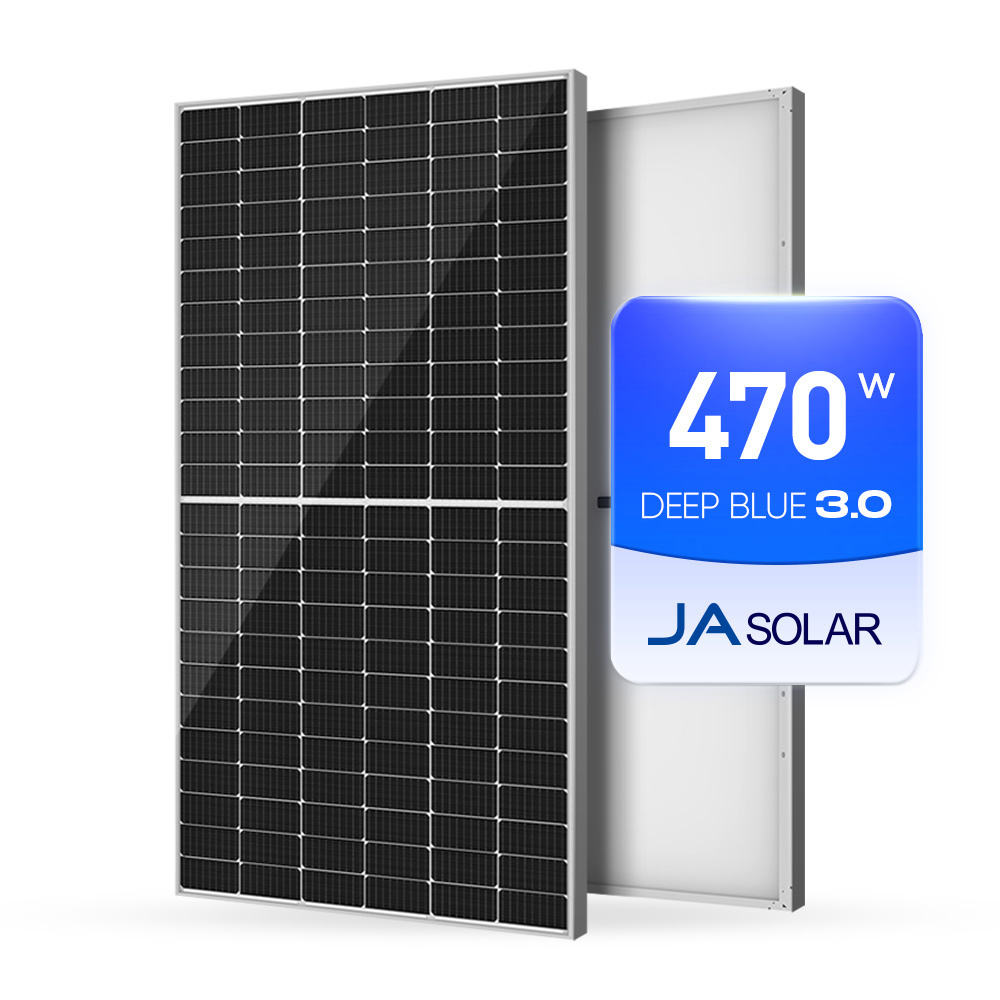

JAM72S20 445-470/MR
Power Range: 445-470W
No. of Cells: 144 cells
Dimension: 2112x1052x35 mm
Weight: 24.5 kg
Modules per box: 31pcs
Modules per 40' container: 682pcs
Dimension: 2112x1052x35 mm
Weight: 24.5 kg
Modules per box: 31pcs
Modules per 40' container: 682pcs
JAM72S30 530-555/MR
Power Range: 530-555W
No. of Cells: 144 cells
Dimension: 2278×1134×35mm
Weight: 28.1 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
Dimension: 2278×1134×35mm
Weight: 28.1 kg
Modules per box: 31pcs
Modules per 40' container: 620pcs
