Quick Details
-
Color:
-
Customized
-
Certification:
-
CE & ISO 9001
-
Driving Range:
-
80KM
-
Max. Speed:
-
30km/h
-
Climbing Ability:
-
20 Degree
-
Seats:
-
2
-
Battery:
-
8V145AH * 6 Lead Acid Battery
-
Year:
-
2018
Quick Details
-
Brand Name:
-
ZYCAR
-
Place of Origin:
-
Tianjin, China, Tianjin,China
-
Product Name:
-

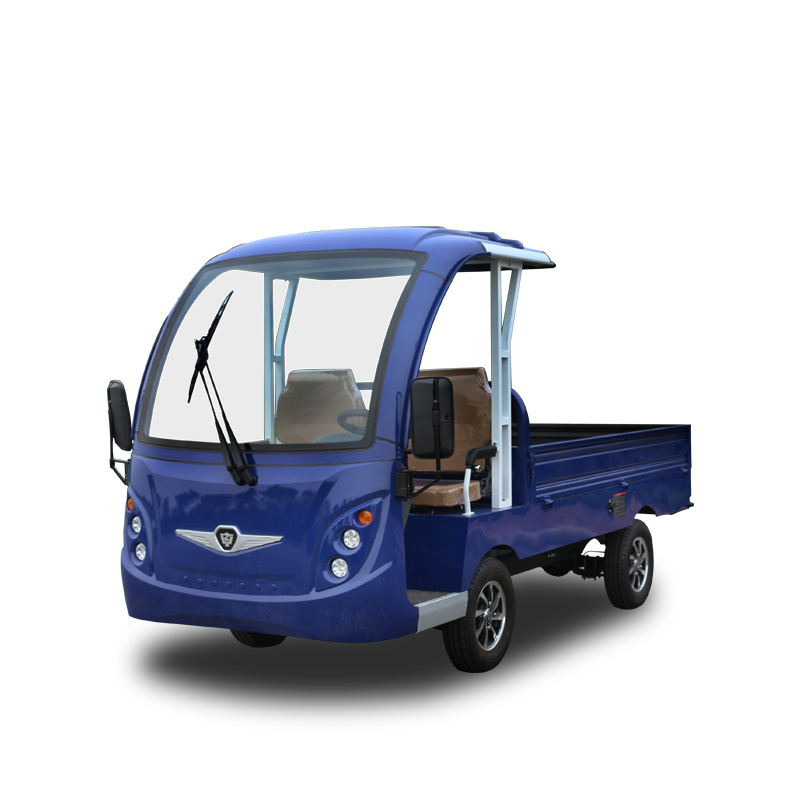

Mini electric pickup truck for sale
-
Color:
-
Customized
-
Certification:
-
CE & ISO 9001
-
Driving Range:
-
80KM
-
Max. Speed:
-
30km/h
-
Climbing Ability:
-
20 Degree
-
Seats:
-
2
-
Battery:
-
8V145AH * 6 Lead Acid Battery
-
Year:
-
2018
|
Qty/20′ ( assembled) |
1Unit |
|
Qty/40′( assembled) |
3Units |
|
Performance |
|
|
Passenger Capacity |
2 Seats |
|
Max.Speed |
28-30km/h(adjustable) |
|
Driving Range |
70-80km |
|
Climbing Ability |
<15% |
|
Braking Distance |
<4.5 |
|
Mini Turning Radius |
5.5m |
|
Min.Clearance |
160mm |
|
Recharge Time |
8-10hours |
|
Dimension |
|
|
L*W*H |
3880*1500*2070mm |
|
F/R Tread |
1220/1190mm |
|
Axle Distance |
2005mm |
|
Net Weight |
880kgs |
|
Max Loading |
1000kgs |
|
Cargo box size (L*W*H) |
2500mm*1400mm *300mm |
|
Standard Configurations |
|
|
Motor |
48V/ 5 KW AC motor |
|
Controller |
Curtis controller 1232(400A) |
|
Battery |
Huge capacity deep cycle lead-acid battery 6V/piece 8 pieces |
|
Body & Roof |
Inj e ction molding modeling design separable replacement |
|
Windshield |
Laminated Glass |
|
Seats |
Sponge& artificial Leather |
|
Rear View Mirror |
2 pcs |
|
Bumper |
Front and Rear bumper |
|
Tire |
Auto tyre 155R12C,aluminium hub |
|
Chassis |
High strength structural steel |
|
Steering |
Gear steering+ auto backlash compensation |
|
Braking System |
Front disk +rear drum ,double circuit hydraulic brake+ hand brake |
|
Front Axle |
Mcpherson independent suspension Spiral spring + cylinder hydraulic shock absorb |
|
Rear Axle |
Strength 16.7 Integral rear axle, Non independent suspension, Leaf spring, cylinder type hydraulic shock absorb |
|
Lighting System |
Combination front light (turning light, high beam, dipped light) rear light(turning light, brake light) driving & reverse buzzer. |
|
Charger |
On board charger |
|
Dashboard |
Plastic molding instrument board with volt meter, ammeter, electrometer, speedometer, electricity indicator , electric key switch, radio, video, USB plug, storage box , cup holder |
Q1. What is your terms of packing?
A: Generally, we pack out goods in containers by iron frame. If you have special requirement we can follow.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: It takes about 30 days after receiving your advance payment.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: Since this product is high-value product, we can accept sample by discount. Should the production be large in quantity, we may even consider re-funding for the sample.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
