Quick Details
-
Weight (KG):
-
385 KG
-
Power (kW):
-
4kw
-
Applicable Industries:
-
Furniture Factory
-
Planer Working tables:
-
400x1800mm
-
Cutterblock diameter:
-
70mm
-
Cutterblock rotation speed:
-
5700RPM
-
N. of knives:
-
3 Cutters
-
Thicknesser Working table:
-
400x760mm
-
Max. working height:
-
220mm
-
Min. working height:
-
4mm
-
Mortiser Working table:
-
250x500mm
-
Longitudinal stroke:
-
205mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KINGISO
-
Machine Type:
-
Wood Combination Machine
-
Weight (KG):
-
385 KG
-
Power (kW):
-
4kw
-
Applicable Industries:
-
Furniture Factory
-
Planer Working tables:
-
400x1800mm
-
Cutterblock diameter:
-
70mm
-
Cutterblock rotation speed:
-
5700RPM
-
N. of knives:
-
3 Cutters
-
Thicknesser Working table:
-
400x760mm
-
Max. working height:
-
220mm
-
Min. working height:
-
4mm
-
Mortiser Working table:
-
250x500mm
-
Longitudinal stroke:
-
205mm
Products Description
|
Planer
|
Unit
|
400c
|
|
Working tables
|
mm
|
400x1800
|
|
Cutterblock diameter
|
mm
|
70
|
|
Cutterblock rotation speed
|
r.p.m
|
5700
|
|
N. of knives
|
n°
|
3
|
|
knives dimensions
|
mm
|
400x20x3
|
|
Max table adjustement
|
mm
|
4
|
|
|
|
|
|
Thicknesser
|
Unit
|
400c
|
|
Working table
|
mm
|
400x760
|
|
Feed speed
|
m/1'
|
7
|
|
Max. working height
|
mm
|
220
|
|
Min. working height
|
mm
|
4
|
|
Cutterblock rotation speed
|
r.p.m.
|
5700
|
|
Max. cutting depth
|
mm
|
4
|
|
|
|
|
|
Mortiser
|
Unit
|
400c
|
|
Working table
|
mm
|
250x500
|
|
Longitudinal stroke
|
mm
|
205
|
|
Trasversal stroke
|
mm
|
95
|
|
Vertical stroke
|
mm
|
90
|
|
Churck
|
mm
|
16
|
|
Churck rotation speed
|
r.p.m.
|
5700
|
Feature:

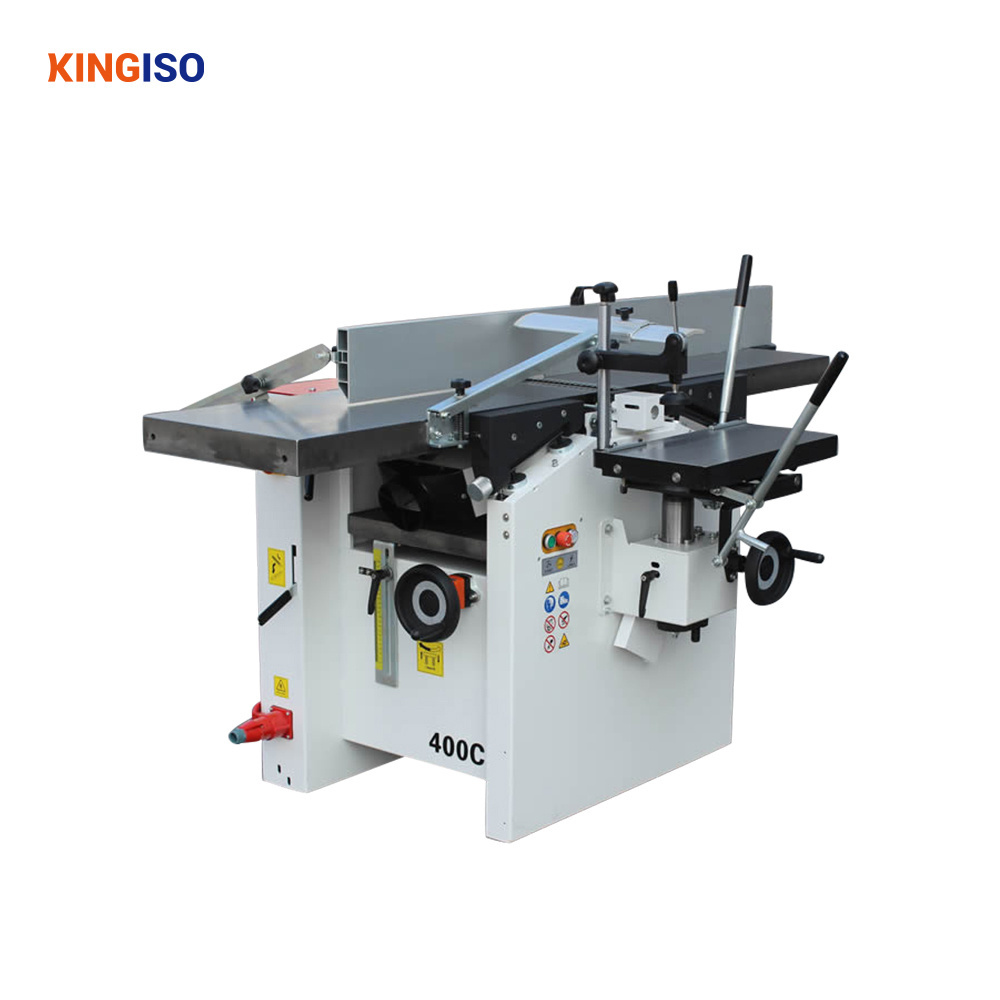

The 400C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory
and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron
construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply
sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction
means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs.
The 400C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory
and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron
construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply
sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction
means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs.
