Quick Details
-
Weight:
-
7500 KG
-
Mobility:
-
crawler
-
Product name:
-
Water Well Drilling Rig Machine
-
Keyword:
-
Water Well Drilling Rig
-
Drill rod length:
-
3m/6m
-
Drill pipe diameter:
-
76/89mm
-
Engine:
-
can be choose
-
Walking speed:
-
2.5kw/h
-
Color:
-
Customer Required
-
Application:
-
water well drilling
-
Air consumption:
-
23m3/min
-
Working Pressure:
-
1.7-3.3Mpa
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Dimension(L*W*H):
-
4200*1900*2600mm
-
Weight:
-
7500 KG
-
Mobility:
-
crawler
-
Product name:
-
Water Well Drilling Rig Machine
-
Keyword:
-
Water Well Drilling Rig
-
Drill rod length:
-
3m/6m
-
Drill pipe diameter:
-
76/89mm
-
Engine:
-
can be choose
-
Walking speed:
-
2.5kw/h
-
Color:
-
Customer Required
-
Application:
-
water well drilling
-
Air consumption:
-
23m3/min
-
Working Pressure:
-
1.7-3.3Mpa
Product Description
Note：
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific price,please
contact us or send us inquiry,then we can give you detail quotation list

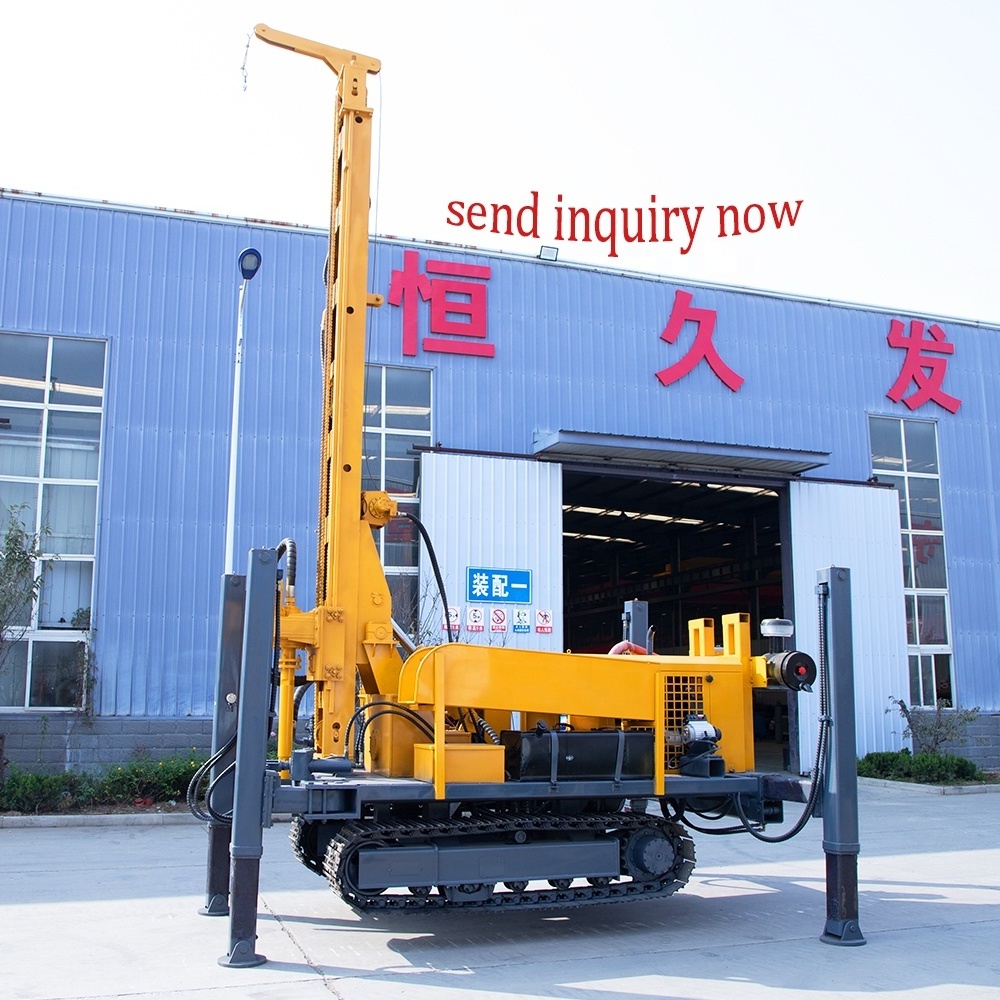

Hengwang HQZ series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.
* Drilling depth: 300m * Drilling diameter: 140-350mm
* Engine Power: 85Kw
* Competive Price
* Site Instrcution and Installation
* Professtional After-Sales Team
* CE, BV, TUV, ISO
crawler 350m pneumatic Borehole Deep deep water well drilling rig for sale
|
Model
|
HQZ-320L
|
|
Total Weight（T）
|
7.5/9
|
|
Dimensions（mm）
|
4200*1900*2600
|
|
Drilling Diameter（mm）
|
140-350
|
|
Drilling Depth（m）
|
320
|
|
One-time Advance Length of the Drill（mm）
|
3000/6000
|
|
Walking Speed（Km/h）
|
2.5
|
|
Climbing Ability（max）
|
30
|
|
Min. Ground Clearance（mm）
|
230
|
|
Working Air pressure（Mpa）
|
1.7-3.3
|
|
Air Consumption（m³/min）
|
23
|
|
Main Power（kw）
|
85/Yuchai
|
|
Rotation（rpm）
|
55-115
|
|
Rotary Torque（Nm）
|
8500-10000
|
200m depth Rock Drilling Machine /bore hole drilling rig
Application
This drilling water well drilling rig machine use should be with air compressor,main drill rock geology,if your geology has some soil,also can add one mud pump,we are factory for drilling rig,so we accept all kinds of customized design,if you need it,please contact us.
crawler 350m pneumatic Borehole Deep deep water well drilling rig for sale
General application, any special requirements, please consult us.
Customer Feedback
The following images are from
customer feedback
(Vietnam, Thailand, Chile, Mexico, South Africa, Philippines, Malaysia, Colombia,etc.), We also have a lot of customer feedback videos, if you are interested, contact us
Packaging & Shipping
1 Set Shipped with 20GP;
crawler 300 meter DTH pneumatic Borehole Deep Hole Drilling Water Well Drilling Rig Machine
Whole set with air compressor needs a 40GP;
