Quick Details
-
Positioning Accuracy (mm):
-
0.6 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
800 mm
-
Repeatability (X/Y/Z) (mm):
-
0.6 mm
-
Spindle Motor Power(kW):
-
21
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WEHO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3000*2200*2100mm
-
Power (kW):
-
19.5
-
Weight (KG):
-
1900
-
After-sales Service Provided:
-
1 year for mortise and tenon machine
-
Main spindle:
-
3pcs
-
Max. Mortising length:
-
100*3200mm
-
Max.mortise Depth:
-
250mm
-
Air pressure:
-
0.6mpa
-
Machine size:
-
3100x2000x1900mm
-
Control CNC:
-
Specilazied program for mortising.
-
Application:
-
wood chairs, wood table, bed, wood sofa ect
-
Drilling function:
-
Available
-
Power(W):
-
wood chairs table bed sofa
Quick Details
-
Working Table Size(mm):
-
1300*800
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
3000 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.6 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
800 mm
-
Repeatability (X/Y/Z) (mm):
-
0.6 mm
-
Spindle Motor Power(kW):
-
21
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WEHO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3000*2200*2100mm
-
Power (kW):
-
19.5
-
Weight (KG):
-
1900
-
After-sales Service Provided:
-
1 year for mortise and tenon machine
-
Main spindle:
-
3pcs
-
Max. Mortising length:
-
100*3200mm
-
Max.mortise Depth:
-
250mm
-
Air pressure:
-
0.6mpa
-
Machine size:
-
3100x2000x1900mm
-
Control CNC:
-
Specilazied program for mortising.
-
Application:
-
wood chairs, wood table, bed, wood sofa ect
-
Drilling function:
-
Available
-
Power(W):
-
wood chairs table bed sofa

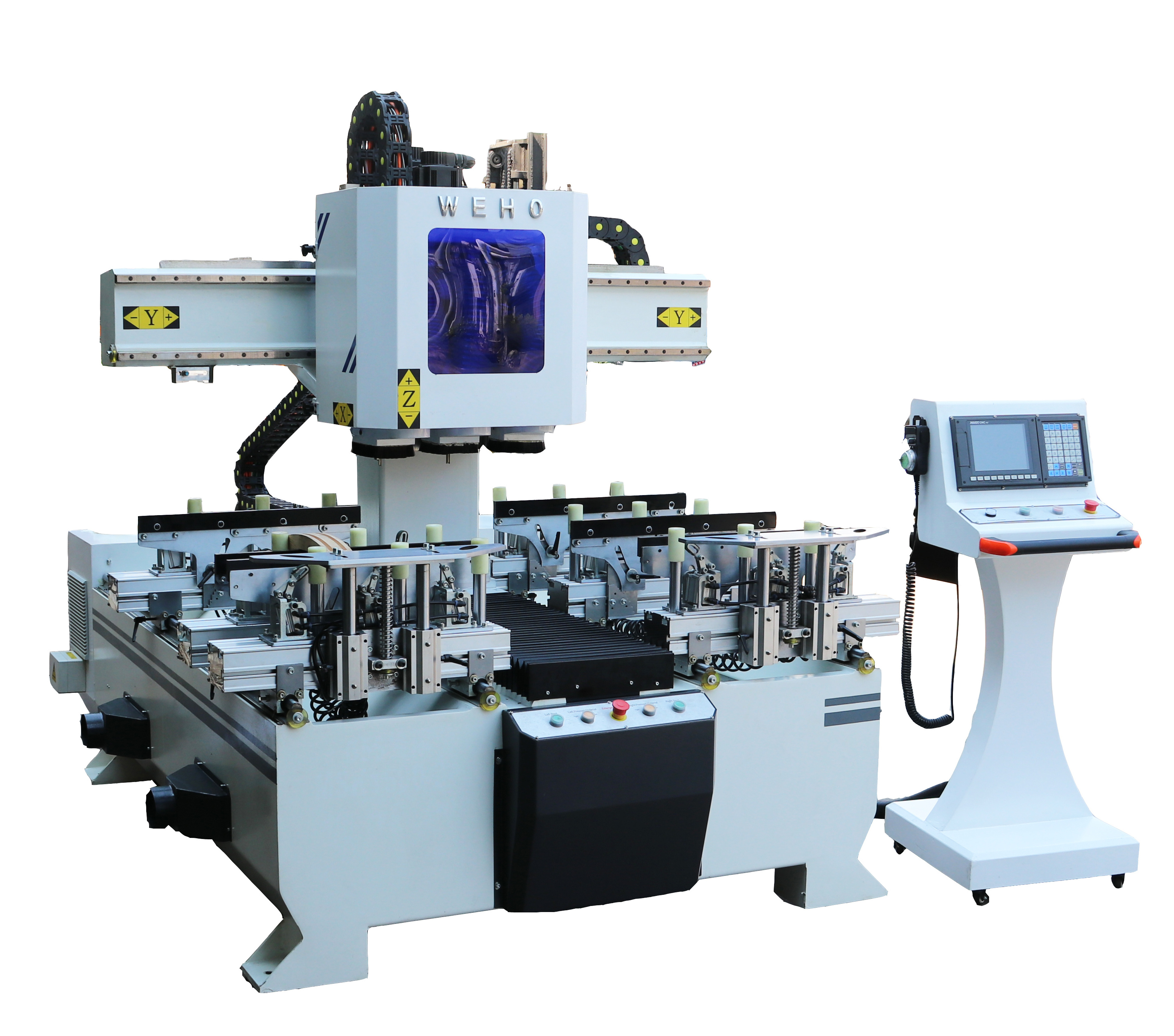

Chairs Doors woodworking Drill Joint Mortise And Tenon Machine
mortise and tenon machine is ideal for high speed slot milling on straight and curved wood.
This machine is designed with 3 spindles, allowing for machining 3 pieces of wood simultaneously.
Equipped with an advanced CNC controller, the machine makes slot milling operations more flexible and easy.
Famous brand spindle motor, 3.7kw, strong power, suitable for hard wood, red wood mortising.
Spindles are simultaneously controlled, controlled through frequency inverter.
Powerful CNC controller permits slot milling to be performed with ease and helps to dramatically increase throughput.
|
SPECIFICATIONS For mortise and tenon machine
|
|||
|
CNC Multi-Spindle Slot Milling machine
|
Max working length
|
mm
|
1300
|
|
Max Mortising depth
|
mm
|
250
|
|
|
Max drilling depth
|
mm
|
100mm
|
|
|
Main performance parameters
|
Spindle speed
|
m/min
|
18000rpm
|
|
Spindle motor
|
kw
|
3.7x3pcs
|
|
|
Total power
|
HP
|
21
|
|
|
Machine size
|
Dimensions
|
mm
|
3300x2000x1900
|
|
Weight
|
KG
|
1800
|
|
|
Air pressure
|
kg/m2
|
6
|
|
X,Y,Z-axis movements are driven by servo motors with high speed and high positioning accuracy.
X,Y,Z-axis are transmitted through ball screws.
Chairs Doors woodworking Drill Joint Mortise And Tenon Machine
X,Y,Z-axis slideways and clamping mechanism slideways are fitted with linear motion guides.
With the changeable spindle design, no secondary machining is required. Two slot widths can be machined at a time. This not only dramatically shortens workpiece handling time by the operator.
mortise and tenon drill machine, Applicable for straight and curved wood.
Suitable for high speed slot milling for kitchen cabinet frames, chair legs and chair legs, etc.
mortise and tenon joint machine, perfect machine for chairs, baby beds, wood sofa and similar national wood furniture manufacture.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
