Quick Details
-
Brand Name:
-
Yisite
-
Model Number:
-
FMP-3000S
-
Disc Diameter:
-
Standard 250mm
-
Working palte speed:
-
50-1000rpm( stepless speed)
-
Grinding polishing head speed:
-
5-150r/min (stepless speed )
-
Grinding polishing head pressure:
-
5-60N
-
Working gas source pressure:
-
0~0.5Mpa
-
Sample preparation time:
-
0-9999S
-
Voltage:
-
Single phase 220V, 50/60Hz
-
Motor power:
-
1.1KW
-
Dimensions:
-
980*920*470mm
-
Weight:
-
98kg
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yisite
-
Model Number:
-
FMP-3000S
-
Disc Diameter:
-
Standard 250mm
-
Working palte speed:
-
50-1000rpm( stepless speed)
-
Grinding polishing head speed:
-
5-150r/min (stepless speed )
-
Grinding polishing head pressure:
-
5-60N
-
Working gas source pressure:
-
0~0.5Mpa
-
Sample preparation time:
-
0-9999S
-
Voltage:
-
Single phase 220V, 50/60Hz
-
Motor power:
-
1.1KW
-
Dimensions:
-
980*920*470mm
-
Weight:
-
98kg

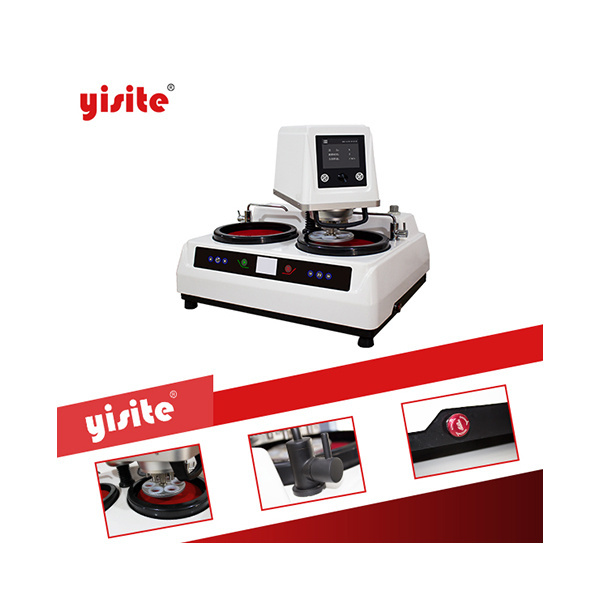

Double disc metallographic grinding polishing machine
Description:
The Double disc pneumatic clamping automatic metallographic grinding and polishing machine adopts double discs, which is suitable for rough grinding, fine grinding and polishing of metallographic samples.
This machine has 200 r/min, 600 r/min, 800r/min, 1000 r/min ( four fixed speed), and can also steplessly regulate from 50 r/min to 1000 r/min. Therefore, the machine has a wider applicability and is a device used by the user to make metallographic samples.
This machine is equipped with a cooling device that cools the sample during grinding and polishing to prevent damage to the metallurgical structure due to overheating of the sample.
The machine is easy to use, safe and reliable, and is an ideal sample preparation equipment for factories, research institutes and universities and colleges.
Character:
1. Grinding and polishing disc diameter: φ250mm (customizable φ200mm, φ300mm).
2. It can simultaneously polish 6 samples with a diameter of 30mm.
3. Single point pneumatic loading, no need to clamp the sample.
4. Multi-purpose of one machine: one machine realizes the whole process of coarse grinding, fine grinding, rough casting and fine polishing of metallographic samples.
5. Special frequency conversion speed control system with 200 r/min, 600 r/min, 800r/min, 1000 r/min ( four fixed speed) and stepless speed regulation.
6. Stepless speed regulation: the rotation speed of the grinding disc is from 0 r/min to 1000 r/min, the eight-speed programming, automatic shutdown.
7. Forward and reverse any adjustment.
8. Optional magnetic anti-adhesive disc can complete all the steps of roughing, fine grinding, roughing and fine polishing of various samples.
9. Beautiful appearance, sturdy and durable.
Technical parameter:
1. Working plate speed: 50 -1 00 0r/min
2. Working plate diameter: Standard 250mm (customizable φ 200mm, φ 300mm)
3. Grinding polishing head speed : 5-150r/min(stepless speed)
4. Grinding polishing head pressure :5-60N
5. Working gas source pressure: 0 ~ 0.5Mpa
6. Sample preparation time 0-9999S
7. Voltage: Single phase 220V, 50/60Hz
8. Motor power: 1.1KW
9. Dimensions: 980*920*470 mm(L * W * H)
10. Weight: 98 kg
